Videon - 'VersaStreamer SDI'
SDI Streaming Encoder(HDMI/SDI)
SDI Streaming Encoder

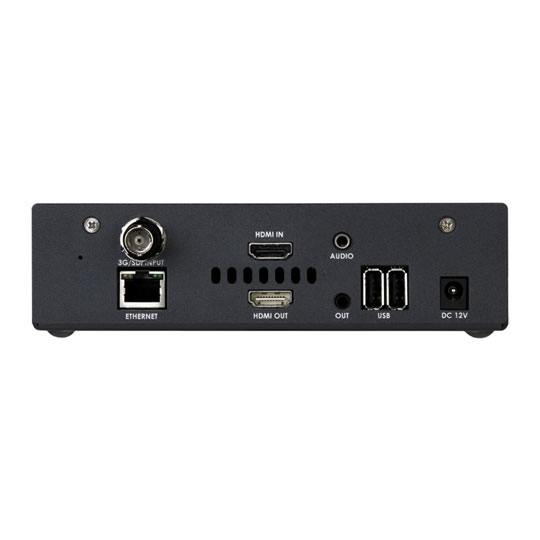

Simultaneously stream up to 1080p H.264 video to three web destinations such as Facebook, YouTube, Twitch, Amazon Web Services, and others with the VersaStreamer SDI Streaming Encoder from Videon. The VersaStreamer has one HDMI input and one SDI input with a maximum resolution of 1080p60, it encodes up to 1080p30 for RTMP streaming, and outputs up to 1080p60 over its HDMI output.
The compact encoder features a 3.5mm audio input and supports embedded HDMI/SDI audio up to 320 kb/s, 48 kHz. It can record the stream over its two USB 2.0 ports using external USB media, while it streams over the network via 10/100/1000 Ethernet.
The unit is managed by a simple web interface, and it also supports API configuration for third-party integration. On the front of the unit, a Stream action button allows you to begin your stream instantly, rather than having to connect to the web interface first.
key features
• Stream Broadcast Quality H.264 Video
• HDMI/SDI Input, HDMI Output
• Three Simultaneous RTMP Streams
• Up to 1080p30, 30 Mb/s Encoding
Reach your Audience
on each and Every Online PlatformInteract with all of your viewers by simultaneously streaming directly to your choice of up to three web (RTMP) destinations like Facebook, YouTube, Twitch, Amazon Web Services, and more!
Record your Streams to USB
for Immediate UseUsing a standard USB stick, you can record a local backup while you are streaming that’s available as soon as your stream concludes. You can even auto-upload your recorded file to an FTP server for additional redundancy.
Reliable, Versatile, Easy to Use
upto 1080p60 resolutionVersaStreamer SDI is now based on the Qualcomm SnapDragon 820 SoC. It is an HEVC and H.264 encoder with video resolution up to 1080p60.
Ready for the Coming Changes to Streaming
preparedVideo platforms are already moving to 4K and the bandwidth-saving HEVC codec. With VersaStreamer 4K, you can rest assured that your encoder will be compatible with the next generation of streaming.
The Tech Spec
| Features | Specification | Video Input Connectors | 1 x HDMI v1.4a 1 x BNC 3G-SDI |
|---|---|
| Video Output Connector | 1 x HDMI v1.4a |
| Audio Input | 1 x 1/8" / 3.5 mm Analog Embedded HDMI/SDI |
| External Recording Output | 2 x USB 2.0 |
| Network Connectors | 1 x RJ45 10/100/1000 Ethernet |
| Streaming Protocols | 3 x RTMP/RTMPS Simultaneous RTSP 2 x Unicast (RTP over UDP, Raw UDP) Simultaneous Multicast (RTP over UDP, Raw UDP) HLS |
| Recording | MP4, MPEG-TS via USB sFTP/FTP Upload |
| Video Codec | H.264, Baseline, Main, High |
| Bit Rate | 250 kb/s to 30 mb/s |
| Bit Rate Control | Variable, Constant |
| Audio Encoding | Format: MPEG-4 AAC-LC in ADTS Rates: 64, 96, 128, 192, 256, 320 kb/s Encode Sampling Frequency: 32, 44.1, 48 kHz |
| Input Resolutions | 1080p: 60, 59.94, 30, 29.97, 25 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 |
| Encoding Resolutions | 1080p: 30, 29.97, 25 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 540p, 480p, 360p, 270p, 180p: Same as Source |
| Output Resolutions | 1080p: 60, 59.94, 30, 29.97, 25 1080i: 60, 59.94, 50 720p: 60, 59.94, 50 576p50 480p: 60, 59.94 |
| Power Input | 12 VDC, > 15 W |
| Dimensions | 1.8 x 6.5 x 6.2" / 4.6 x 16.5 x 15.7 cm |
| Weight | 1.12 lb / 508 g |
