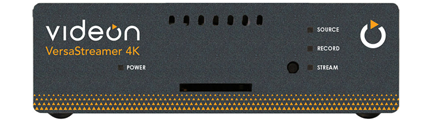

Videon - 'VersaStreamer 4K'
Streaming Encoder (3G-SDI/HDMI)
Encode and Input up to 4K30, 30 Mb/s
Simultaneously stream up to UHD 4K30 H.265/HEVC video to three web destinations such as Facebook, YouTube, Twitch, Amazon Web Services, and others with the VersaStreamer 4K Streaming Encoder from Videon. The VersaStreamer has one HDMI input and one 3G-SDI input with a maximum resolution of 4K30.
The compact encoder features a 3.5mm audio input and supports embedded HDMI audio up to 512 kb/s, 48 kHz. It can record the stream to an SD card via its built-in card slot, or it can record over its USB 3.0 port to an external USB drive while it streams to the network via 10/100/1000 Ethernet. The unit is managed by a simple web interface, and it also supports API configuration for third-party integration.
1x 1/8"Audio Input
1x USB 3.0Recording Output
1x SlotSD Card
at a glance
• Input and encode H.265/HEVC video up to 4K30 at a maximum bit rate of 30 Mb/s
• Use the REST API to integrate with third-party controllers
• Simple web management interface
• MPEG-4 AAC-LC audio encoding
Reach your Audience
on each and Every Online PlatformInteract with all of your viewers by simultaneously streaming directly to your choice of up to three web (RTMP) destinations like Facebook, YouTube, Twitch, Amazon Web Services, and more!
Record your Streams to USB
for Immediate UseUsing a standard USB stick, you can record a local backup while you are streaming that’s available as soon as your stream concludes. You can even auto-upload your recorded file to an FTP server for additional redundancy.
Reliable, Versatile, Easy to Use
upto 1080p60 resolutionVersaStreamer SDI is now based on the Qualcomm SnapDragon 820 SoC. It is an HEVC and H.264 encoder with video resolution up to 1080p60.
Ready for the Coming Changes to Streaming
preparedVideo platforms are already moving to 4K and the bandwidth-saving HEVC codec. With VersaStreamer 4K, you can rest assured that your encoder will be compatible with the next generation of streaming.
The Tech Spec
| Features | Specification | Video Input Connectors | 1 x HDMI v1.4a 1 x BNC 3G-SDI |
|---|---|
| Audio Input | 1 x 1/8" / 3.5 mm Analog Embedded HDMI |
| External Recording Output | 1 x USB 3.0 |
| SD Card | 1 x SD Card Slot for Recording |
| Network Connectors | 1 x RJ45 10/100/1000 Ethernet, PoE Support |
| Streaming Protocols | 3 x RTMP/RTMPS Simultaneous RTSP 2 x Unicast (RTP over UDP, Raw UDP) Simultaneous Multicast (RTP over UDP, Raw UDP) HLS |
| Recording | MP4, MPEG-TS via USB or SD Card sFTP/FTP Upload |
| Video Codec | H.265/HEVC, H.264, Baseline, Main, High |
| Bit Rate | 500 kb/s to 30 Mb/s |
| Bit Rate Control | Variable, Constant |
| Audio Encoding | Format: MPEG-4 AAC-LC in ADTS Rates: 512, 384, 320, 256, 192, 128, 96, 64 kb/s Encode Sampling Frequency: 48, 44.1, 32 kHz |
| Input Resolutions | 3840 x 2160p: 30, 29.97, 25, 24, 23.98 1080p: 60, 59.94, 30, 29.97, 25, 24, 23.98 720p: 60, 59.94, 50 576p: 50 480p: 60, 59.94 |
| Encoding Resolutions | 3840 x 2160p: 30, 29.97, 25, 24, 23.98 1080p: 60, 59.94, 50, 30, 29.97, 25, 24, 23.98 720p: 60, 59.94, 50 576p: 50 480p: 60, 59.94 540p, 360p, 270p, 180p: Same as Source |
| Power Input | 12 VDC, 8 W IEEE 802.3af Power over Ethernet |
| Dimensions | 1.5 x 5 x 4.2" / 3.8 x 12.7 x 10.7 cm |
| Weight | 1 lb / 453 g |
