Scan code: LN82145 Manufacturer code: UAP-AC-M-PRO

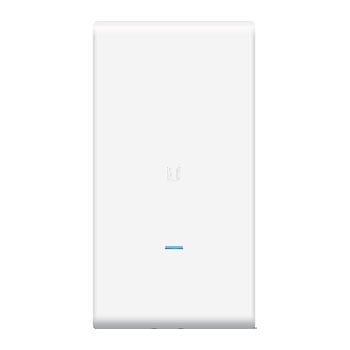

Ubiquiti UniFi Outdoor Mesh Pro Dual Band PoE Access point

Ubiquiti UniFi AC-M Mesh Pro Access Point, Dual-Band, 3 x Antennas, GbE, PoE, 802.11ac

FREE 3pin Cloverleaf Power Cable
Thumbnail 1 : Ubiquiti UniFi Outdoor Mesh Pro  Dual Band PoE Access point Thumbnail 2 : Ubiquiti UniFi Outdoor Mesh Pro  Dual Band PoE Access point Thumbnail 3 : Ubiquiti UniFi Outdoor Mesh Pro  Dual Band PoE Access point Thumbnail 4 : Ubiquiti UniFi Outdoor Mesh Pro  Dual Band PoE Access point
Scan code: LN82145 Manufacturer code: UAP-AC-M-PRO
£186.98
From £16.79 / month (APR 14.9%)
Monthly Payment: £32.45
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £186.98
Total inc. interest: £194.67
Monthly Payment: £16.79
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £186.98
Total inc. interest: £201.42
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 20th Dec 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The Ubiquiti UniFi AC Outdoor Mesh Pro Wifi Access Point (UAP-AC-M-PRO) offers powerful coverage with its built-in dual-band omni-directional antennas. Outdoor ranges of up to 183m (600 feet) are possible, as well as simultaneous dual-band coverage via the 802.11ac enabled 3x3 MIMO connection, offering speeds of up to 1300 Mbps on the 5GHz band and up to 450 Mbps on the 2.4 GHz band.

The UAP-AC-M-PRO has multiple power options, enabling users to power via an 802.3af PoE compatible switch and can be powered over 24V passive PoE, or a 802.3af Alternative A compatible switch, or the included Gigabit PoE adapter. It also features dual Gigabit Ethernet ports, the main port is for data transfer and the second port is designed for bridging.

Weather-Resistant Form Factor
The enclosure of the UniFi AC Mesh Pro AP is designed to withstand the elements, making it ideal for outdoor deployment.

LED Indicators
Unique provisioning LED provides administrator location tracking and alerts for each device.

Powerful Coverage
Built-in dual-band omni-directional antennas deliver expanded range coverage outdoors.

Mounting Flexibility
The UniFi AC Mesh Pro AP can be mounted on a wall or pole. (All accessories are included.)

Dual Gigabit Ethernet Ports
The primary port is for data and PoE; the secondary port is for bridging.

Multiple Power Options
You can power the UniFi AC Mesh Pro AP with an 802.3af compatible switch, UniFi PoE Switch, or the included Gigabit PoE adapter.

UniFi Controller
Use the UniFi Controller to provision thousands of UniFi APs, map out networks, quickly manage system traffic, and provision additional UniFi APs.

RF Map
Use the RF map to monitor and analyze radio frequencies for optimal AP placement, configuration, and troubleshooting.

Powerful RF Performance Features
Advanced RF performance and configuration features include spectral analysis, airtime fairness, and band steering.

Detailed Analytics
Use the configurable reporting and analytics to manage large user populations and expedite troubleshooting.

Wireless Uplink
Wireless Uplink functionality enables wireless connectivity between APs for extended range. One wired UniFi AP uplink supports up to four wireless downlinks on a single operating band, allowing wireless adoption of devices in their default state and real-time changes to network topology.
For devices that support Plug & Play Mesh, this functionality is extended to allow multi-hop wireless uplink - so wirelessly uplinked APs can support uplink to other wirelessly uplinked APs.

Guest Portal/Hotspot Support
Easy customization options for Guest Portals include authentication, Hotspot setup, and the ability to use your own external portal server. Use UniFi's rate limiting for your Guest Portal/Hotspot package offerings. Apply different bandwidth rates (download/upload), limit total data usage, and limit duration of use.
All UniFi APs include Hotspot functionality:
• Built-in support for billing integration using major credit cards.
• Built-in support for voucher-based authentication.
• Built-in Hotspot Manager for voucher creation, guest management, and payment refund.
• Full customization and branding of Hotspot portal pages.

Multi-Site Management
A single cloud-based UniFi Controller can manage multiple sites: multiple, distributed deployments and multi-tenancy for managed service providers. Each site is logically separated and has its own configuration, maps, statistics, guest portal, and admin read/write and read-only accounts.

WLAN Groups
Manage flexible configurations of large deployments. Create multiple WLAN groups and assign them to an AP's radio. Features • 2.4 GHz Speed 450 Mbps
• 2.4 GHz MIMO 3 x 3
• 5 GHz Speed* 1300 Mbps
• 183 m (600 ft) Range
• PoE Mode 802.3af PoE
• VLAN 802.1Q
• Advanced QoS Per-User Rate Limiting
• Guest Traffic Isolation Supported
• WMM Voice, Video, Best Effort, and Background
• Concurrent Clients 200+
Specifications
Networking, Connectivity & Ports
Model UniFi AC Outdoor Mesh Pro
Form-Factor
Device Type Wireless Access Point
Compatible Internet Connections
Network Connectivity
  • 10/100/1000
  • Wireless LAN
Network Ports 1 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Other Connectors N/A
USB Applications
Wired Protocols IEEE 802.3
Total LAN Connections 0
Total WAN Connections
64 Bytes L3 Forwarding Performance Unknown pps
512+ Bytes L3 Forwarding Performance unknown
Wireless
Wireless Speed 1750 (450+1300) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power 8 dBi
Antenna 3 x Dual-Band Antennas
Core Features
Features Adaptive QoS
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x Reset Button
OS Support
  • Windows 10
  • Windows 7
  • Windows 8
Max. Power Consumption 9 W
PSU Type
Security & VPN
Security Protocols
  • AES
  • TKIP
  • WEP
  • WPA-Enterprise
  • WPA-PSK
  • WPA2
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions 181.2 x 343.2 x 60.2 mm (WxHxD)
Weight 633 g
