Product Overview

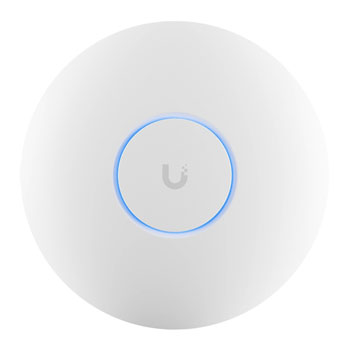

Ubiquiti U7 Pro Max

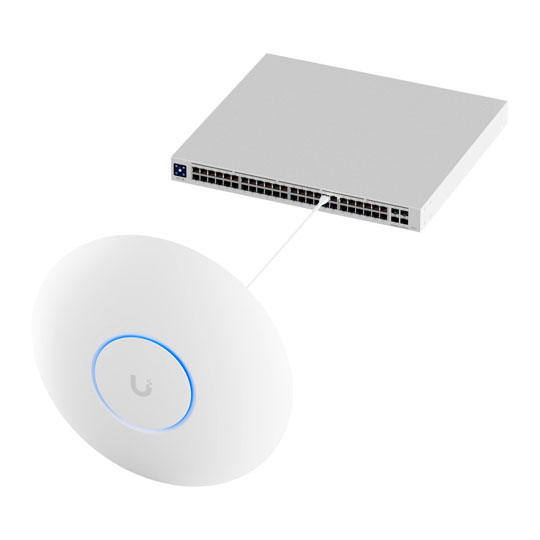

The Ubiquiti U7 Pro Max is a top-of-the-line networking device designed to deliver unparalleled performance and reliability. Whether you're managing a business network or setting up an advanced home system, this device offers robust features and cutting-edge technology to meet your networking needs. With ceiling-mounting capability and PoE, this WiFi 7 AP with 8 spatial streams and 6 GHz support will not let you down. A dedicated spectral scanning engine for interference-free WiFi helps you stay connected to up to 500+ concurrent clients. Manage your network with ease using the intuitive UniFi Controller software, offering comprehensive control and monitoring capabilities.


Features

• Supported Protocol: 802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7).
• MIMO (2.4GHz, 5GHz, 6GHz): 2 x 2, 4 x 4, 2 x 2 (DL/UL MU-MIMO).
• Throughput Rate (2.4GHz, 5GHz, 6GHz): 688Mbps, 8.6 Gbps, 5.7Gbps.
• WiFi 7 with 6 GHz support.
• Real-time spectral analysis for enhanced channel selection.
• 160 m² (1,750 ft²) coverage.
• 500+ connected devices.
• Powered using PoE+.
• 8 spatial streams.
• 2.5 GbE uplink.

Specifications
Networking, Connectivity & Ports
Model Ubiquiti U7 Pro Max
Form-Factor Ceiling Mount/Wall Mount/Tabletop
Device Type Wireless Access Point
Compatible Internet Connections Ethernet
Network Connectivity
  • 10/100/1000/2500
  • Wireless LAN
Network Ports 1 x RJ45 10/100/1000/2500 (2.5 Gigabit) for WAN
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 14988 (688 + 8600 + 5700) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11be
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band Tri-Band
Frequency
  • 2.4 GHz
  • 5 GHz
  • 6 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna
Core Features
Features
  • MU-MIMO
  • PoE+
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x Reset Button
OS Support
Max. Power Consumption 22 W
PSU Type
Security & VPN
Security Protocols
  • WPA
  • WPA-Enterprise
  • WPA-PSK
  • WPA2
  • WPA3
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions Ø206 x 46 mm (WxHxD)
Weight 680 g
Additional Specifications
Note N/A
Additional Information
Scan Code LN149493
Model Number U7-Pro-Max
GTIN 810084695555
