Product Overview

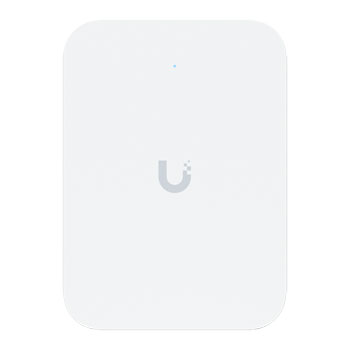

Ubiquiti U7 In-Wall Access Point

The U7 In-Wall AP brings next-generation Wi-Fi 7 performance directly into your wall plate, combining high-speed wireless connectivity and versatile wired networking in a compact, hospitality-grade design. With dual-band Wi-Fi 7 support, 4 spatial streams, and MU-MIMO, this sleek device delivers ultra-fast speeds and reliable connections across up to 115 m² (1,250 ft²) - perfect for hotels, offices, and modern homes seeking high-density indoor Wi-Fi coverage.


Dual-Band Wi-Fi 7 with 4 Spatial Streams & MU-MIMO

Built on the latest 802.11be (Wi-Fi 7) standard, the U7 IW offers a dual-band Wi-Fi configuration with 4 spatial streams and MU-MIMO technology. This enables it to serve multiple devices simultaneously, maximising throughput - up to 4.3 Gbps on 5 GHz and 688 Mbps on 2.4 GHz - making it ideal for ultra-HD streaming, low-latency gaming, and smart-device connectivity.


Optimal Indoor Coverage and Client Capacity

Designed for indoor use in environments with moderate coverage requirements, the U7 IW delivers strong, wall-to-wall Wi-Fi coverage across 115 m² (1,250 ft²), supporting over 200 clients concurrently. With high transmit power and integrated antenna gains, it minimises dead zones and maintains strong signal strength throughout your space.


Integrated 2.5 GbE Uplink & PoE-Powered Switch

Equipped with a 2.5 GbE RJ45 uplink, the U7 IW supports high-speed backhaul performance into your network. Power is efficiently delivered via PoE+, and with its built-in two-port 2.5 GbE switch, this AP can pass PoE through to another device—perfect for powering an additional access point or security camera at the wall outlet.


Enterprise-Grade UniFi Management

Managed seamlessly via the UniFi Network controller, the U7 IW supports advanced features like band steering, fast roaming, guest portal customisation, VLAN assignment, traffic shaping, and detailed analytics. Ideal for large or multi-unit deployments, it scales effortlessly within the UniFi ecosystem.

Features

• Full Wi-Fi 7 Support.
• 4 Spatial Streams – 2 x 2 (2.4 GHz) + 2 x 2 (5GHz) MU-MIMO.
• High Maximum Data Rate of 4.3 Gbps (5 GHz) and 688 Mbps (2.4 GHz).
• Large indoor coverage of up to 115m².

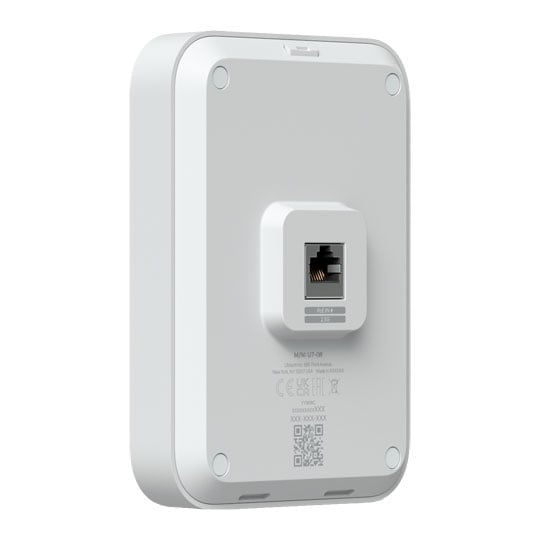

• Designed to be mounted inside / as part of wall structures. Paintable to match surroundings.

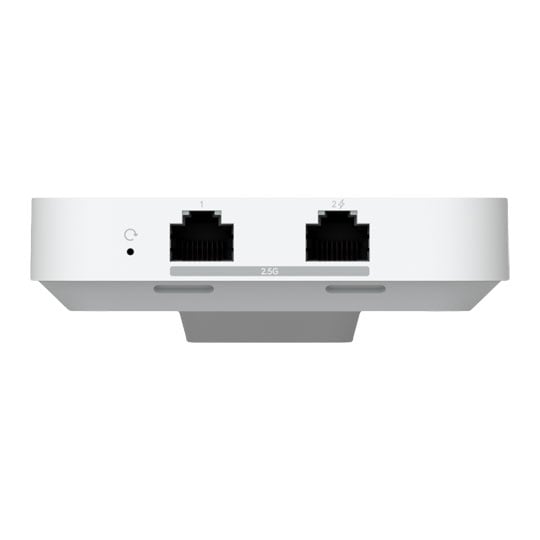

• 3 × 2.5GbE RJ45 (1 x PoE+ input, 1 x PoE output, 1 x standard RJ45).
• 200+ concurrent devices.

Specifications
Networking, Connectivity & Ports
Model Ubiquiti U7 In-Wall Access point
Form-Factor Ceiling Mount/Wall Mount/Tabletop
Device Type Network WiFi Access Point
Compatible Internet Connections
  • Ethernet
  • Existing WiFi Network
Network Connectivity
  • 10/100/1000/2500
  • Wireless LAN
Network Ports 3 x RJ45 10/100/1000/2500/5000 (5 Gigabit)
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections 3
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 4988 (688 + 4300) Mbps
Wireless Protocols
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11be
  • IEEE 802.11n
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna 4 Internal
Core Features
Features
  • Band Steering
  • Fast Roaming
  • Wireless Mesh
  • Wireless Schedule
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x Reset Button
OS Support
Max. Power Consumption 13 (Excluding poE Output) W
PSU Type
Security & VPN
Security Protocols
  • Captive Portal
  • Client Isolation
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions 137 x 98.7 x 30.2 mm (WxHxD)
Weight 400 g
Additional Specifications
Note N/A
Additional Information
Scan Code LN160549
Model Number U7-IW
GTIN 810084698754
