Two Notes Torpedo Reload II Load Box
Two Notes - Torpedo Reload II, Multi-Impedance Reactive Load Box and Active Attenuator
Email me when the availability or price changes
Finance this product
- From £29.73 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £21.21 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Multi-Impedance Reactive Load Box & Active Attenuator

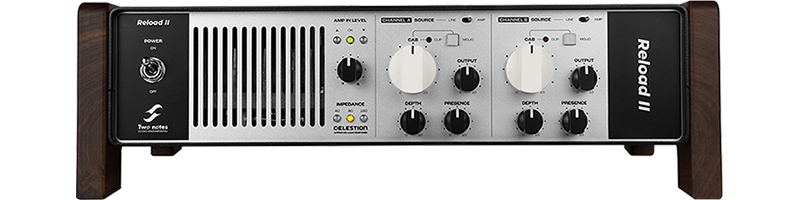

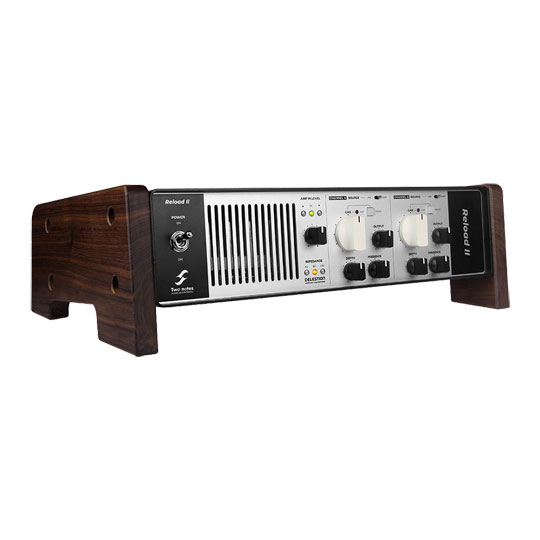

Two Notes - Torpedo Reload II
the next evolutionIntroducing Torpedo Reload II. The latest addition in Two notes’ class-leading reactive load solution legacy marking the definitive watershed in contemporary backline control. Featuring twin-channel operation, selectable multi-impedance compatibility and true continuous attenuation, Reload II is our most advanced Load Box to date. Its mission is simple: unleash the power of any amplifier or line-level source without compromise.
Armed with a ground-up rework of our defining reactive load for a Celestion® Approved Load Response, the match is set to drive any amp’s power-stage (rated up-to 200W RMS) to perfection, retaining all the sonic integrity your performance demands. Scalable from a whisper to a full-throttle onslaught, Reload II’s ultra-transparent dual-mono 215W (per channel) amplifier/attenuator and paired speaker outputs preserve every facet of your tone. Add a Stereo FX Loop, twin DI outputs and GENOME Reload II Edition (software download) into the mix and Reload MKII doesn’t just enhance your rig, it redefines it.
New Features
• A significantly improved reactive load bearing a Celestion® Approved Load Response
• A Stereo / Dual Mono FX Loop
• Twin Channel Operation with selectable Line & Amp sources
• Two Independently controlled cabinet outputs
• Two Independently controlled Line outputs
• Depth, Presence and MOJO controls per channel

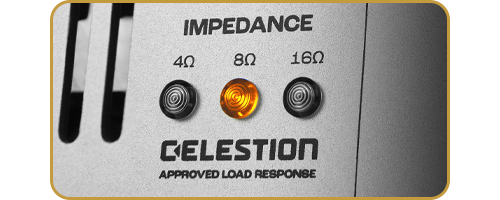

Celestion Approved Load Response
Feel, Response, ToneFeel, Response and Tone are the bedrock of any performance, all rooted in a premier load-response that’s second-to-none. It’s this mantra that’s spawned Reload II’s all-new reactive load and the final word in next-generation Load Box technology. For starters, a ground-up rework of load design delivers an impedance curve inspired by Celestion’s iconic driver line for an industry-first “Celestion Approved Load Response”. Fuse this with switchable multi-impedance capability (4-, 8- and 16Ω), and you’re locked to get the best out of every amp in your collection.

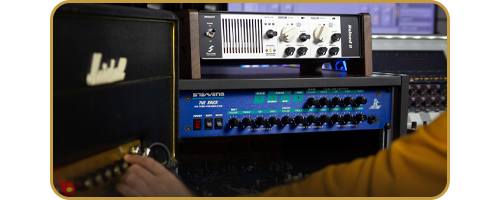

Whatever Your Rig - Reload It!
easy to useIf it’s a Modeller, Fly-Rig, Amplifier or Amp Sim, Reload II is spec’d to deliver on any mandate. A multi-impedance Amp In and dual Line inputs make hooking-up anything from a 200W amplifier’s power stage to a dual-mono/stereo line level source nice and simple. Throw twin-channel operation into the mix - complete with independent source selection per channel - and Reload II delivers on any scenario from the bedroom to the mainstage.

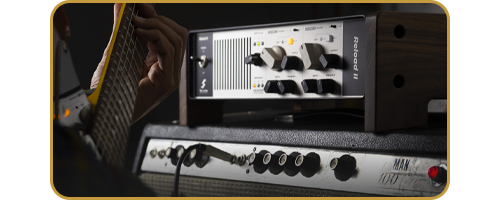

surgical attenuationDialling in your amp’s sweet spot means driving its power stage. The downside is your driver’s going to move a lot of air! Reload II’s twin-channel continuous attenuator fueled by an integrated ultra-transparent power amplifier solves this.
maximum firepowerFrom a Line Level source to a low powered amp - or simply a scenario calling for a secondary speaker output - Reload II’s twin-channel sonic muscle delivers a mighty 215W per cab output, elevating even the most modest rig to mainstage status!
loop commandFor apex-level FX integration, look no further than Reload II’s Footswitchable Stereo FX Loop. Packing Series/Parallel routing facilities, Return Dry/Wet Mix controls and Dual Mono / A->B Link Modes, it’s primed for adding a full-featured Stereo FX loop to your amplifier or even kicking-out a quasi W/D/W configuration using just two cabinets.
up for any occasionIf it's a Studio- or Live-Rack, an ergonomic top-box or a desktop mainstay, Reload II delivers right-out-the-gate. Fusing a made-to-move footprint, an all-metal chassis, optional rack ears (included), genuine wood sides and premium component arsenal, Reload II is our most rig-ready solution to date.
Peak Performance

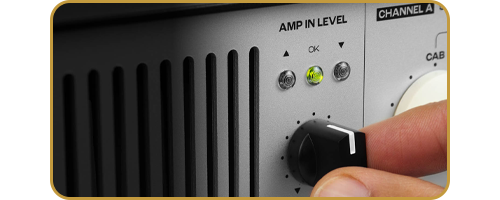

serious powerUnder the hood, Reload II packs some serious horsepower. For those times when you need to ‘punch it’, a control arsenal engineered for fuss-free signal optimization guarantees to unleash every iota of power on tap. First-up, a variable AMP IN LEVEL control - and affiliated status indicators - primes any Amplifier to leverage all the might Reload II’s dual 215W per-channel power amplifier delivers. Add multi-stage clipping indication into the equation and the match is set for unparalleled authority to elevate any source signal through Reload II’s architecture.
Revoice It!

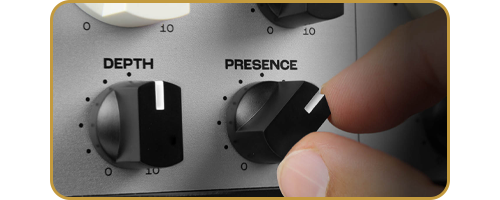

outstaning tone-shapingRounding out Reload II’s control arsenal is a suite of expertly-voiced tone-shaping tools, engineered to get your tone where it needs to be, fast! Front-and-center, dedicated Depth and Presence controls add weight, body and definition to your input source; fuse this with integrated MOJO controls per Power Amp channel - for the feel and response of a pushed amplifier at even the most modest levels - and all rudiments are set for meteoric sonics every time.
Direct Ops
create the sound in your headFrom tracking in the studio to a road-ready backline essential, Reload II is poised to deliver on any need. Packing independent dual XLR Line Outputs, complete with individual level controls, transforming any rig into a stage- or studio-DI couldn't be simpler. Better yet, Reload ships with a comprehensive software package, all developed to make the sound in your head a reality!
Included Software
Genome Reload II editionReload II ships with a lifetime license to GENOME - the carrier class software ecosystem engineered for world-class DynIR speaker simulation and much more. Fusing an ever-growing roster of virtual cabinets, amplifiers, pedals, and essential STUDIO FX, GENOME is your first - and final - destination for professional recordings.
Reload II Series RExperience expert-level tone shaping with the GENOME-ready Series-R DynIR cabinet collection. Packing a premier assemblage of 24 expertly-curated DynIRs from Celestion and Two notes’ expansive catalog, elevating your tone with the undisputed top-tier cabinet emulation platform is primed for any sonic exploit.
Amp Capture Essential
unique profilesIntroducing CODEX, GENOME’s AI Amp Capture Player engineered to elevate any tube amp profile with the apex in Two notes’ tone-bending knowhow. Compatible with Neural Amp Modeller (NAM), AIDA-X and Proteus captures, creating your own unique profiles has never been simpler. The bedrock of a primo amplifier capture is a rock-solid loadbox! Reload II’s next-gen reactive load, multi-impedance compatibility and studio-grade DI outputs combine to deliver the connectivity, response and feel for pristine Grade-A captures.
Introducing Torpedo Reload II
The Tech Spec
| Features | Specification | Speaker Input | Jack 6.35mm (1/4”) unbalanced (TS, Tip/Sleeve) Maximum input Voltage: 140V AC (45dBu) Max Security Load: 270Ω / 20W |
|---|---|
| Load Input Level | Adjustable via potentiometer with continuous attenuation (-inf) to continuous amplification (+20dB) |
| Speaker Outputs | (2) Jack 6.35 mm (1/4”) unbalanced (TS) Min Load: 3.5Ω Max Output Power (single channel at THD+N <1%): 1x 215 W RMS @ 4Ω 1x 120 W RMS @ 8Ω 1x 50W RMS @ 16Ω Maximum Output Power (both channels driven at THD+N <1%): 2x 150 W RMS @ 4Ω 2x 120 W RMS @ 8Ω 2x 50W RMS@ 16Ω Level output adjustable for fine channel symmetry |
| Line Inputs | Dual-Mono, (2) Jack 6.35mm (1/4”) balanced (TRS, Tip/Ring/Sleeve) Switched jacks for routing to an unplugged channel Impedance: 300Ω Gain (In to Out): +4 to -inf dB Maximum Output Level: 20dBu Noise: Under -99dBu from 20Hz to 20kHz Frequency Response @ -1dB: 20Hz to 20kHz |
| FX Loop | Dual-Mono Fx loop with independent CHANNEL A and CHANNELB controls (2) SEND + (2) RETURN via 6.35mm (1/4”) unbalanced (TS) Jack Compatibility with +4dBu and -10dBV devices, selectable via a dedicated switch per channel DRY/WET potentiometer with ON/OFF switch Facilities to Copy CHANNEL A return to CHANNEL B output via dedicated switch FX loop activation/deactivation via Footswitch with a 6.35mm (1/4”) Jack; (TRS, Tip/Ring/Sleeve) or (TS, Tip/Sleeve) compatible and configurable via a dedicated Footswitch behaviour switch |
| Load Box | Reactive Load featuring a Celestion Approved Load Response with nominal impedance: 4- or 8- or 16-Ohms (switchable) |
| Maximum Admissible Power | 200W RMS (assuming proper ventilation) |
| Maximum Temporary Admissible Power | 250W peak (assuming proper ventilation) |
| Tone Control | (1) DEPTH and (1) PRESENCE control per CHANNEL Flat response on potentiometers at 0% (1) MOJO control per CHANNEL to deliver high-power feel at low volume Depth: +8dB @75Hz on potentiometer at 100% Presence: +8dB @4kHz on potentiometer at 100% |
| Cooling | Passive cooling with amplifier heatsink and Load Box heatsink Active cooling with temperature-controlled fan with 2 speeds (Slow & Boost) |
| Thermal Security | To prevent damage to the internal Load Box, thermal cut off is implemented when the internal temperature rises over a predesignated threshold. When active, a 270Ω security load is placed into effect and the signal is muted |
| Power Supply | Type: IEC60320 C14 power connector Input Voltage: Compatible with 100V – 230V @ 50- to 60Hz Power: 100W Max |
| Dimensions (Width x Depth x Height) | 365mm x 89mm x 220mm 365mm x 89mm x 240mm (including connectors and knobs) |
| Weight | 6.9kg |
