TRYX PANORAMA WB White Intel / AMD CPU Water Block

TRYX PANORAMA WB CPU Water Block

This is not an all-in-one cooler; it is a water block made for custom liquid-cooling builds. That means it is intended to be paired with your own pump, radiator, tubing, and fittings rather than used as a standalone cooling solution.
The overall design is meant to feel premium and futuristic, especially in builds where the block is visible through a side panel.

Cooling Construction

Under the display, the water block uses a high-purity copper cold plate with a 55.5 x 55.5 mm contact area. TRYX also uses a subtle micro-convex base to improve CPU contact, which helps transfer heat more efficiently.

It also uses a microchannel layout with very tight 0.1 mm gaps, increasing coolant-to-metal contact surface for better heat dissipation. That design is aimed at high-performance or overclocked systems where thermal efficiency matters more than simple aesthetics.

Asetek Gen8 V2 Architecture

The newly designed adjustable mounting bracket allows minor repositioning without replacing components. It is specifically optimized based on the thermal characteristics of Intel's latest-generation processors.

VRM Support

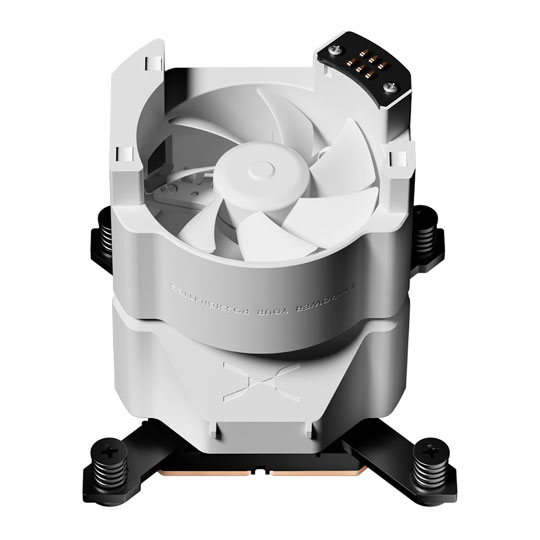

Positioned beneath the screen, the fan provides additional cooling to the motherboard's VRM, helping to improve power delivery stability and overall platform reliability.

90° Fittings, 360° Rotatable

Positioned beneath the screen, the fan provides additional cooling to the motherboard's VRM, helping to improve power delivery stability and overall platform reliability.

G2 Curvature Design

The screen features a meticulously designed G2 curvature, offering smoother, seamless transitions for an exceptional 3D visual experience.

Compatibility and Fitting

The Panorama WB supports modern Intel and AMD desktop sockets, including Intel LGA 1851, 1700, 1200, and 115x, plus AMD AM4 and AM5.

Equipped with G1/4 threads for inlet and outlet ports, delivering greater coolant flow and full compatibility with all standard fittings and liquid cooling components.

KANALI Software Hub

TRYX’s KANALI software is a major part of the product’s appeal. It supports custom screen content, anamorphic visuals, split-screen layouts, real-time system monitoring, and one-click recording for display content.

This means the display is not just decorative; it can double as a live system dashboard. For builders who like synchronized visuals across a themed rig, that adds a layer of personalization beyond typical RGB lighting.

Build Focus and Warranty

The Panorama WB is clearly aimed at enthusiast custom-loop users rather than mainstream builders. Its emphasis on display quality, premium materials, and water-block performance makes it more of a showcase component than a basic cooling solution.

• Socket Support: Intel 1851/1700/1200/115x, AMD AM4/AM5.
• Screen Type: AMOLED.
• Screen Size: 6.67 Inch.
• Screen Resolution: 2240 x 1080.
• Screen Refresh Rate: 60hz.
• Architecture: Asetek Gen8 V2.
• Adjustable Mounting Bracket: Yes.
• VRM Fan: Yes.
• Thread: G1/4.
• Microchannel Gap: 0.1mm.
• Channel: Jet Microchannel.
