Scan code: LN98195 Manufacturer code: TD-W8961N

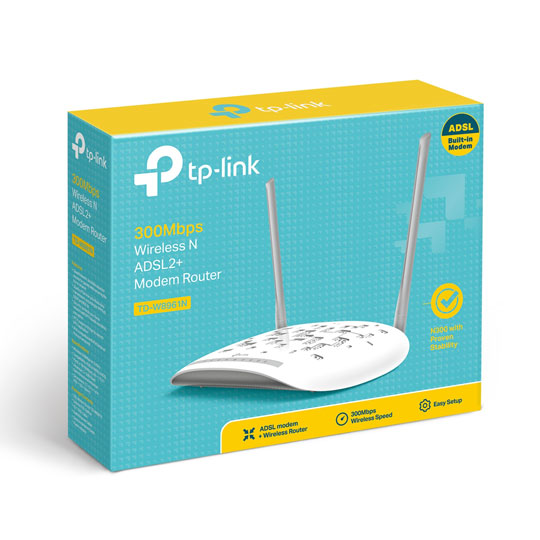

TP-LINK TD-W8961N Wireless N ADSL2+ Modem Router

TP-LINK TD-W8961N 300 Mbps Wireless N ADSL2+ Modem Router, 4 x 10/100Mbps RJ45 Ports, RJ11

Thumbnail 1 : TP-LINK TD-W8961N Wireless N ADSL2+ Modem Router Thumbnail 2 : TP-LINK TD-W8961N Wireless N ADSL2+ Modem Router Thumbnail 3 : TP-LINK TD-W8961N Wireless N ADSL2+ Modem Router Thumbnail 4 : TP-LINK TD-W8961N Wireless N ADSL2+ Modem Router
Scan code: LN98195 Manufacturer code: TD-W8961N
£18.78
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 16th Dec To 18th Dec to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview What This Product Does
TP-LINK’s TD-W8961N 300Mbps Wireless N ADSL2+ Modem Router is an incredibly robust all-in-one device that provides a full rate of ADSL2+ standard with the superb reliability and a cost-effective solution for home and small business. With the TD-W8961N, you can easily create a secure wireless network and share a high-speed internet connection while access to shared files, music, photos, and printers with multiple computers.

One-Stop Solution
The TD-W8961N does the work of several networking devices packed into one sleek device. With an ADSL2+ modem, NAT router, 4-port switch and 300Mbps wireless N access point, this device eliminates the need to purchase multiple devices to access and share a high-speed internet connection.

Incredible Wireless Performance
With 300Mbps 802.11n wireless and 4 Megabit LAN ports, the TD-W8961N is the ideal choice for bandwidth heavy users that rely on speedy, reliable connections for bandwidth intensive work or entertainment such as lag-free conference calls, HD video streaming or online gaming.

Ideal for Multimedia Application
Port VLAN binds specific LAN ports and PVCs for differential services like IPTV. The TD-W8961N's built-in QoS engine provides various QoS policies that help prioritize Internet traffic to enable smooth IPTV streaming and lag-free online gaming. Thus users can experience the benefits of a smooth network connection without worrying about traffic congestion. Combined with IGMP multicast and IGMP snooping features the TD-W8961N makes an ideal solution for multimedia applications.

Advanced Network Security and Flexible Management
The TD-W8961N utilizes NAT and SPI (stateful packet inspection) firewalls which inspect the contents of incoming packets before they are allowed in, preventing potential attacks from across the Internet. For added convenience, it supports access control based on MAC addresses, IP addresses, domain names or applications such as MSN or Yahoo Messenger, so that parents and network administrators can establish restricted access policies for children or staff. Aside from web configuration, the TD-W8961N also provides TR-069 and SNMP, which automatically update the device's firmware and other settings when they become available from users' ISP. All of these features help users to enhance their network's security and make network management more flexible. Features • All-in-One Device: ADSL2+ Modem, NAT Router, 4-Port Switch and Wireless N Access Point
• Wireless N speed up to 300Mbps makes it ideal for heavy bandwidth consuming or interruption sensitive applications like online gaming, Internet calls and even the HD video streaming
• Easy Setup Assistant with multi-language support provides quick & hassle-free installation
• Easy one-touch wireless security encryption with the ‘WPS’ button and easy Wi-Fi On/Off button
Specifications
Networking, Connectivity & Ports
Model TD-W8961N
Form-Factor Desktop
Device Type ADSL2+
Compatible Internet Connections ADSL 2+
Network Connectivity 10/100
Network Ports
  • 1 x RJ11 for xDSL
  • 4 x RJ45 10/100 (Fast Ethernet) BaseT for LAN
Other Connectors N/A
USB Applications
Wired Protocols
  • IEEE 802.3
  • IEEE 802.3u
Total LAN Connections 4
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance Unknown
Wireless
Wireless Speed 300 Mbps
Wireless Protocols
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band
Frequency
Operation Channel
Wireless Transmitter Power <20dBm(EIRP)
Antenna Omni directional, Fixed
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons
  • 1 x Power Button
  • 1 x Wireless On/Off Button
  • 1 x WPS Button
OS Support
  • Linux
  • Mac OS
  • UNIX
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Max. Power Consumption . W
PSU Type External
Security & VPN
Security Protocols
  • Denial of Service (DoS)
  • NAT Firewall
  • Ping of Death
  • SPI Firewall
  • SYN Flooding
Firewall/NAT Yes
Management Web-based GUI configuration.
VPN Support
  • IPSec Pass-Through
  • L2TP Pass-Through
  • PPTP Pass-Through
Physical Specifications
Dimensions 195 x 35 x 130 mm (WxHxD)
Weight
Additional Information
Scan Code LN98195
Model Number TD-W8961N
GTIN 6935364061173
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
TP-LINK
Telephone:
0845 147 0017 (UK) or 0818 229 000 (Ireland)
