Scan code: LN110321 Manufacturer code: EAP265 HD

TP-LINK AC1750 Ceiling Mount Access Point

TP-LINK EAP265HD AC1750 MU-MIMO Gigabit Ceiling Mount Access Point, Compatibility with 802.3af/at, 48V Passive PoE

MORE INFO

Thumbnail 1 : TP-LINK AC1750 Ceiling Mount Access Point

Thumbnail 2 : TP-LINK AC1750 Ceiling Mount Access Point

Thumbnail 3 : TP-LINK AC1750 Ceiling Mount Access Point

Thumbnail 4 : TP-LINK AC1750 Ceiling Mount Access Point

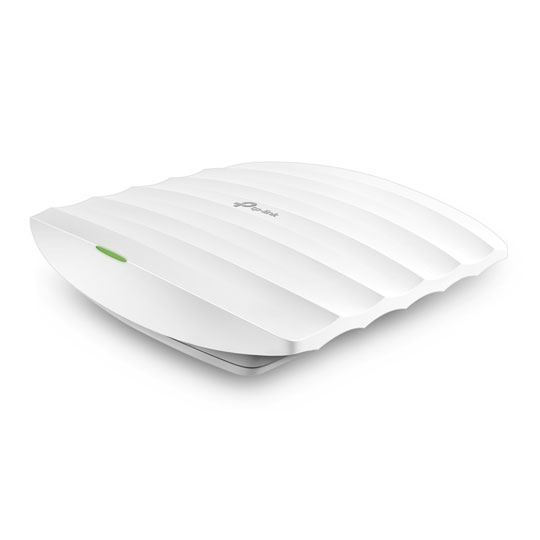

TP-LINK AC1750 Ceiling Mount Access Point : image 1

zoom

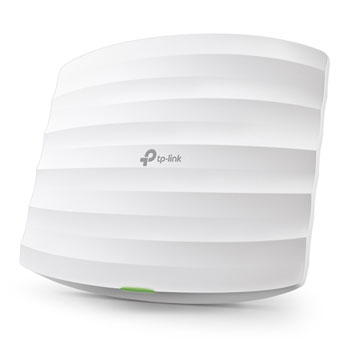

TP-LINK AC1750 Ceiling Mount Access Point : image 2

zoom

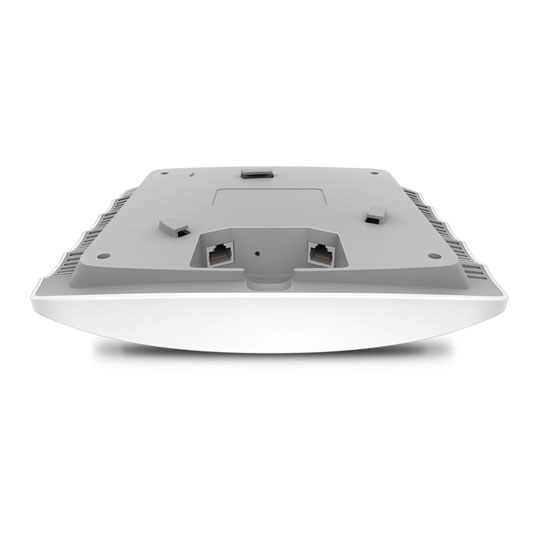

TP-LINK AC1750 Ceiling Mount Access Point : image 3

zoom

TP-LINK AC1750 Ceiling Mount Access Point : image 4

zoom

Scan code: LN110321 Manufacturer code: EAP265 HD

Share Facebook Twitter Google Reddit Pinterest LinkedIn

£121.49Item currently awaiting an ETA

Pre Order

Pre order

From £10.91 / month (APR 14.9%)

Monthly Payment:	£10.91
Instalment Rate:	14.9% p.a. (fixed)
Cost of purchase:	£121.49
Total inc. interest:	£130.85

If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.

Delivery Options

By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window
Weekend, timed and European delivery options are available at checkout
Collect instore Collect from our Bolton store, BL6 6PE | Free

Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)
UPS and DPD Pickup Pickup from local convenience store | £4.79

Collect your parcel from your newsagents, petrol stations and convenience stores

Services

SCANPROTECT Protect against installation damage for 28 days. More info

ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Share Facebook Twitter Google Reddit Pinterest LinkedIn WhatsApp

Product Overview

Superior Wi-Fi Speeds and Performance

QCA enterprise-class chipsets, dedicated high-power amplifier, and professional antenna along with the latest generation 802.11ac Wave 2 MU-MIMO technology ensure superior 1750 Mbps Wi-Fi speeds and long-range coverage over 2.4GHz and 5GHz wireless bands.

Seamless Roaming

802.11k/802.11v seamless roaming switches clients automatically to the access point with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.

Secure Guest Network with Facebook Wi-Fi and SMS Login

Guest Network provides secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and boost your busines

Multiple POE Options for Easy Installation

EAP245 supports both 802.3af PoE and Passive PoE power supply, which can be either powered by a PoE switch or the provided PoE adapter. The addition of elegant appearance and simple mounting design for easy attachment to a wall or ceiling further makes deployment effortless and flexible.

Cloud Centralised Management - Anytime, Anywhere

Omada Cloud Controller OC200 and Omada Software Controller make it easy to manage and monitor the whole Omada network in real-time, while cloud service enables remote and secure access no matter where you find yourself.

Easy Management with the Omada App

Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.

Features
Fast Dual-Band Wi-Fi: Simultaneous 450 Mbps on 2.4 GHz and 1300 Mbps on 5 GHz totals 1750 Mbps Wi-Fi speeds.
High-Density Connectivity: MU-MIMO, Load Balance, and professional antennas improve capacity in high-density environments to connect more devices simultaneously.
Integrated into Omada SDN: Zero-Touch Provisioning (ZTP), Centralized Cloud Management, and Intelligent Monitoring.
Centralized Management: Cloud access and Omada app for ultra convenience and easy management.
Seamless Roaming: Even video streams and voice calls are unaffected as users move between locations.
PoE Support: Support both standard 802.3af/at and Passive PoE (PoE adapter included) for flexible installations.
Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.

Specifications

Networking, Connectivity & Ports
Model	EAP265HD
Form-Factor	Rackmount
Device Type	Wireless Access Point
Compatible Internet Connections
Network Connectivity	10/100/1000
Network Ports	2 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Other Connectors	N/A
USB Applications
Wired Protocols
Total LAN Connections	0
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance

Wireless
Wireless Speed	1750 (450+1300) Mbps
Wireless Protocols	IEEE 802.11a IEEE 802.11ac IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.3af PoE
Wireless Band	Dual Band
Frequency	2.4 GHz 5 GHz
Operation Channel
Wireless Transmitter Power	24dBm(2.4GHz), 24dBm(5GHz)
Antenna	3 Internal Omni

Core Features
Features	Automatic Channel Assignment Beamforming Enable/Disable Wireless Radio Load Balance MU-MIMO Multiple SSIDs Quality of Service (QoS) Rate Limit Reboot Schedule Transmit Power Control (Adjust Power on dBm) Wireless Schedule Wireless Statistics based on SSID/AP/Client
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons	1 x Reset Button
OS Support
Max. Power Consumption	12.6 W
PSU Type

Security & VPN
Security Protocols	802.1x Access Control Captive Portal Authentication Rogue AP Detection SSID to VLAN Mapping WEP (128 bit) WEP (152 bit) WEP (64 bit) Wireless Isolation Between Clients Wireless Mac Address Filtering WPA WPA-PSK WPA2-Enterprise WPA2-PSK
Firewall/NAT	No
Management	Omada Cloud Controller
VPN Support

Physical Specifications
Dimensions	181.5 x 205.5 x 37.1 mm (WxHxD)
Weight

Additional Specifications
Note	N/A

Additional Information
Scan Code	LN110321
Model Number	EAP265 HD
GTIN	6935364030735
