Scan code: LN81990 Manufacturer code: EAP245

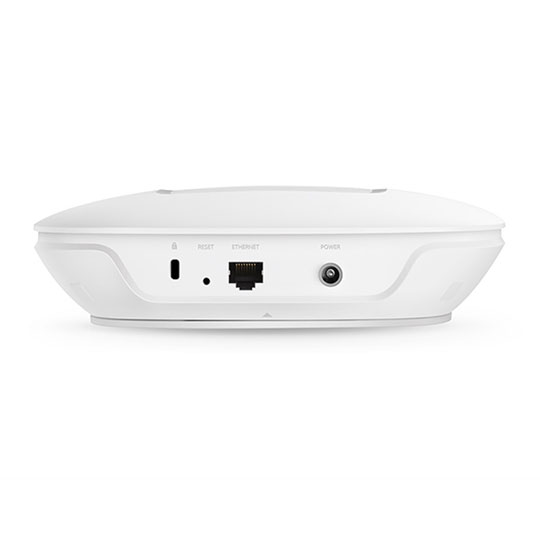

TP-Link EAP245 Wall / Ceiling Mountable Access Point

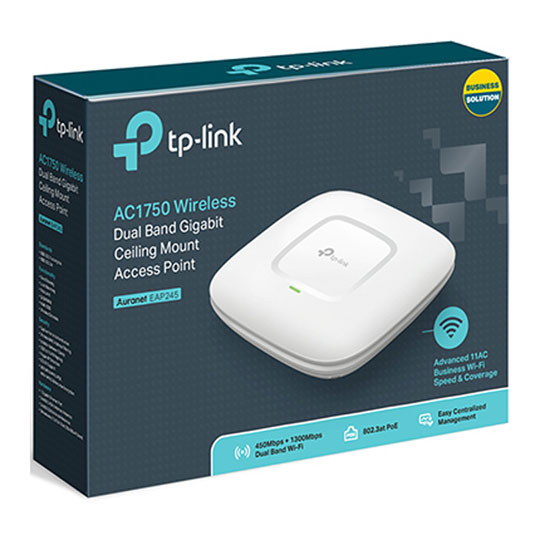

TP-Link EAP245 AC1750 Wireless Dual Band Gigabit Ceiling And Wall Mountable Access Point

Thumbnail 1 : TP-Link EAP245 Wall / Ceiling Mountable Access Point Thumbnail 2 : TP-Link EAP245 Wall / Ceiling Mountable Access Point Thumbnail 3 : TP-Link EAP245 Wall / Ceiling Mountable Access Point Thumbnail 4 : TP-Link EAP245 Wall / Ceiling Mountable Access Point
Scan code: LN81990 Manufacturer code: EAP245
£86.99
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 23rd Oct 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

ScanProtect
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The latest generation of 802.11ac Wi-Fi combined with advanced 3x3 MIMO technology ensures superior Wi-Fi speeds and coverage over 2.4GHz and 5GHz wireless bands.

The EAP245 achieves Wi-Fi speeds of up to 1.75Gbps, with 1300Mbps on the 5GHz band and 450Mbps on the 2.4GHz band.

Easy for Centralized Management
Manage and monitor hundreds of EAPs with ease, all from a single location. The TP-Link Auranet Controller software provides an intuitive management interface. Control and map out the entire network from any connected PC. There’s no added cost, and no need for special training. Business Wi-Fi management has never been so efficient and cost-effective.

Efficient Guest Authentication
Captive portal provides one convenient method of authentication for Wi-Fi guests by requiring users to perform certain actions before network access is allowed. It can Control connections to your network with a voucher system and customized authentication page that can provide a branded experience, advertise to customers, or offer coupons.

Flexible Deployment
The EAP's low profile design and easy mount chassis make it easy to install on any wall or ceiling surface and allow it to blend in with most interior decorating styles. EAP devices also support Power over Ethernet (PoE), making deployment effortless and flexible.

Unified Wi-Fi for Multi-user Business Environment
The Auranet business-grade 11ac Wi-Fi solution is engineered to handle heavy multi-user usage in large areas without encountering the same stability issues found with standard routers and access points purposed for home use. It’s the perfect fit for motels, salons, chain-stores, schools, and restaurants.
Features • Simultaneous 450Mbps on 2.4GHz and 1300Mbps on 5GHz totals 1750Mbps Wi-Fi speeds
• Free EAP Controller Software lets administrators easily manage hundreds of EAPs
• Support Power over Ethernet(802.3at) for convenient and affordable installation
• Captive portal provides a convenient method for guest authentication
• Band Steering Automatically moves dual band devices onto the wider 5GHz band for faster connections
• Load balance ensures large numbers of users have smooth network experiences in high density business networks
Specifications
Networking, Connectivity & Ports
Model EAP245
Form-Factor
Device Type Wireless Access Point
Compatible Internet Connections Existing WiFi Network
Network Connectivity 10/100/1000
Network Ports
Other Connectors N/A
USB Applications
Wired Protocols
Total LAN Connections
Total WAN Connections
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance na
Wireless
Wireless Speed N/A
Wireless Protocols N/A
Wireless Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power <25dBm(2.4GHz) <27dBm(5GHz)
Antenna
Core Features
Features
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x Reset Button
OS Support
  • Windows 10
  • Windows 7
  • Windows 8
  • Windows Vista
  • Windows XP
Max. Power Consumption 12.7 W
PSU Type
Security & VPN
Security Protocols
  • Access Control
  • Captive Portal Authentication
  • Rogue AP Detection
  • SSID to VLAN Mapping
  • WEP
  • WEP (128 bit)
  • WEP (152 bit)
  • WEP (64 bit)
  • Wireless Isolation Between Clients
  • Wireless Mac Address Filtering
  • WPA
  • WPA-PSK
  • WPA-PSK2
  • WPA2
  • WPA2-Enterprise
Firewall/NAT No
Management
VPN Support
Physical Specifications
Dimensions 180 x 47.5 x 180 mm (WxHxD)
Weight
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Direct
DOA Period:
28 days
RTB Period:
1 months
