Scan code: LN144135 Manufacturer code: Archer VX1800V

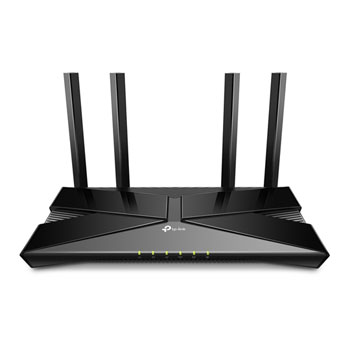

tp-link Archer VX1800V Wireless Wi-Fi 6 VDSL/ADSL Modem Router

tp-link Archer VX1800V Dual-Band Wi-Fi 6 VDSL/ADSL Modem Router, ax1800 (574+1201), 4x GbE, USB2.0, 2x RJ11

Thumbnail 1 : tp-link Archer VX1800V Wireless Wi-Fi 6 VDSL/ADSL Modem Router Thumbnail 2 : tp-link Archer VX1800V Wireless Wi-Fi 6 VDSL/ADSL Modem Router Thumbnail 3 : tp-link Archer VX1800V Wireless Wi-Fi 6 VDSL/ADSL Modem Router
Scan code: LN144135 Manufacturer code: Archer VX1800V
Order in the next 45 mins and get it tomorrow
Get it Tomorrow, 18 AprIn stock
From £9.06 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £9.06
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £99.98
Total inc. interest: £108.71
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 18th Apr to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

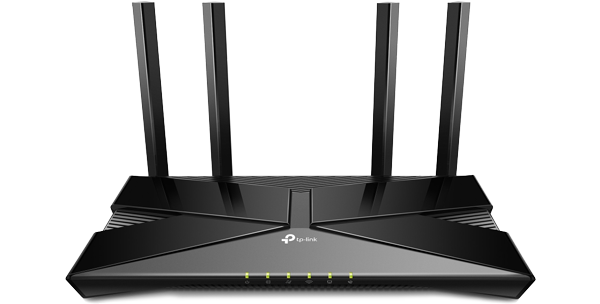

TP-LINK Archer VX1800v Wi-Fi 6 VDSL/ADSL Modem Router

TP-LINK Archer VX1800v

Stay fast with Wi-Fi 6 The latest Super VDSL (VDSL2 Profile 35b) tech delivers internet speeds of up to 350Mbps, while G.vector and RNC technology ensure advanced data transmission stability. The modem router offers next generation Gigabit Wi-Fi 6 speed, versatile connectivity, 2x2 MU-MIMO for better performance and VolP support.

Please note: *Archer VX1800v is compatible with VDSL2, ADSL2+, ADSL2, and ADSL.

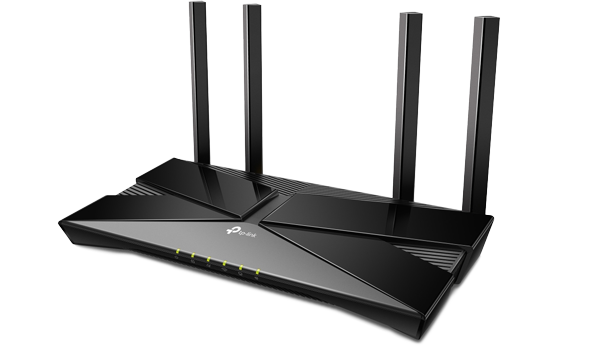

Wi-Fi 6 Upgrades, Incredible Speed

Wi-Fi 6

First class performance The Archer VX1800v features Super VDSL (VDSL2 Profile 35b), the latest generation of DSL technology. Downstream is increased by up to 350 Mbps, 3.5× faster than its VDSL2 predecessor. Compatibility with the leading ISPs provides ideal IP-based connections for any home.

350mbpsdownstream increase

Super VDSLlatest DSL technology

Empower Your Devices with Wi-Fi 6

Wi-Fi 6

Higher speed, greater coverage. Enjoy unrivaled levels of speed with next-gen Wi-Fi 6. By combining 1024-QAM and a long OFDM symbol, Archer VX1800v delivers total speeds of up to 1800 Mbps – 1201 Mbps on 5 GHz and 574 Mbps on 2.4 GHz. Game online, watch 4K videos, and crank up everything to the highest settings without lag.

Wi-Fi 6 also improves network capacity to better address the increased demand on home networks. With MU-MIMO and OFDMA, Archer VX1800v transmits data to and from multiple devices at the same time, reaching up to 4× more capacity, greatly increasing your devices’ transmission efficiency and the throughput of your whole network under the same conditions.

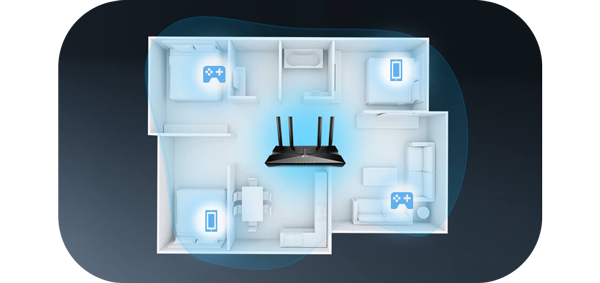

High-Performance Beamforming Technology


More connection Beamforming technology and high-performance antennas combine to adapt Wi-Fi coverage to perfectly fit home and concentrate signal strength towards every device.

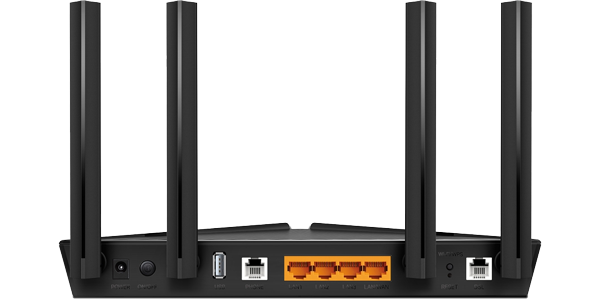

Gigabit Wired Connections and More

Versatile connectivity Archer VX1800v is compatible with Super VDSL (VDSL2 Profile 35b), Ethernet access, and 3G/4G USB modems. Its Gigabit LAN/WAN port accepts connections from cable or fiber modems, and the USB 2.0 port supports 3G/4G dongles for a solid main or backup internet connection.


Reliable ports The USB port can be used to share files, music, and videos within your network at high speeds. Equipped with a high-performance analog telephone system. Connecting external storage through the USB port can also realize the voice message function, without worrying about missing calls or deleting messages. Plug your PCs, smart TVs, and game consoles into one of the three Gigabit Ethernet LAN ports for reliable wired connections of your broadband speed up to 1 Gbps.

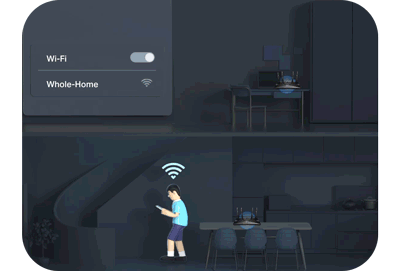

Flexibly Create Whole Home Mesh Wi-Fi

Smart roamingUninterrupted streaming when moving around your home.

Wi-Fi dead zone killerEliminate weakk signal areas with Wi-Fi coverage for the whole house.

One Wi-Fi nameNo more switching Wi-Fi network names.

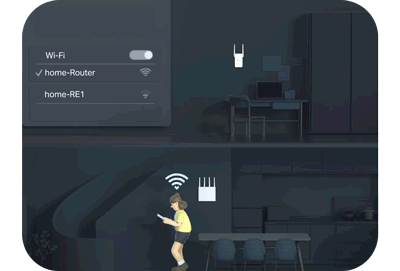

No more dead zones If you have any dead zones at home, just add another Easymesh-Compatible router/range extender to further form your whole home multi-gigabit mesh WiFi. No more searching for a stable connection.**

** Archer VX1800v only support working mode as main router and does not support OneMesh™.

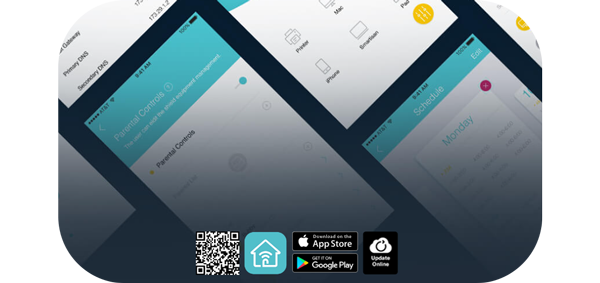

Easy Setup and Use


Update online, download the web interface. Set up the Archer VX1800v in minutes thanks to its intuitive web interface and the powerful Tether app. Manage network settings, including Parental Controls and Access Control, from any Android or iOS device. Tether also provides Automatic Firmware Updates to always give your network the latest performance and security.

Networking, Connectivity & Ports
Model Archer VX1800V
Form-Factor Desktop
Device Type Router
Compatible Internet Connections Existing WiFi Network
Network Connectivity 10/100/1000

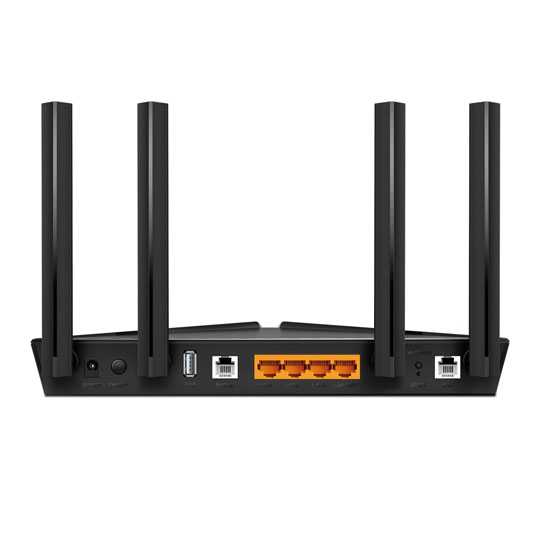

Network Ports
  • 3 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Other Connectors
  • 2 x RJ-11
  • 1 x USB 2.0
USB Applications
Wired Protocols
  • IEEE 802.3
  • IEEE 802.3u
  • IPv4
  • IPv6
Total LAN Connections 3
Total WAN Connections 1
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless Speed 1800 (600+1200) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
  • IEEE 802.3u
Wireless Band Dual Band
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power N/A
Antenna 4× Fixed High-Performance Antennas
Core Features
  • DynDNS
  • NAT Rules
  • RIP V2
  • Static Routing
Router/Modem Processor
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
Buttons 1 x LED On/Off Button
OS Support
  • Linux
  • Mac OS
  • Windows 10
  • Windows 2000
  • Windows 7
  • Windows 8
  • Windows 8.1
  • Windows Vista
  • Windows XP
Max. Power Consumption
PSU Type External
Security & VPN
Security Protocols
  • Access Control
  • Denial of Service (DoS)
  • IP and MAC Address Binding
  • NAT Firewall
  • Ping of Death
  • SPI Firewall
  • SYN Flooding
  • WPA/WPA2-Enterprise (802.1x)
  • WPA2-Enterprise
  • WPA2-PSK
  • WPA3
Firewall/NAT Yes
  • DHCP
  • DMZ
  • IGMP v1/v2/v3
  • Port Forwarding
  • Port Trigger
  • UPnP
VPN Support
  • IPSec Pass-Through
  • OpenVPN Client
  • PPTP Client
Physical Specifications
Dimensions 260.2 x 41.6 x 135 mm (WxHxD)
Additional Specifications
Note N/A
Additional Information
Scan Code LN144135
Model Number Archer VX1800V
GTIN 4895252503838
