Scan code: LN136119 Manufacturer code: Archer AX23

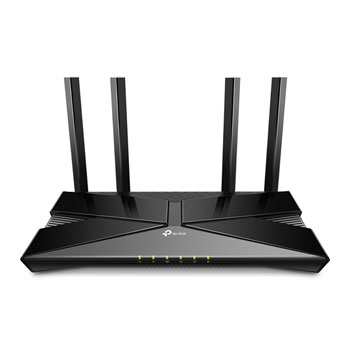

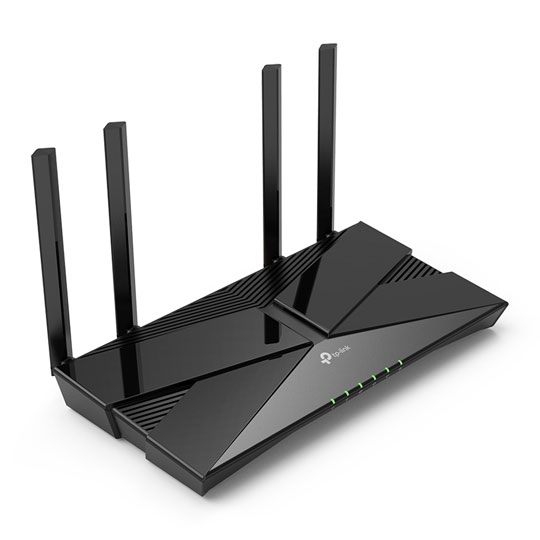

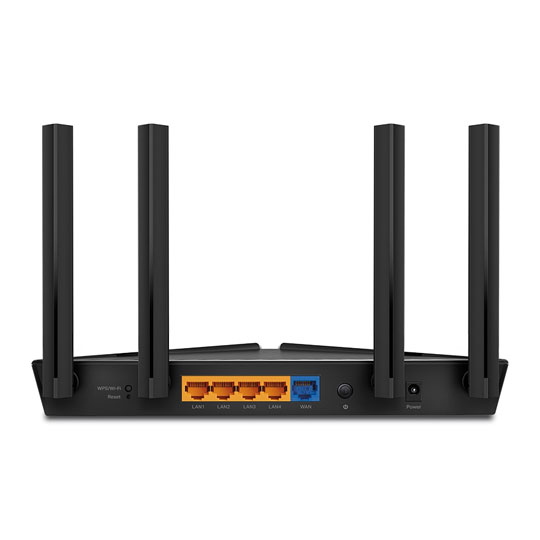

TP-LINK Archer AX23 WiFi 6 Dual-Band Router

TP-LINK Archer AX23 WiFi Router, 4x Antennas, Dual-Band (574+1201Mbps), GbE, OFDMA, Beamforming, 802.11ax

Thumbnail 1 : TP-LINK Archer AX23 WiFi 6 Dual-Band Router Thumbnail 2 : TP-LINK Archer AX23 WiFi 6 Dual-Band Router Thumbnail 3 : TP-LINK Archer AX23 WiFi 6 Dual-Band Router Thumbnail 4 : TP-LINK Archer AX23 WiFi 6 Dual-Band Router
Scan code: LN136119 Manufacturer code: Archer AX23
Order now and receive it by Monday, 24th June
£89.99
Get it Monday, 24 JunIn stock
spend over £280 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 24th Jun to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Wi-Fi 6 Upgrades Everything

The latest generation of Wi-Fi technology brings faster speeds, less lag, and higher capacity, enabling more simultaneous connections on your home network.


Super-Fast Wi-Fi 6

Transfer HD movies in 10 seconds. Wi-Fi 6's 1024-QAM improves encoding efficiency by 25% while the improved symbol rate boosts data rate by 11%. Enjoy broader bandwidth while streaming content on multiple devices.


Connect More, Stay Fast

Enjoy smooth gaming, video streaming, and live feeds simultaneously. OFDMA strengthens your Wi-Fi by allowing multiple clients to share one band at the same time, cutting latency and jitter.


Wi-Fi Coverage Throughout Your Home

4× high-performance external antennas boost Wi-Fi signals throughout your home. Beamforming technology detects devices and concentrates wireless signal strength towards them, especially for those in previously hard-to-reach areas.


Flexibly Create Whole Home Mesh Wi-Fi

If you have any dead zones at home, just add another EasyMesh-compatible router/range extender to further form your whole home multi-gigabit mesh Wi-Fi. No more searching for a stable connection.


Wi-Fi Dead Zone Killer

Eliminate weak signal areas with Wi-Fi coverage for the whole house.


Smart Roaming

Uninterrupted streaming when moving around your home.


One Wi-Fi Name

No more switching Wi-Fi network names.


WPA3—The Next Level of Cybersecurity

The latest Wi-Fi security protocol, WPA3, brings new capabilities to improve cybersecurity in personal networks. More secure encryption in Wi-Fi password safety and enhanced protection against brute-force attacks combine to safeguard your home Wi-Fi.


Universal ISP Support

Europe has the most diverse connection types, and TP-Link knows this. Archer AX23 works with all European ISPs by supporting most authentication methods, including the popular L2TP and PPTP methods in your region.


Easy Setup and Use

Whether you prefer the intuitive Tether app or TP-Link’s powerful web interface, you can set up your Archer AX23 in minutes. The Tether app allows you to manage network settings from any Android or iOS device.


Protect Your Children

Block inappropriate content for your children and customize a time range for better online habits.


Easy Firmware Upgrade

Tired of upgrading firmware? OTA updates enable easy firmware upgrades with a click in the management panel. To keep your security and functions always up-to-date, just turn on the auto schedule.

Features

Super-Fast 1.8 Gbps Wi-Fi: Enjoy smooth 4K streaming and downloading with super-fast Wi-Fi speeds of 1.8 Gbps.
Connect More Devices: Communicates with more devices using OFDMA while simultaneously reducing lag.
Broader Coverage: Improved algorithm, beamforming, and high-performance antennas enhance the Wi-Fi coverage performance.
Next-Gen Platform: The Next-Gen High-Efficiency Chipset provides fast and stable Wi-Fi while saving power consumption.
Parental Controls: Enjoy the most versatile yet free parental controls feature among all routers, including URL blocking, profile management, pausing, and more.
Works with Most ISPs: Compatible with most ISPs with extra L2TP/PPTP support. IPTV support works with your existing TV over the Internet contract.
EasyMesh-Compatible: Flexibly creates a Mesh network by connecting to an EasyMesh-compatible router for seamless whole-home coverage.
Easy Setup: Set up your router in minutes with the powerful TP-Link Tether App.
Backward Compatible: Supports all previous 802.11 standards Wi-Fi devices.

Specifications
Networking, Connectivity & Ports
Model Archer AX23
Form-Factor Desktop
Device Type Router
Compatible Internet Connections
  • Cable-based Modems
  • Ethernet
Network Connectivity 10/100/1000
Network Ports
  • 4 x RJ45 10/100/1000 (Gigabit) BaseT for LAN
  • 1 x RJ45 10/100/1000 (Gigabit) BaseT for WAN
Other Connectors N/A
USB Applications
Wired Protocols
  • IPv4
  • IPv6
Total LAN Connections 4
Total WAN Connections 1
64 Bytes L3 Forwarding Performance
512+ Bytes L3 Forwarding Performance
Wireless
Wireless Speed 1800 (600+1200) Mbps
Wireless Protocols
  • IEEE 802.11a
  • IEEE 802.11ac
  • IEEE 802.11ax
  • IEEE 802.11b
  • IEEE 802.11g
  • IEEE 802.11n
Wireless Band Dual Band
Frequency
  • 2.4 GHz
  • 5 GHz
Operation Channel
Wireless Transmitter Power <20dBm(2.4 GHz), <23dBm(5.15 GHz~5.25 GHz)
Antenna 4 x Fixed High-Performance Antennas
Core Features
Features
  • Beamforming
  • Dynamic Routing
  • DynDNS
  • IPv6 Support
  • OFDMA
  • Quality of Service (QoS)
  • Static Routing
  • VPN Server(PPTP/Open VPN)
Router/Modem Processor Dual-Core CPU
Internal RAM Memory
Internal RAM Memory Type
Internal Flash Memory
LED Indicators
  • 1 x 2.4 GHz Wi-Fi LED
  • 1 x 5 GHz Wi-Fi LED
  • 1 x Internet LED
  • 1 x LAN LED
  • 1 x Power LED
Buttons
  • 1 x LED On/Off Button
  • 1 x Power Button
  • 1 x Reset Button
  • 1 x WPS Button
OS Support
Max. Power Consumption
PSU Type External
Security & VPN
Security Protocols
  • Access Control
  • Application Layer Gateway
  • IP and MAC Address Binding
  • SPI Firewall
  • URL Filter
  • WPA
  • WPA/WPA2-Enterprise (802.1x)
  • WPA2
  • WPA3
Firewall/NAT No
Management
  • DMZ
  • Port Forwarding
  • Port Trigger
  • Tether App
  • UPnP
  • Web-based GUI configuration.
VPN Support
  • L2TP Client
  • L2TP Server
  • OpenVPN Client
  • OpenVPN Server
  • PPTP Client
  • PPTP Server
Physical Specifications
Dimensions 260.2 x 38.6 x 135 mm (WxHxD)
Weight
Additional Specifications
Note N/A
Additional Information
Scan Code LN136119
Model Number Archer AX23
GTIN 4897098683927
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Direct
DOA Period:
28 days
RTB Period:
12 months
