Thermaltake TOUGHFAN EX12 Pro White PWM Fan - Swappable Edition (3 Pack)
Thermaltake TOUGHFAN EX12 Pro White PWM Fan - Swappable Edition (3 Pack)
Scan code: LN161845 Manufacturer code: CL-F171-PL12WT-A
£74.99
Add To Basket
Get it Thursday, 16 JulIn stock
  • Thumbnail 1 : Thermaltake TOUGHFAN EX12 Pro White PWM Fan - Swappable Edition (3 Pack)
  • Thumbnail 2 : Thermaltake TOUGHFAN EX12 Pro White PWM Fan - Swappable Edition (3 Pack)
  • Thumbnail 3 : Thermaltake TOUGHFAN EX12 Pro White PWM Fan - Swappable Edition (3 Pack)
  • Thumbnail 4 : Thermaltake TOUGHFAN EX12 Pro White PWM Fan - Swappable Edition (3 Pack)

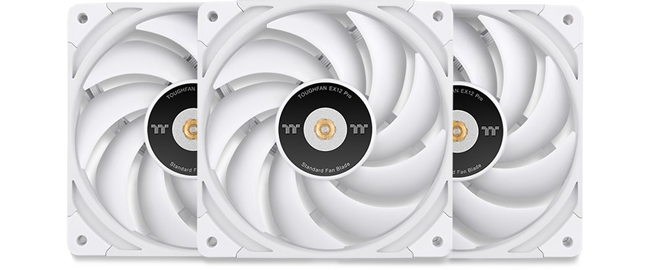

Thermaltake TOUGHFAN EX12 Pro White PWM Fan - Swappable Edition (3 Pack)

Thermaltake TOUGHFAN EX12 Pro, White, 3x 120mm Fans, 9 Blade, 500-2000rpm, PWM, 70.8CFM, Magnetic Connection
MORE INFO
MORE INFO

Scan code: LN161845 Manufacturer code: CL-F171-PL12WT-A
£74.99
£5.48 Next day delivery
Order now and receive it by Thursday, 16th July
Add To Basket
Get it Thursday, 16 JulIn stock
Pay in 3 interest-free payments of £25.00

Email me when the availability or price changes

  • By DPD On 16th Jul Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

  • Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • SCANPROTECT Protect against installation damage for 28 days.
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan.

TOUGHFAN EX12 Pro White PWM Fan – Swappable Edition 3 Pack from Thermaltake

CL-F171-PL12WT-A

Level up your cooling By adding the MagForce 2.0 and swappable fan blade design to the powerful TOUGHFAN Pro, the new TOUGHFAN EX Pro can provide supreme cooling performance with a quick magnetic connection, allowing you to swap the fan blades to fit installation & aesthetic preferences. Never compromise aesthetics for airflow direction ever again as the TOUGHFAN EX Pro White’s design allow your fans to always face forward!

120mmFan Diameter

500 ~ 2000 rpmFan Speed

25mmFan Depth

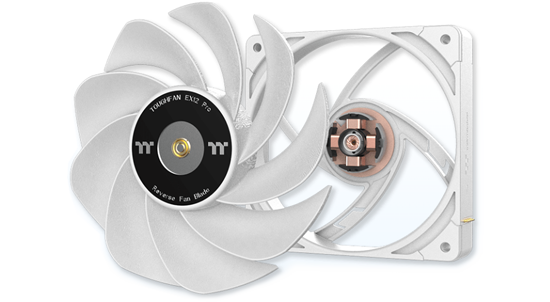

Swap out the Fan Blades as You Like

Swappable fans

High performance PWM Fans With new technology and craftsmanship, the TOUGHFAN EX12 Pro White has a maximum operating speed of up to 2000 RPM.

Standard fan bladesStandard Fan Blades can provide an static pressure of 3.19 mmH2O and 70.8 CFM (Max) airflow while maintaining under 22.6 dB-A noise level and can bring air from the front to the back.

Reverse Fan BladesReverse Fan Blades can provide an static pressure of 2.6 mmH2O and 64.21 CFM (Max) airflow while maintaining under 29.8 dB-A noise level and can bring air from the back to the front.

Specially Engineered Fan Design


features

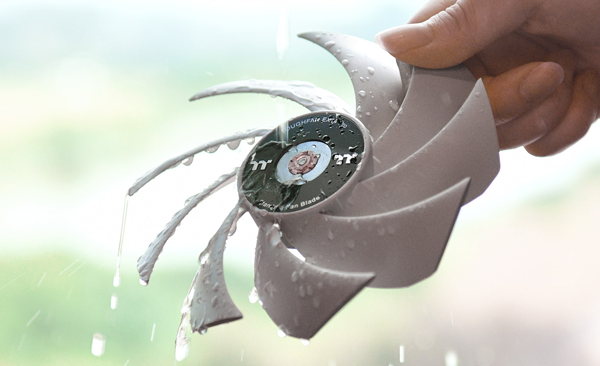

Cleaning Made Easy You can even pop out the fan blades and rinse them with water if you want. Just dry them thoroughly and apply the bearing lubricant included in the package if needed.


features

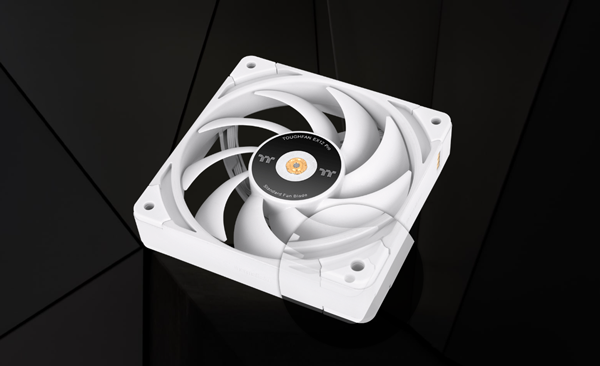

Anti-vibration Mounting System The TOUGHFAN EX Pro White is designed with 80% coverage for all corners, with the in-mold injection anti-vibration rubber pads dampening the fan’s vibration, allowing the fan to spin at a higher level while maintaining a low noise level.


features

Steady Connection with

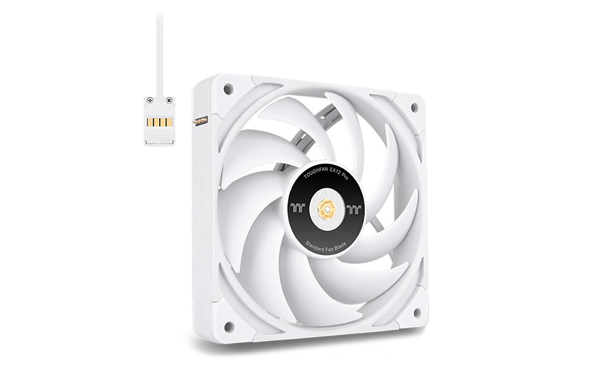

MagForce 2.0 Evolved from SWAFAN EX’s Magnetic Force Design, the new MagForce 2.0 has the Pogo pin contact pads are TWO times larger for greater tolerance. This enhancement significantly reduces the potential faulty alignment no matter if you are daisy-chaining fans together or connecting fans with cable, further boosting the installation efficiency and streamlining the building experience.

Improved Structure

fan design

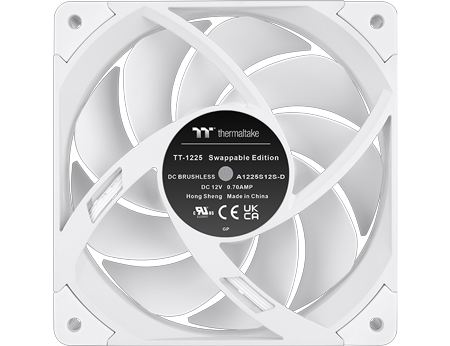

Built for a superior performance The TOUGHFAN EX Pro is designed with a square fan frame featuring a new outline that prevents air leakage effectively while installed on a chassis or radiator during operation. TOUGHFAN EX Pro White incorporates nine lengthened fan blades that have been restructured through the precision adjustment software, guaranteeing higher airflow and stronger static pressure could be delivered through the operation. The fan blades are also made from liquid crystal polymer (LCP), a compound that minimizes vibration at full-speed spinning.

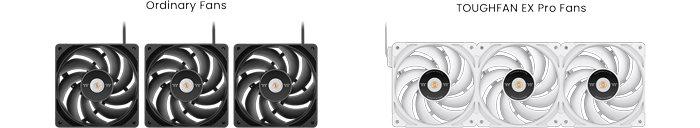

Say Goodbye to Excessive Cables

Connect your fans with TOUGHFAN EX Pro’s MagForce 2.0 Quick Connect Design and be free from messy cables!

cables design
Specifications
Pack Information
Edition TOUGHFAN EX12 Pro
Pack Type Triple (3) Fan Standalone Pack
Includes 3 x 120mm Fan/s
Individual Fan Specifications
Fan Diameter 120mm
Fan Depth 25 mm
Fan Speed 500 ~ 2000 rpm
Fan Blades 9
PWM Yes
Fan Specialization
Airflow Standard Fan Blade : 70.8 CFM(Single fan) / Reverse Fan Blade : 64.21 CFM(Single fan) CFM
Air Pressure Standard Fan Blade : 3.19 mm-H2O(Single fan) / Reverse Fan Blade : 2.60 mm-H2O(Single fan) mm H²O
Sound Level (dBA) Standard Fan Blade : 22.6 dB-A(Single fan) / Reverse Fan Blade : 29.8 dB-A(Single fan) dBA
Sound Level (Sone)
Motor Type
Bearing Type Hydraulic Bearing
Manual Speed Controller No
Material Plastic / Rubber
Fan Colour White
LED No
LED Colour
MTBF 40,000 Hours
Fan Fixing Screw Fixing
Cable length
Connectors 1 x 4-pin PWM
Additional Information
Scan Code LN161845
Model Number CL-F171-PL12WT-A
GTIN 4711475644830
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
24 months
Type:
Return to base
Manufacturer Contact Details
Manufacturer:
ThermalTake
