High-Resolution USB Audio/MIDI Interface
Tascam - 'US-4x4HR'

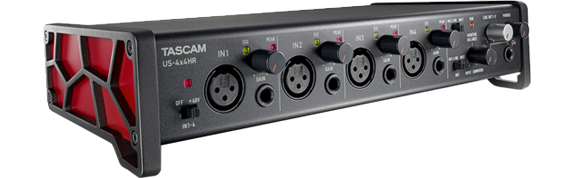

Tascam US-4x4HR

When two channels just aren't enough!The impressive ‘US-4x4HR’ from Tascam represents the largest model of the new ‘US-HR’ series of USB audio interfaces, and is a direct evolution frpm Tascam’s hugely popular ‘US-4x4’. The US-4x4HR offers four mic/line inputs, two of which are can be used for direct connection to your guitar/bass, four balanced line outs, dual headphone input and broad MIDI I/O connectivity.

Tascam’s US-4x4HR is the perfect solution for those who wish to track multiple sources simultaneously such as dual vocals, or content creators wishing to capture numerous voices, or even for tracking acoustic drums! The inclusion of the loopback function and swift support for ‘Open Broadcaster Software’ (OBS Studio) also makes the US-4x4HR the perfect choice for two-channel podcasters and live streamed events!

greater sound than ever!The hugely flexible US-4x4HR brings a whole range of impressive features to the table, such as super-low latency, slick Ultra-HDDA mic preamps and 48V phantom power, alongside a brilliant range of powerful software so you can get to work producing your audio projects in stunning detail right away!

192kHzMax Sample Rate

20Hz – 40kHzFrequency Response

110dBS/N Ratio

• Advanced version of Tascam's popular US-4x4 with even greater sound quality
• Can be used with Windows, Mac, iOS, iPadOS
• Standard 6.3-mm headphones output
• Low-latency monitoring function

Outstanding Performance!

Tascam US-2x2HR

Ultra-HDDA microphone preamplifier!Such high resolution reproduction in the US-HR series has been achieved thanks to Tascam's tireless dedication to recreating sound as close to the original as possible. Therefore, the in-house developed Ultra-HDDA mic preamp combined with a newly improved audio circuit, delivers enhanced audio performance with the most transparent and low-noise sound!

world-renowned softwareThe US-HR models come bundled with world-renowned software that will enhance the user's production workflow. At the core of music production, Steinberg's Cubase LE/Cubasis LE 3 DAW is included, along IK Multimedia's Sample Tank SE, which comes free of charge with a massive 30 GB sound library encompassing more than 2,000 different musical instruments.

Tascam - 'US-HR' Series

The Tech Spec

Features Specification
Maximum input level +10 dBu
Maximum input gain 56dB
Maximum output level +20 dBu
Mic preamp equivalent input noise −128 dBu
S/N ratio 108 dB / 110 dB
Distortion (THD+N, mic to computer) 0,0013 %
Crosstalk ≥ 95 dB
Power supply USB / AC adapter (included)
Specifications
Computer Interface Type

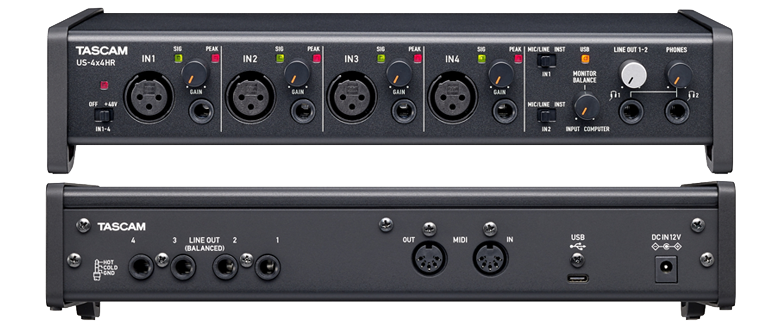

Connections (Input)
  • 2 x 6.35mm (1/4") Instrument
  • 2 x 6.35mm (1/4") TRS - Insert
  • 4 x XLR
Mic Preamps (Max) 4
Instrument Inputs (Max) 4
Phantom Power Yes
Sample Rate (Max) 192 kHz
Bit Resolution 24
iPad Compatible Yes
Connections (Output)
  • 2 x Headphone (TRS 6.35mm Jack)
  • 2 x Stereo TRS 1/4" Monitor Outputs
Dimensions (mm)
DSP Processing No
Misc. Notes
Additional Information
Scan Code LN111930
Model Number US-4x4HR
GTIN 4907034132768
