Tascam 102i USB Audio Interface
Tascam 102i USB 10x4 Audio/MIDI Interface With DSP Mixer, 24-bit/192 kHz, MIDI I/O
Email me when the availability or price changes
Finance this product
- From £16.58 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
USB Audio/MIDI Interface With DSP Mixer (10 in, 4 out)
Tascam - SERIES 102i
perfect for small studiosThe Tascam compact SERIES 102i audio/MIDI interface is perfect for guitarists, songwriters and owners of small studios. Offering up to ten audio inputs and two audio outputs to a Mac or Windows computer or an iOS device, for recording and playback at up to 192 kHz / 24 bit and with the superb audio performance one expects from Tascam. Controllable with included custom software, this versatile USB interface is equipped with a powerful DSP input and output mixer with built-in digital reverb, compressor, phase invert and four-band EQ for each channel. Having this processor included internally removes all latency issues and takes the load off the computer allowing it to process the audio more efficiently. A new USB driver offers very high stability, ensuring reliable performance throughout all phases of your projects.
The two analogue mic/line/instrument combo inputs are fitted with Tascam’s transparent, natural-sounding, low-noise Ultra-HDDA mic preamps and individually switchable phantom power (+48 volt). A maximum of ten inputs (four at 192 kHz) are available when using the multi-channel optical port which can accept up to eight channels of audio input from an ADAT- or S/MUX-compatible device. The SERIES 102i also offers dual headphone outputs with dedicated level control and two balanced 6.3-mm line outputs for versatile monitoring. And you can connect your favorite MIDI devices to the rear-panel MIDI input and output to use them with your recording software.

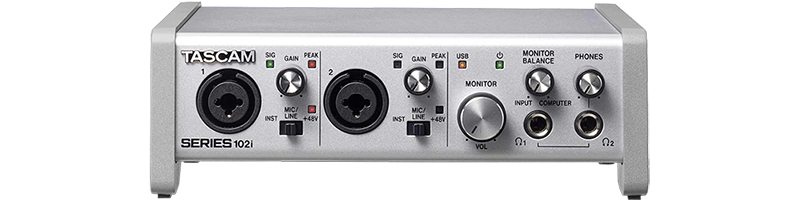

The angled tabletop design gives easy access to all front-panel controls. You can quickly adjust the monitor output level with a large front-panel Monitor knob, and use the handy Monitor Balance control to mix live input with computer playback for zero-latency overdubs.
at a glance
• Provides up to ten audio inputs and two audio outputs to a Windows or Mac computer or iOS device
• Two 6.3-mm standard headphones outputs with level control (18 mW per channel)
• Power supply by dedicated PS-P1220E AC adapter (included)
• USB Audio Compliance 2.0 for iOS connection
• Audio resolution up to 192 kHz / 24 bit
• MIDI input, MIDI output
• Rugged all-metal chassis
Start Your Projects Immediately
Bundled softwareWhile free, easy-to-use Tascam control software helps you manage faders, processing and routing of any audio input (analogue, optical and USB) to any audio output, the interface comes also with Steinberg Cubase LE DAW software for Windows and macOS and Cubasis LE app for iPad. With IK Multimedia AmpliTube guitar effects/modeling software and T-RackS mastering software you get the tools you need to deliver high-quality, polished recording projects. The IK Multimedia software is provided in both free standing and plug-in versions for complete, versatile recording, mixing, and mastering.
iZotope award-winning plug-in includedNeutron Elements provides an easy, fast way to a professional mix – and it is included with every purchase of a Tascam SERIES interface. Neutron brings mix workflows to the 21st century with four modern mixing tools in one mothership plug-in, featuring mix assistance powered by machine-learning with unrivaled quality and speed.
Expandable Input Capability
Dual Headphones MonitoringEasily add more input channels to accommodate future growth by using external microphone preamplifiers with S/MUX optical inputs to record drums, guitars, keyboards, vocals, and more. Each S/MUX optical port can accept up to 8 channels of audio input from an ADAT- or S/MUX-compatible device. The SERIES interface also has two individual headphones amplifiers powerful enough for dual headphones monitoring.

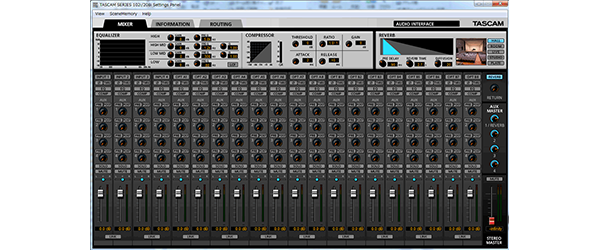

Control Software for Matrix Mixing, Effects Processors and More
Built-in DSP Effects and ProcessingFree, easy-to-use Tascam Control software manages faders, processing and the ability to route any audio input (analogue, optical and USB) to any audio output. A DSP input and output mixer is complemented with digital reverb, compressor, phase invert and four-band EQ for each channel. Having this processor included internally eliminates all latency issues and takes the load off the computer allowing it to process the audio more efficiently. Tascam SERIES interfaces support tablets and other mobile devices and are compatible with many applications to meet your recording needs now and in the future.
The Tech Spec
| Features | Specification | Sampling Frequencies | 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz, 176.4 kHz, 192 kHz |
|---|---|
| Quantization Bit Depth | 16/24-bit |
| Analogue Audio Inputs | |
| Mic inputs (when the input switch set to MIC/LINE) | XLR-3-31 (1: GND, 2: HOT, 3: COLD) |
| Input Impedance | 1.5 kΩ |
| Nominal Input Level | −64 dBu (0.0005 Vrms, GAIN knob at MAX) −6 dBu (0.388 Vrms, GAIN knob at MIN) |
| Maximum Input Level | +10 dBu (2.45 Vrms) |
| Maximum Gain | 58 dB |
| Instrument Inputs (when the input switch is set to INST) | 6.3-mm standard TS jack (Tip: HOT, Sleeve: GND) |
| Input Impedance | ≥1 MΩ |
| Nominal Input Level | −64 dBV (0.0006 Vrms, GAIN knob at MAX) −6 dBV (0.501 Vrms, GAIN knob at MIN) |
| Maximum Input Level | +10 dBV (3.162 Vrms) |
| Maximum Gain | 58 dB |
| Line Inputs (when the input switch set to MIC/LINE) | 6.3-mm TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Input Impedance | 10 kΩ |
| Nominal Input Level | −54 dBu (0.0015 Vrms, GAIN knob at MAX) +4 dBu (1.228 Vrms, GAIN knob at MIN) |
| Maximum Input Level | +24 dBu (12.282 Vrms) |
| Maximum Gain | 58 dB |
| Analogue Audio Outputs | |
| Line Outputs (balanced) | 6.3-mm TRS jack (Tip: HOT, Ring: COLD, Sleeve: GND) |
| Output Impedance | 230 Ω |
| Nominal Output Level | +4 dBu (1.228 Vrms) |
| Maximum Output Level | +20 dBu (7.75 Vrms) |
| Headphone Outputs (PHONES) | Standard 6.3-mm stereo jack |
| Maximum Output Power (THD+N ≤0,1 %, 32 Ω) | 45 mW + 45 mW |
| Output Impedance | 51.5 Ω |
| Load Impedance | 16–600 Ω |
| Digital Audio Inputs/Outputs | |
| OPTICAL IN (S/MUX) connector(s) | Optical (JEITA RC-5720C) |
| Signal Format | Multi-channel optical format (Supports S/MUX when 88.2 kHz, 96 kHz, 176.4 kHz or 192 kHz.) |
| Other Inputs and Outputs | |
| USB | 4-pin USB B-type |
| Transfer Rate | USB 2.0 Hi-speed (480 MBit/s) |
| MIDI Input | 5-pin DIN |
| Format | Standard MIDI format |
| MIDI Output | 5-pin DIN |
| Format | Standard MIDI |
| Audio Performance | |
| Mic amp EIN (equivalent input noise) | ≤−129 dBu |
| Frequency Response (mic/line input to computer) | At 44.1/48 kHz: 20 Hz – 20 kHz, +0/–0.4 dB (JEITA) At 88.2/96 kHz: 20 Hz – 40 kHz, +0/–0.8 dB (JEITA) At 176.4/192 kHz: 20 Hz – 80 kHz (JEITA) |
| S/N Ratio | 109 dB (Mic input to Computer, Gain knob at minimum, 20-kHz low-pass filter, A-weighted) 110 dB (Computer to Line output, MONITOR knob at maximum, 20-kHz low-pass filter, A-weighted) |
| Distortion (THD + N) | 0,0016 % (Mic input to Computer, 1 kHz sine wave, Gain knob at minimum, 20-kHz low-pass filter) 0,0023 % (Line input to Computer, 1 kHz sine wave, Gain knob at minimum, 20-kHz low-pass filter) 0,0014 % (Computer to Line output, 1 kHz sine wave, MONITOR knob at maximum, 20-kHz low-pass filter) |
| Crosstalk | ≥100 dB (MIC/LINE input to LINE output 1-2, 1 kHz sine wave, gain knob at minimum) |
| Computer Hardware Requirements | |
| Windows | Windows computer with a USB port that supports at least USB 2.0 or USB 3.0 |
| CPU/Processor Speed | 2 GHz or faster dual core processor (x86) |
| Memory | 2 GB or more |
| Mac | |
| Supported Operating Systems | Mac with a USB port that supports at least USB 2.0 or USB 3.0 |
| CPU/Processor Speed | 2 GHz or faster dual core processor (operation confirmed with Intel and Apple Silicon M1 or M2) |
| Memory | 2 GB or more |
| iOS | Apple iOS device |
| Supported Audio Drivers | Windows: USB Audio Class 2.0, ASIO 2.2, WDM (MME), MIDI Mac: Core Audio, Core MIDI iOS device: Core Audio for iPhone |
| Power Supply and Other Specifications | |
| Power | DC 12 V AC adapter (PS-P1220E) |
| Power Consumption | 7.2 W |
| Dimensions (W × H × D) | 186 mm × 65 mm × 160 mm |
| Weight | 1.1 kg |
| Permissible Operating Temperature Range | 5–35 °C |
