Tascam TM-90BM Boundary Microphone

Tascam TM-90BM Boundary Condenser Microphone, Unidirectional, Bass Tilt Switch, Includes Carry Case and Cable

Scan code: LN86302 Manufacturer code: TM-90BM Request call
Spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
From £10.69 / month (APR 14.9%)
Monthly Payment: £20.65
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.00
Total inc. interest: £123.89
Monthly Payment: £10.69
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £119.00
Total inc. interest: £128.19
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
Mid Range
Free Delivery Delivery options Free By DPD On 20th Mar 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview TPerfect for meeting rooms, podcasts film production and studio work. the TASCAM TM-90BM Boundary Microphone provides a low profile option for many common audio recording tasks. Designed primarily for tabletop use, the TM-90BM captures sound by way of a hemispherical pickup pattern and is a great way to capture recordings of podcast groups or meeting attendees without having to bother with multiple mics and submixers. The TM-90BM may also be placed on floors or walls to capture drum kits, acoustic pianaos, guitar, percussion and more.

The TASCAM TM-90BM kit includes the TM-90BM Boundary Microphone, a hard carry case and a dedicated patch cable wich terminates in a male XLR connector.

Broad coverage for a variety of applications
While the TM-90BM does feature a hemispherical pickup patter on the Horizontal plane, it is also a uni-directional condenser mic on the vertical plane, and should be positioned with the TASCAM logo facing the audio source. And being a condenser microphone, the TM-90BM requires Phantom power which can be supplied remotely from your mixer, Mic preamp or audio interface as well as through the use of an on-board dry-cell battery.

Low Profile Design
With a height of only 24 mm, the TM-90BM is easy to place outside of the view of the audience or the camera. In addition, the TM-90BM features a sleek matte black finish to aid in a stealthy approach to meeting room and set design.

Proven High Sound Pressure Design for capturing loud sounds (up to 140dB SPL)
The TM-90BM is able to easily handle louder sound sources making it an ideal choice for use as a room mic when recording drums and percussion.

Bass Tilt Switch to customize low frequency response

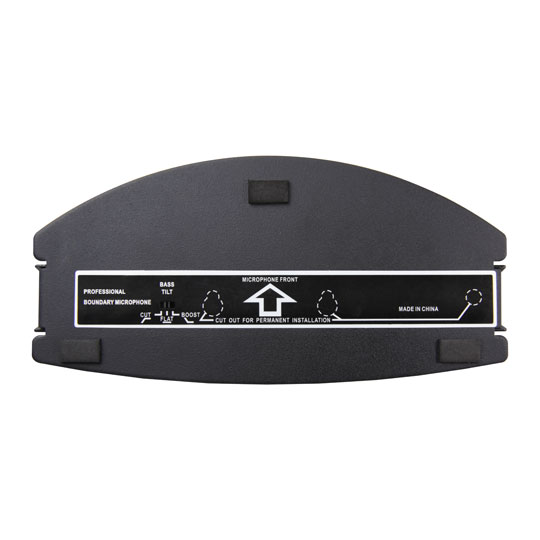

When capturing voices in a room, low frequencies may cause unwanted rumble or make speech difficult to understand. To address this, the TM-90BM features a unique BASS TILT switch mounted on the bottom of the unit. This switch can also be used to subtly boost the low end when recording musical instruments to add a welcome warmth and fullness to the sound. Features • Ideal for personal broadcasting with two or more persons
• Half super-cardioid polar pattern
• Unobtrusive design and colour, only 24 mm high, perfect for video podcasts
• Frequency response optimised for speech
• High sound pressure resistance
• Switchable low-frequency filter on bottom side (CUT/FLAT/BOOST)
• Requires phantom power (DC 9–52 V)
• Dedicated connection cable included

Technical Specifications
• Element: Back-electret condenser
• Polar pattern: Half-supercardioid
• Frequency response: 50 Hz – 18 kHz
• Sensitivity: –35 dB ±3 dB (0 dB = 1 V/Pa at 1 kHz)
• Load impedance: > 1 kO
• Output impedance: 150 O
• Output connector: 3-pin XLR, male (using the included cable)
• S/N ratio: 68 dB
• Maximum permissible SPL: 140 dB (1 kHz, 1% THD)
• Phantom power required: DC 9–52 V, 3 mA
• Weight: 260 g (without cable)
• Dimensions (W × H × D): 170 mm × 24 mm × 82 mm (excluding protrusions)
Type Condenser
Polar Pattern (Direction) Hemispherical
Impedance 150 ohms
Sensitivity -35 dB ±3 dB (0 dB = 1 V/Pa at 1 kHz)
Frequency Response 50 Hz - 18 kHz
Wired / Wireless
Connectors 1 x 3 Pin XLR
Weight 260 g
Including Shock Mount No
Including Pop Shield No
Including Mic Clip No
Powered By
  • Battery
  • Phantom
