Tascam Sonicview 24 Digital Mixing Console Tour Package
Tascam - Sonicview 24 Digital Mixing Console, Tour Package including Stage Box and CAT 6 Cable
Email me when the availability or price changes
Finance this product
- From £219.90 / month (APR 16.9%) for 48 months or 0% for 4 months
- With a 10% deposit from just £194.79 / month (APR 15.9%)

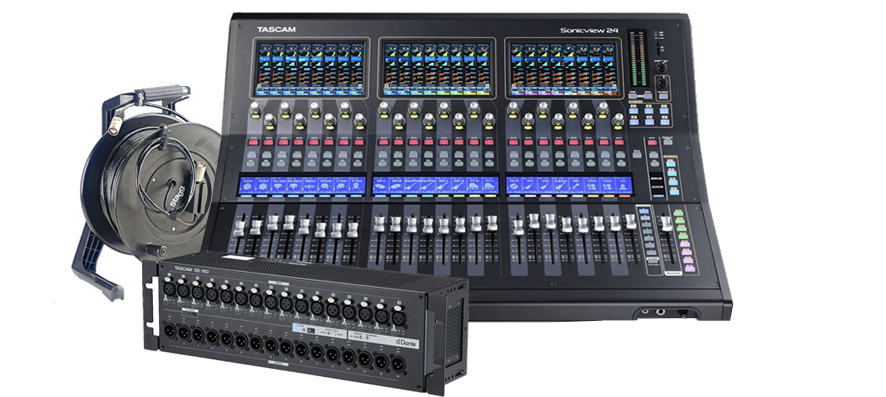

Tascam Sonicview 24 Digital Mixing Console,
Stage Box and CAT5E etherCON Cable Drum
Tascam Sonicview 24 Digital Mixing Console BundleScan Pro Audio's Live Sound and PA division is proud to offer this exclusive bundle comprised of Tascam's Sonicview 24 Digital Mixing Console, SB-16D 16-in/16-out Dante Stage Box and a Custom Lynx 30m Rean CAT5E etherCON Cable Drum. With the tools included in this bundle you can elevate your live experience levels far exceeding than what you may have previously thought possible.
what's included?
• 1x Tascam Sonicview 24 Digital Mixing Console
• 1x Tascam SB-16D 16-in/16-out Dante Stage Box
• 1x Custom Lynx 30m Rean CAT5E etherCON Cable Drum
Digital Mixing Console
Tascam - Sonicview 24
Digital Mixer with Multi-environment Touch ScreensTASCAM have a long history of creating high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a new standard. With TASCAM Sonicview series, they have created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customizable touch screens and user-definable buttons, along with motorized faders and intuitive control software.
TASCAM Sonicview mixing consoles integrate seamlessly with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.
At A Glance
• TASCAM VIEW interface allows for intuitive operation with three different view modes
• 3 7" colour touchscreens offers multiple views at the same time
• 22 flexible output busses plus stereo sum with 31-band graphic EQ
• 32-bit, 96 kHz A/D and D/A conversion
• 44 input channels (40 mono, 2 stereo)
Ultimate Versatility
Extensive FeaturesThe TASCAM Sonicview 24 provides a generous 44 input channels (40 mono channels and 2 stereo channels), 22 flex output buses, the L/R main bus and an internal SD/USB stereo audio recorder. Motorised channel faders in three banks of eight, plus a motorised fader for the main stereo bus are also included.
Above each bank of channel faders is a colour touch panel that allows you to view entire mixer channels, or get down to details, controlling each parameter with your fingertip. Save fader settings and instantly recall them later to continue where you left off. Check levels in a mix or submix at a glance and adjust them during mixdown with either the physical faders or the touchscreen. Your changes will be instantly updated in both.
TASCAM Sonicview Series - Next-Generation Digital Mixing Console

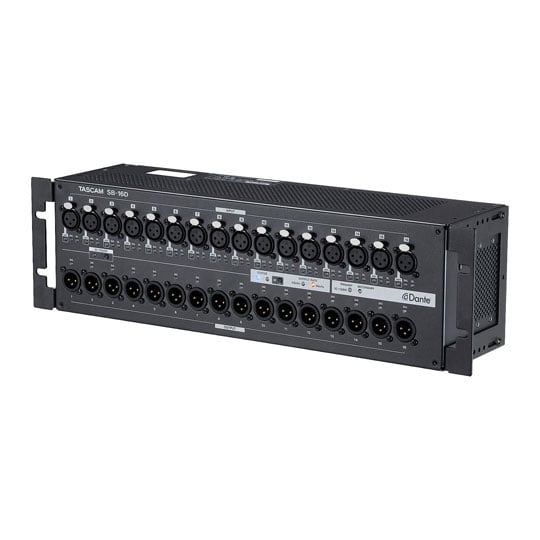

16-in/16-out Dante Stage Box
Tascam - SB-16D
Top-Quality Audio Begins HereThe Tascam SB-16D is a Dante-enabled active stage box with 16 analogue inputs and 16 analogue outputs. Equipped with 32-bit A/D converters and Class 1 HDIA microphone preamps, the SB-16D analogue interface captures your audio in the highest quality right at the start of the signal path. You can use multiple devices simultaneously in a Dante network – placed on the floor or mounted in a rack.
The SB-16D has the same performance and hardware quality as Tascam Sonicview live recording consoles, offering all the advantages of Dante networking, combined with seamless integration with Sonicview mixers and other Dante-enabled products from Tascam – and other manufacturers.
16 x XLRMic Preamps
2 x Dante, 1 x DB-25 (GPIO)Data I/O
16 x 16Channels
at a glance
• Dante-enabled stage box and interface with 16 analogue audio inputs and outputs
• Redundant Dante operation using Primary/Secondary lines
• Up to 96 kHz sampling frequency at 32-bit resolution
• Fully controllable from connected Sonicview mixer
• Equipped with etherCON-compatible connectors
Seamless Integration with Sonicview Mixers
easy to useWhen an SB-16D stage box is connected to a Tascam Sonicview, microphone gain can be remotely controlled from the mixing console, and all inputs and outputs come up on the touchscreens for hassle-free ease of use.
Along with this, the SB-16D is equipped with a GPIO interface with eight inputs and outputs. These expand to 16 GPIO ins and outs when connected to a Sonicview mixer, facilitating parallel control.
A Complete Package With the Features You Need
Seamless operationEasily accommodate large ensembles and extensive installed Dante systems using 16 XLR mic/line inputs and 16 XLR line outputs. If you need more, just network multiple SB-16Ds. The mic/line inputs are extremely quiet, achieving –128 dBu EIN and allowing a maximum input level of +32 dBu.
Each input channel offers switchable 48-volt phantom power with indicator as well as signal and overload LEDs for monitoring the input level. Level indicators on the line outputs show the presence of signals.
Superior Networking
Reliable OperationThe SB-16D supports Dante Domain Manager in addition to AES67 and SMPTE 2110 interoperability.
Two Dante ports equipped with etherCON-compatible network connectors allow for redundant streams with robust connections. For increased system reliability, a DC input is provided for a redundant power supply (not included).
Full Remote Control
Use it anywhereIf your SB-16D is onstage, backstage, in a control room or in an equipment closet, you’re always in full control with the free software Tascam IO Control for Windows, macOS and iPadOS.
Manage your stage box from virtually anywhere in the venue, even when the SB-16D is used in standalone mode.
Class 1 HDIA Mic Preamps and 32-Bit ADCs
Best-in-Class SoundWith Sonicview mixers, each microphone input of the SB-16D feeds a Tascam Class 1 HDIA (High Definition Instrumentation Architecture) preamp – the finest mic preamplifier Tascam have ever made.
Thanks to an instrumentation amplifier with incredibly good noise characteristics in the first stage, these microphone preamps exhibit excellent equivalent input noise (EIN), signal-to-noise ratio, distortion ratio and frequency response.
The microphone inputs can handle signal levels up to +32 dBu, providing plenty of headroom for sudden level increases. The combination of Class 1 HDIA preamps, 32-bit ADCs and a sampling frequency of 96 kHz results in best-in-class sound that perform every time.
Flexible Positioning
on the Floor or in a 19-Inch RackIf you want a networked floor box for stage use, or rack-mounted inputs and outputs for recording and broadcast studios and commercial installs, the SB-16D gives you the flexibility you need.
It can be installed in an EIA rack (3U) with the included brackets, which offer two angle options. Mount the jack panel on the front of the rack and take advantage of the SB-16D’s cable hole to conveniently and safely route connected cables in the back.
Large rubber feet keep it stable, even with cables connected, when the SB-16D is used as a floor box. Multiple stage boxes can be stacked for ease of transportation and stability during installation. A handle is also included, making the SB-16D easy to carry.

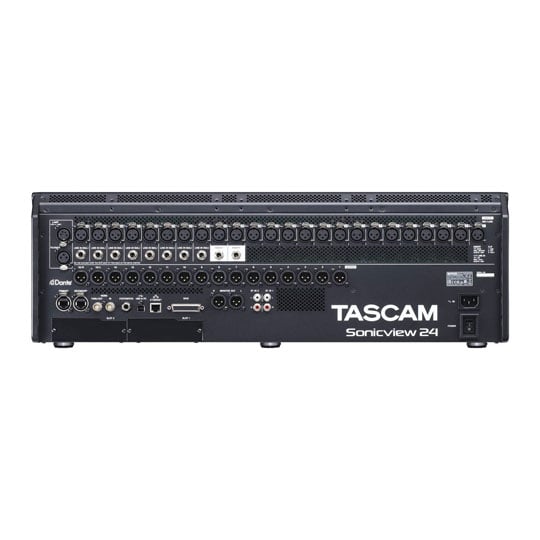

Tascam - Sonicview 24 Digital Mixing Console
The Tech Spec
| Features | Specification | Analogue Inputs | 24 Channels (1-24 Balanced XLR, 15+16 Insert 1/4", 17-24 Line In 1/4") 2x Stereo RCA 1x World Clock In 1x Footswitch 1x Talkback Mic (XLR) 1x Lamp (4pin 12v 5W) |
|---|---|
| Analogue Outputs | 2x Main Monitor (XLR) 16x XLR (15+16 Stereo L+R) 1x World Out/Thru 1x Stereo Headphones 1/4" Jack |
| Digital Inputs/Outputs | 1x USB Type B (32 Inputs + 32 Outputs) Sample Rates: 48kHz, 96kHz Bit Depth: 32 bit Dante Primary/secondary: ehterCON Cat5e compatible Dante Channels: 64 (48kHz), 32 (96kHz) |
| Operating System for Connected Computers | USB Audio interface: 64-bit Windows or Mac compatible computer with a USB 2.0 Remote control: 64-bit Windows or Mac compatible computer with network access or Apple iPad |
| Storage Media | SDHC cards (8–32 GB, Class 10 or better) SDXC cards (64–128 GB, Class 10 or better) USB flash drives (8–128 GB, playback only) |
| File Systems | SDHC card, USB storage: FAT32 SDXC card, USB storage: exFAT |
| Recording/Playback Formats | WAV/BWF: Recording: 48 kHz, 96 kHz, 24 bit, 2 channels Playback: 48 kHz, 96 kHz, 16/24 bit, 2 channels MP3 Playback: 44.1 kHz, 48 kHz, 32–320 kbit/s AAC Playback: 44.1 kHz, 48 kHz, 64–320 kbit/s |
| Power Supply and Other Specifications | Main displays: 3 7-inch (17,8 cm) colour touchscreens, 800 × 480 px Channel displays: 3x monochrome LC displays, 384 × 68 px Mains power: AC 100–240 V, 50/60 Hz Power consumption: 65 W |
| Permissible Operating Temperature Range | 0–40 °C |
| Dimensions (width × height × depth) | 691mm × 228mm × 554mm |
| Weight | 18 kg |
Tascam - IF-MTR32
The Tech Spec
| Features | Specification | Max simultaneous recording/playback tracks | 32 (48 kHz), 16 (96 kHz) (simultaneous punch-in/out with all available tracks) |
|---|---|
| Undo/Redo | 1 step |
| Record functions | Pre-recording (2 seconds), Auto-recording, Marks |
| File protection | Auto-saving every 60 seconds |
| Sampling rate | 48 kHz, 96 kHz |
| Bit depth (recording) | 24 bit, 32 bit |
| Bit depth (playback) | 16 bit, 24 bit, 32 bit |
| Type | SDHC, SDXC (UHS I or higher) |
| Capacity | up to 512 GB |
| Dimension (W × H × D) | 107 mm × 34 mm × 157 mm |
| Weight | 0.13 kg |
| Included times | IF MTR32, TASCAM ID registration guide, Owner's Manual with warranty |
Tascam - SB-16D
The Tech Spec
| Features | Specification | Type | Dante Stage Box |
|---|---|
| Compatibility | Tascam Sonicview Series |
| Channels | 16 x 16 |
| Inputs - Mic Preamps | 16 x XLR |
| Phantom Power | 16 Channels |
| Outputs - Main | 16 x XLR |
| Data I/O | 2 x Dante, 1 x DB-25 (GPIO) |
| Computer Connectivity | Ethernet |
| Software | Tascam IO Control |
| OS Requirements - Mac | macOS 10.15 or later |
| OS Requirements - PC | Windows 10 or later |
| Rackmountable | Yes |
| Power Source | Standard IEC AC cable, Ext. DC In (Optional redundant power supply not included) |
| Dimensions | Width: 17.88" Height: 5.52" Depth: 7.08" |
| Weight | 9.93 lbs. |
