Digital Mixing Console
Tascam - Sonicview 16

Tascam Sonicview 16

Digital Mixer with Multi-environment Touch ScreensTASCAM have a long history of creating high-quality digital mixers, culminating with the legendary DM-4800, a workhorse mixer that set a new standard. With TASCAM Sonicview series, they have created an entirely new line of digital mixing consoles that incorporate the latest technology and make it easy to see and control all of the parameters you want, when you want, with completely customizable touch screens and user-definable buttons, along with motorized faders and intuitive control software.

TASCAM Sonicview mixing consoles integrate seamlessly with the rest of your system, thanks to built-in Dante networking, a 32-bit/96 kHz multi-channel USB audio interface, and plenty of I/O. No-compromise audio quality, including 54-bit float-point FPGA mixing, combines with ample signal processing, an expansion slot for additional connectivity, and wireless remote control to make TASCAM Sonicview mixers a next-generation choice for touring, installed sound, recording studios, and broadcasting.

At A Glance • TASCAM VIEW interface allows for intuitive operation with three different view modes
• Two 7-inch colour touchscreens offers multiple views at the same time
• 22 flexible output busses plus stereo sum with 31-band graphic EQ
• 32-bit, 96 kHz A/D and D/A conversion
• 44 input channels (40 mono, 2 stereo)

Ultimate Versatility

Tascam Sonicview 16

Extensive FeaturesThe TASCAM Sonicview 16 features 16 physical input channels with motorized faders and TASCAM's top-of-the-line Class 1 HDIA microphone preamps, and with its smaller frame size it can also be rack-mounted.

The TASCAM Sonicview 16 features a generous 44 input channels (40 mono channels and 2 stereo channels), 4 stereo FX return channels, 22 flex output buses, and the L/R main bus.

TASCAM Sonicview Series - Next-Generation Digital Mixing Console

The Tech Spec

Features Specification

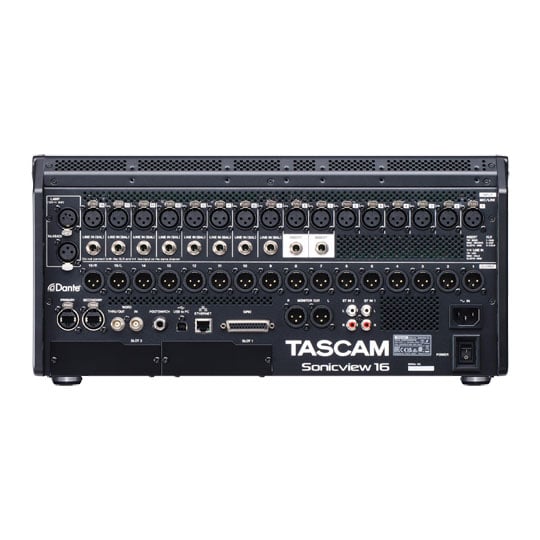

Analogue Inputs 16 Channels (1-24 Balanced XLR, 7+8 Insert 1/4", 9-16 Line In 1/4")
2x Stereo RCA
1x World Clock In
1x Footswitch
1x Talkback Mic (XLR)
1x Lamp (4pin 12v 5W)
Analogue Outputs 2x Main Monitor (XLR)
16x XLR (15+16 Stereo L+R)
1x World Out/Thru
1x Stereo Headphones 1/4" Jack
Digital Inputs/Outputs 1x USB Type B (32 Inputs + 32 Outputs)
Sample Rates: 48kHz, 96kHz
Bit Depth: 32 bit
Dante Primary/secondary: ehterCON Cat5e compatible
Dante Channels: 64 (48kHz), 32 (96kHz)
Operating System for Connected Computers USB Audio interface: 64-bit Windows or Mac compatible computer with a USB 2.0
Remote control: 64-bit Windows or Mac compatible computer with network access or Apple iPad
Storage Media SDHC cards (8–32 GB, Class 10 or better)
SDXC cards (64–128 GB, Class 10 or better)
USB flash drives (8–128 GB, playback only)
File Systems SDHC card, USB storage: FAT32
SDXC card, USB storage: exFAT
Recording/Playback Formats WAV/BWF: Recording: 48 kHz, 96 kHz, 24 bit, 2 channels Playback: 48 kHz, 96 kHz, 16/24 bit, 2 channels
MP3 Playback: 44.1 kHz, 48 kHz, 32–320 kbit/s
AAC Playback: 44.1 kHz, 48 kHz, 64–320 kbit/s
Power Supply and Other Specifications Main displays: 2 7-inch (17,8 cm) colour touchscreens, 800 × 480 px
Channel displays: 3x monochrome LC displays, 384 × 68 px
Mains power: AC 100–240 V, 50/60 Hz
Power consumption: 65 W
Permissible Operating Temperature Range 0–40 °C
Dimensions (width × height × depth) 472mm × 228mm × 554mm
Weight 13 kg
Specifications
Total Channels 44
Max Mic Inputs 24
Computer Interface
Mixer Type Digital
Computer Interface Channels 0
Total Aux Channels 0
Subgroup Ous 0
Max Line Inputs 8
Analogue Insert Points No
Internal FX Yes
Flying Faders Yes
Additional Information
Scan Code LN137193
Model Number Sonicview 16
GTIN 4907034132881
