Scan code: LN132984 Manufacturer code: MZ-123BT

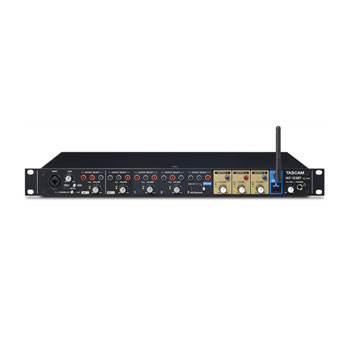

Tascam MZ-123BT Multi-Zone Audio Mixer with Bluetooth

Tascam MZ-123BT Compact Zone Mixer With Bluetooth, For Commercial Retail Applications, 2 x Microphone and 2 x Line Input

Thumbnail 1 : Tascam MZ-123BT Multi-Zone Audio Mixer with Bluetooth Thumbnail 2 : Tascam MZ-123BT Multi-Zone Audio Mixer with Bluetooth
Scan code: LN132984 Manufacturer code: MZ-123BT
Order in the next 1 hr 38 mins and get it tomorrow
£399.00
Get it Tomorrow, 23 MayIn stock
FREE DELIVERY ON YOUR ENTIRE BASKET
From £19.49 / month (APR 16.9%) or 0% for 4 months
Monthly Payment: £36.15
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £399.00
Total inc. interest: £433.77
Monthly Payment: £19.49
Instalment Rate: 16.9% p.a. (fixed)
Cost of purchase: £399.00
Total inc. interest: £467.56
Example
Minimum Spend: £99
Instalment Rate: N/A
Cost of purchase: £99
Total inc. interest: £99
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

Representative Example:

Purchase Rate: 23.9% p.a. (variable)

Representative: 23.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £10.60 / month (APR 19.9%)
Delivery Options
  • By DPD On 23rd May to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Compact Multi-Zone Audio Mixer with Bluetooth
Tascam - MZ-123BT

Tascam - MZ-123BT

A compact analogue mixer for background music
and announcements in up to three zones

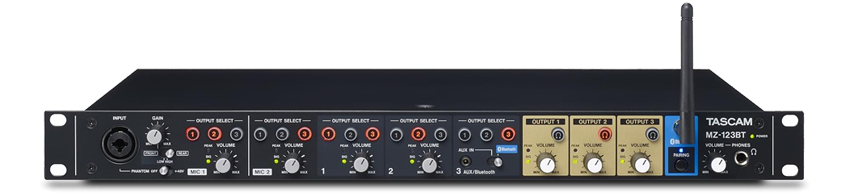

The Tascam MZ-123BT is a compact 1U multi-channel, multi-zone audio mixer for professional installation. It provides versatile routing, mixing and distribution of up to three channels of music and announcements for a wide range of commercial applications, including retail, restaurants, bars, cafes, hotels, or any environment that requires independent audio routing and announcement capabilities.

Featuring a simple, intuitive layout for ease of operation, the Bluetooth-enabled MZ-123BT comes equipped with two versatile mic inputs and automatic attenuation of background music for superior intelligibility during announcements or paging.

At a glance • Slim rackmount mixer that can flexibly assign background music and mic announcements to three different output zones
• Built-in Bluetooth receiver for wireless audio playback from smartphones or tablets
• For Commercial Retail Applications
• Mono or Stereo Operation

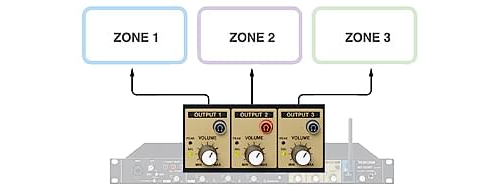

Audio Control and Routing for Separate Zones

4K Recording

quick & easy routingThree discrete zone outputs with volume control allow routing of background music to desired areas or rooms in a restaurant, hotel, retail store or other commercial environment.

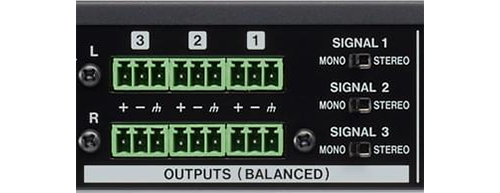

Three Outputs with Euroblock Connectors

4K Recording

Euroblock connectors for fixed installationsThree pairs of balanced stereo outputs featuring Euroblock connectors for fixed installations are accessible from the back panel. Each output can be set to output audio in mono or stereo.

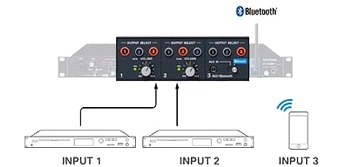

Three Stereo Input Channels for Playback Sources

back

Two stereo line inputs (RCA, unbalanced) allow connection of AV equipment such as Tascam CD / Solid State Players or similar playback devices. Channel 3 has an Aux/Bluetooth input that allows an additional audio source to be connected via Bluetooth or 3.5-mm mini plug.

Each input features a volume control knob as well as three zone routing buttons for audio distribution to desired areas or rooms.

Premium Features

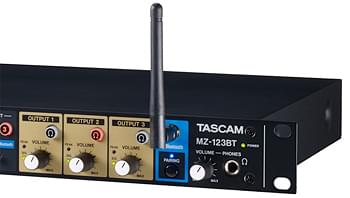

Stable Wireless ConnectivityThe MZ-123BT has a dedicated Bluetooth antenna on its front-panel which helps ensure consistent stability of the wireless signal and reliability when streaming source material from a Bluetooth enabled device – even in the most signal-challenged environments.

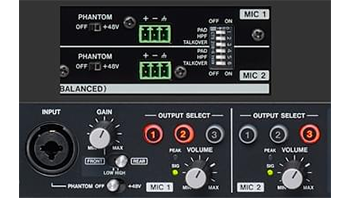

with Euroblock ConnectorsFor announcements or moderations, the MZ-123BT offers two microphone inputs, each with switchable +48V phantom power for condenser mics, talkover functionality and zone selection by front-panel push buttons. Two mics can be connected via rear-panel Euroblock connectors while an additional XLR/TRS combo connector on the front panel allows an alternative microphone to be hooked up quickly and selected via a front-panel switch.

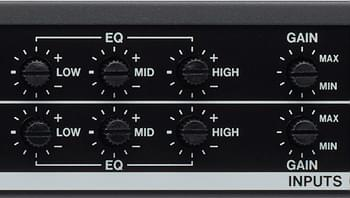

Gain Control and Switchable High-Pass FilterThe back panel provides gain control knobs and three-band EQ (Low, Mid, High) along with a high-pass filter switch for each input for setting optimal input level, tonal quality and voicing character for each microphone.

MZ-123BT Compact Multi-Zone Audio Mixer with Bluetooth

The Tech Spec

Features Specification
Mic Input Balanced Combo XLR-1/4" / 6.3mm Jack
Rated Input Level: -26 dBu (0.039 Vrms, When Front High), -2 dBu (0.616 Vrms, When Front Low)
Maximum Input Level -10 dBu (0.245 Vrms, When Front High), +14 dBu (3.884 Vrms, When Front Low)
Minimum Input Level -65 dBu (0.0004 Vrms, When Front High), -41 dBu (0.007 Vrms, When Front Low)
Gain Adjustment Range 39 dB
Input Impedance 2.4 Kilohms
Connectors Euroblock (Balanced 3.81 mm Pitch)
Rated Input Level: 26 dBu (0.039 Vrms, When PAD Switch Off), -2 dBu (0.616 Vrms, When PAD Switch On)
Maximum Input Level -10 dBu (0.245 Vrms, When PAD Switch Off), +14 dBu (3.884 Vrms, When PAD Switch On)
Minimum Input Level -65 dBu (0.0004 Vrms, When PAD Switch Off), -41 dBu (0.007 Vrms, When PAD Switch On)
Gain Adjustment Range 39 dB
Input Impedance 2.4 Kilohms
Power 100 to 240 VAC, 50/60 Hz
Dimensions 19.02 x 1.83 x 10.82" / 48.30 x 4.65 x 27.48 cm
Weight 3 kg
Specifications
Total Channels
Max Mic Inputs
Computer Interface
Mixer Type
Computer Interface Channels
Total Aux Sends
Subgroup / Bus Outputs
Max Line Inputs
Analogue Insert Points No
Flying Faders No
Internal FX No
Additional Information
Scan Code LN132984
Model Number MZ-123BT
GTIN 4907034131273
