TASCAM DR-60Dmk2 Audio Recorder
TASCAM DR-60D MKII 4 Track recorder for DSLR Camera
Email me when the availability or price changes
Finance this product
- From £14.41 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.

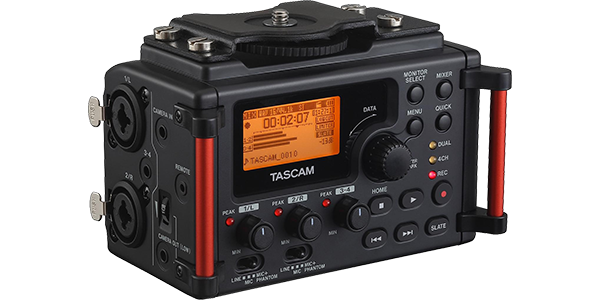

4-Track Audio Recorder for DSLR Cameras
Tascam - DR-60DMKII
Compact, high-quality audio recorder.
Designed to be used in combination with a DSLR camera.The Tascam DR-60D MKII is a compact 4-track audio recorder for dedicated use with a digital single-lens reflex (DSLR) or digital single-lens mirrorless (DSLM) camera as a video system. It can be mounted directly to the camera and offers various audio inputs and outputs to allow the recording of high-resolution audio material in parallel to, but separated from the camera and its video data.
The recorder features Tascam original HDDA microphone preamps which are known for high S/N ratio, low input-referred noise and low distortion. Recordings can be made at 44.1/48/96 kHz, 16/24-bit in WAV or BWF format. In addition to ordinary stereo recording, it is possible to record up to four channels simultaneously which can then be mixed down to a stereo signal. Recording levels can be adjusted independently for inputs 1, 2 and 3–4 and the Dual Recording function allows two files to be recorded in parallel at different levels.
The DR-60D MKII can output high-quality audio to a DSLR/DSLM camera to be recorded there as a reference track, and a camera input enables convenient monitoring of audio sent from a DSLR camera. Mid-side decoding, slate tone functions (automatic/manual), selectable time delay and other functions for convenient recording are also available.
Amazing Features
• High-quality recording inputs through Tascam original High Definition Discrete Architecture (HDDA) microphone preamps
• In addition to ordinary stereo recording, simultaneous recording of up to four channels is possible
• Dual recording function allows two files to be recorded simultaneously at different levels
• Recording levels can be adjusted independently for inputs 1, 2 and 3–4
• Recording at 44.1/48/96 kHz, 16/24-bit, linear PCM (WAV format)
• Broadcast Wave Format (BWF) supported as WAV recording format
• Four channels can be mixed down to a stereo signal
• Uses an SD/SDHC card as recording medium
The Tech Spec
| Features | Specification | Recording Media | SD card (64 MB – 2 GB) SDHC card (4–32 GB) |
|---|---|
| Audio File Compatibility | WAV: 44.1/48/96 kHz, 16/24-bit BWF (Broadcast Wave Format): 44.1/48/96kHz, 16/24-bit |
| Number of Channels | 4 channels (stereo x 2) |
| Mic/Line input 1/L, 2/R (switchable phantom power) | XLR-3-31 6.3-mm standard TRS Jack |
| Input switch set to MIC or MIC+PHANTOM | Input impedance: 2 kΩ Phantom Power: 48 V ±4 V (10 mA/channel) or 24 V ±4 V (10 mA/channel) Maximum input level: 0 dBu Minimum input level: −72 dBu Mic input gain (input level knob at maximum): LOW: +11 dB, MID: +36 dB, HIGH: +52 dB, HIGH+PLUS: +64 dB |
| Input switch set to LINE | Input impedance: 10 kΩ or higher Nominal input level: +4 dBu Maximum input level: +24 dBu |
| Mic/Line input 3-4 (supports plug-in power): 3.5-mm stereo mini jack | Input impedance: 10 kΩ Maximum input level: +10 dBV Minimum input level: −50 dBV Mic input gain (input level knob at maximum): LOW: +3 dB, HIGH: +26 dB, HIGH+PLUS: +38 dB |
| CAMERA IN jack: 3.5-mm stereo mini jack | Input impedance: 10 kΩ Nominal input level: −10 dBV Maximum input level: +6 dBV |
| CAMERA OUT (LOW) jack: 3.5-mm stereo mini jack | Output impedance: 200 Ω Nominal output level: −50 dBV Maximum output level: −30 dBV |
| Headphones output: 3.5-mm stereo mini jack | Maximum output power: 50 mW + 50 mW |
| CAMERA OUT (HIGH)/LINE OUT jack: 3.5-mm stereo mini jack | Output impedance: 200 Ω Nominal output level: −10 dBV Maximum output level: +10 dBV |
| USB Mini-B Type | Format: USB 2.0 HIGH SPEED mass storage class |
| REMOTE jack | 2.5-mm TRS jack |
| Frequency response | 20 Hz – 20 kHz, +0.5/–2 dB (LINE IN or MIC IN to LINE OUT, Fs 44.1/48 kHz, JEITA) 20 Hz – 40 kHz, +0.5/–3 dB (LINE IN or MIC IN to LINE OUT, Fs 96 kHz, JEITA) |
| Distortion | 0.02% or less (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA) |
| S/N ratio | 92 dB or more (LINE IN or MIC IN to LINE OUT, Fs 44.1/48/96 kHz, JEITA) |
| Equivalent input noise | –120 dBu or less |
| Note for JEITA | Conforming to JEITA CP-2150 |
| Power supply | Four AA batteries (Alkaline or Ni-MH) USB bus power supplied from a computer AC adaptor (TASCAM PS-P520U, sold separately) External battery pack (TASCAM BP-6AA, sold separately) |
| Power consumption | 5.4 W (maximum) |
| Dimensions (W × H × D) | 133 mm × 93 mm × 78 mm (with the top adapter attached) |
| Weight | 510 g (without batteries) |
| Operating temperature range | 0–40 °C |
