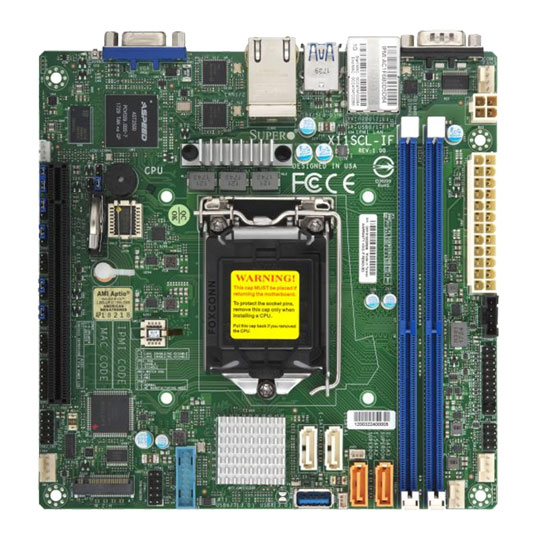

Supermicro X11SCL-IF Intel Xeon Mini-ITX GbE Server Motherboard

Supermicro X11SCL-IF Intel Xeon Server Motherboard, S H4 LGA-1151, DDR4, SATA3, Dual Intel GbE, USB 3.2 Gen 2, mITX

Scan code: LN113653 Manufacturer code: MBD-X11SCL-IF-O
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview

Xeon® E-2100 Boards / Socket H4 (LGA 1151)

The new Supermicro Building Block Solutions® for the Intel® Xeon® E-2100 series include new server-class motherboards offering a wide range of high performance, network appliance and embedded/IoT applications.

Features

• 8th/9th Generation Intel® Core™i3/Pentium®/Celeron® Processor, Intel® Xeon® E-2100 Processor, Intel® Xeon® E-2200 Processor, Single Socket LGA-1151 (Socket H4) supported, CPU TDP supports Up to 95W TDP.
• Support up to 6 Cores.
• Intel® C242 chipset.
• Up to 64GB DDR4 2666MHz ECC UDIMM; 2 DIMM slots.
• Dual GbE LAN with Intel® i210-AT.
• 4 SATA3 (6Gbps); RAID 0, 1, 5, 10.
• M.2 NGFF connector.
• M.2 Interface of 1 SATA/PCI-E 3.0 x4, Form Factor 2280, M-Key with Double Height Connector.

Specifications
Core Specifications
Edition X11SCL-IF
Form Factor Mini-ITX
CPU Socket 1151
Chipset Intel C242
RAM Memory Support
Memory Type DDR4
Memory Channel
Memory Type (ECC) ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz)
  • DDR4 - 2133
  • DDR4 - 2400
  • DDR4 - 2666
  • DDR4 - 2667
Max. Memory Capacity 64GB (2x32GB)
Audio
Audio
Graphics Support
Primary GPU Interface On-board
NVIDIA SLI Support N/A
AMD CrossFire Support N/A
Integrated Graphics Integrated ASPEED AST2500 BMC
On-Board Graphics Connectors D-Sub (VGA)
Internal Connectivity
Expansion Slots
  • 1 x M.2, 22-80, PCIe Gen3x4
  • 1 x PCIe 3.0 x16
SATA Support SATA3 / M.2
RAID Support via SATA3 / M.2 (PCIe)
Storage Mode Support
  • RAID 0
  • RAID 1
  • RAID 10
  • RAID 5
Internal I/O
  • 1 x Chassis Intrusion connector
  • 1 x TPM Header
  • 2 x USB 2.0 Header
  • 2 x USB 3.2 Gen2 Header
External Connectivity
Network Interface Type Dual Wired Gigabit LAN (10/100/1000)
Network Chip/Modules 2 x Intel® I210AT (Gigabit LAN)
Rear I/O Connectors
  • 2 x RJ-45
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 1 x VGA
Additional Specifications
Water Cooled No
Cooling
QPI Speed N/A
Board Dimensions 170.2 x 170.2 mm
Note
Additional Information
Scan Code LN113653
Model Number MBD-X11SCL-IF-O
GTIN 672042327546
