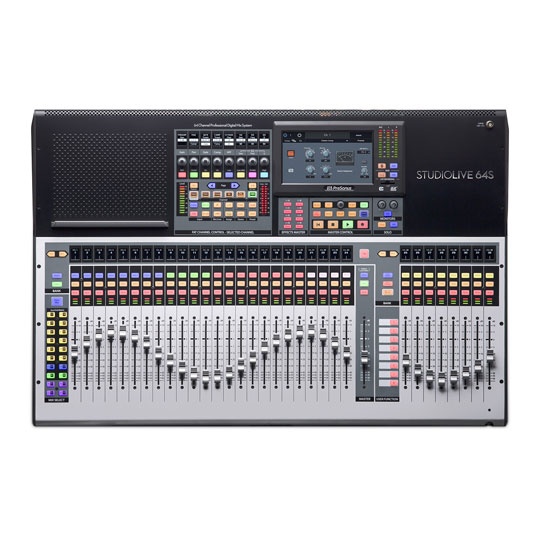

Presonus StudioLive 64S 64-Channel/43-bus Digital Console

StudioLive 64S 64-Channel/43-bus Bus Digital Console/Recorder/Interface with AVB Networking and Quad Core FLEX DSP

Thumbnail 1 : Presonus StudioLive 64S 64-Channel/43-bus Digital Console Thumbnail 2 : Presonus StudioLive 64S 64-Channel/43-bus Digital Console Thumbnail 3 : Presonus StudioLive 64S 64-Channel/43-bus Digital Console Thumbnail 4 : Presonus StudioLive 64S 64-Channel/43-bus Digital Console
Scan code: LN97321 Manufacturer code: StudioLive 64S
£3,430.00Item currently awaiting an ETA
Pre order
Free Delivery
With a 10% deposit from just £85.66 / month (APR 15.9%)
Delivery Options
  • By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

Product Overview The small format mixer with large format power.
The StudioLive 64S is a 64-channel mixer that brings the power of a large format console to small format digital mixing. Powered by the new quad-core PreSonus FLEX DSP Engine, the StudioLive 64S digital mixer is equipped with 76 mixing channels, 43 mix buses, and 526 simultaneous processors-including 8 stereo reverberation systems, and Fat Channel plug-in models on every input channel and mix bus. With 128 (64X64) channels of USB recording, 128 channels of AVB I/O, flexible routing options, and the studio-grade audio quality that made StudioLive mixers famous, the StudioLive 64S delivers a truly exceptional mixing experience that's in a class of its own.

The scalable digital mixer.
The StudioLive 64S digital mixer and the complete PreSonus® StudioLive Series III ecosystem of AVB networking products allow you to create a system that is truly customized for your needs. Connect NSB-series stage boxes to add remote analogue inputs and outputs wherever they're required and complete your 64-channel, 32-bus StudioLive 64S. Add EarMix 16M personal monitor mixers to give your musicians their own customizable 16-channel monitor mix. Multiple StudioLive Series III digital mixers can be networked together, allowing you to route audio to and from any device on the audio network thanks to the flexibility of Digital Patching available both onboard your StudioLive 64S digital mixer and inside UC Surface remote mixer software.

The best digital mixer for recording-with or without a computer.
PreSonus Capture® recording software is an intuitive multitrack recording application with a fully integrated Virtual Soundcheck mode that runs directly on your StudioLive 64S digital mixer or on your Mac® or Windows® computer. Record any combination of channels, FlexMixes, and the main stereo mix to USB, to an SD Card, or both for the ultimate redundant live recording rig. StudioLive mix scenes can be stored with your recordings to speed up Virtual Soundchecks. Best of all, Capture sessions open natively in Studio One® with the entire StudioLive mix scene re-created in the Studio One console, complete with fader levels, Fat Channel settings, mutes, solos, and more to launch your live mix right where you left it. No other multitrack software makes recording as fast, simple, and hassle-free so you can focus on mixing the show.

Superior sound.
We built our reputation designing great-sounding analogue circuits for critical studio recording environments, and we put all of that experience into designing the StudioLive 64S digital mixer. In 1995, PreSonus patented digital control over analogue circuits with our first studio product. Building on this legacy, we created a separate digital volume-control circuit ahead of our lauded analogue XMAX mic preamp design, providing the convenience of digital recall without sacrificing fidelity. This allows the StudioLive 64S mic preamps to be remote-controlled with UC Surface software or Studio One, and when you load a StudioLive 64S mixer scene, the mic preamp trim values can be recalled along with the other settings.

Create the buses and groups you need.
PreSonus designed the StudioLive 64S digital mixer to adapt to your changing needs, whether you're mixing in the studio or on a busy festival stage. Its 32 FlexMixes can be individually configured to function as an aux bus, a subgroup, or a matrix mix. Eight designated effects buses plus stereo and mono main buses make a total of 43 mix buses in addition to an independent solo bus. We also provided 24 DCAs so you can more easily and flexibly control groups of channels. The independent Main Mono bus can be configured with individual channel sends to feed a subwoofer or as the centre channel in an LCR system, complete with a Centre Divergence control on each channel to more precisely place your pan positions.

Reconfigure your mix without unplugging a cable.
StudioLive Series III digital mixers incorporate the concept of an analogue patchbay and digitize it. This lets you patch any analogue input or digital return (AVB, USB, or SD Card) to any channel to customize your mix configuration. This flexible feature also allows you to freely route audio to your AVB network and record any of the inputs and FlexMixes on the 64 USB sends. Digital Patching also makes it easy to quickly route to and source from your AVB audio network when using the StudioLive 64S as part of a complete networked audio system.

The ultimate USB audio interface and control surface.
With 128 (64x64) channels of recording over USB, the StudioLive 64S is not just the best digital mixer for live sound recording; it's the best digital mixer for the studio as well. Each channel can independently access its analogue input or its dedicated digital return from your computer. While compatible with any DAW, Studio One and the StudioLive 64S are the perfect pair to elevate your studio recording environment. Remotely control your StudioLive 64S digital mixer's recallable XMAX mic preamps and Fat Channel processing from Studio One Artist. Press the DAW button on your StudioLive 64S digital mixer and use the 33 touch-sensitive motorized faders to control your Studio One mix. Seamless integration and thoughtful bidirectional control with Studio One make the StudioLive 64S the best mixing console for the modern recording studio.

World-class recording software included.
PreSonus Studio One® Artist DAW is included with the StudioLive 64S. Studio One seamlessly combines the time-tested and proven recording studio model with today's beat- and loop-oriented production process so you can spend your precious time creating music instead of wondering what to click next.

Fat Channel plug-ins bring your mix to life for stage or studio.
The dynamic Fat Channel on the StudioLive 64S digital mixer puts critical EQ and dynamics processing beneath your fingertips while giving you fast access to every parameter. The ten included vintage EQ and classic compressor Fat Channel plug-in models can be used onboard your mixer, as well as within Studio One. And when you're ready for more options, PreSonus offers four Fat Channel plug-in collections with 15 additional models from which to choose, giving you a host of new signal processing options. Fat Channel plug-ins can be inserted on every input channel and output bus. Now you can enjoy extensive, studio-style processing whether recording in the studio or running shows on the road.

Remote control your digital mixer from anywhere, on any device.
PreSonus StudioLive Series III digital mixers are tightly integrated with an entire suite of state-of-the-art software. Mix wirelessly using UC Surface touch-control software for macOS®, Windows, iPad® and Android™. Control your monitor mixes with QMix®-UC for iPhone®, iPod® touch, and Android devices. Whether you're adjusting monitor mixes on stage, moving around the room to dial in your mix, or using your mobile device as a second screen for your StudioLive 64S digital mixer, remotely controlling your mix from anywhere just got easier.

A complete networked solution.
The StudioLive Series III ecosystem of networked products are at the forefront of AVB networking technology. Designed to complement each other, the ecosystem is easily expanded and quickly configured. The StudioLive 64S is your command centre to create the ultimate AVB network. Route audio to EarMix 16M personal monitor mixers. Control the gain staging and add up to 64 inputs using NSB-series stage boxes and other StudioLive Series III digital mixers. With powerful plug-in processing, a plethora of mix buses, and integrated networking onboard, the StudioLive 64S brings the large format mixing experience to the compact desktop digital mixer.

Get Connected.

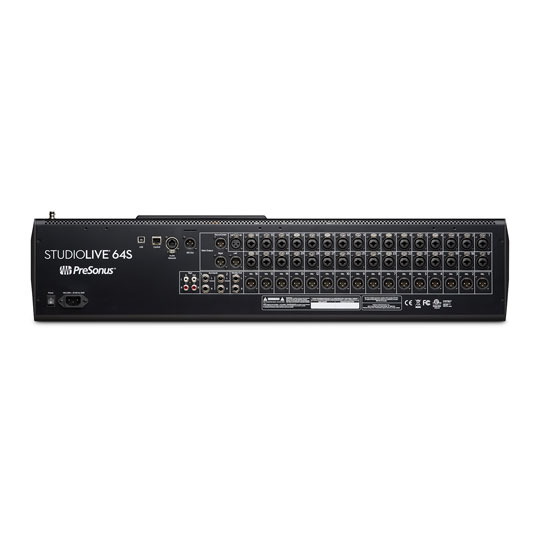

The back panel of a StudioLive 64S digital mixer is equipped with plenty of local analogue I/O. 32 local analogue mic/line channel inputs make it easy to connect a variety of gear. 16 local mix outputs let you route to floor monitors, delay stacks and more. But the local I/O is only half the story. Connect your StudioLive 64S digital mixer to an AVB audio network and add remote inputs and outputs anywhere you need them using NSB-series stage boxes.

Three year warranty-for all Series III and III S mixers
When we introduced the StudioLive Series III S mixers, we upgraded all Series III mixer warranty programs to three years as well, including both console and rack mixers. Even if you bought yours two and a half years ago, you're covered.
We take our build quality seriously, and if anything goes wrong with your mixer in your first three years of ownership (assuming you don't throw it in a swamp or anything like that) we'll repair it

Includes Studio Magic Plug-in Suite.
This suite of plug-ins adds a wealth of fresh virtual instruments and effects to Studio One. Cherry-picked from the first names in virtual instruments and effects, each plug-in brings a different flavour of practical magic to your songs. These plug-ins aren't gimmicky one-trick ponies - these are real-deal workhorses that you'll rely on for countless mixes.ok
Features Microphone Preamplifier:
• Input Type: XLR Female, balanced
• Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
• Input Impedance: 1 kO
• THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
• Common Mode Rejection Ratio (1 kHz at unity gain): 65 dB
• Gain Control Range (±1 dB): 0 dB to +60 dB
• Maximum Input Level (unity gain): +12 dBu
• Phantom Power (±2 VDC): 48 VDC, switchable per channel

Line Inputs:
• Type: ¼” TRS Female, balanced
• Frequency Response to Main Output (at unity gain): 20-20 kHz, ±0.5 dBu
• Input Impedance: 10 kO
• THD to Main Output: <0.005%, +4 dBu, 20-20 kHz, unity gain, unwtd
• S/N Ratio to Main Output (Ref = +4 dB, 20 kHz BW, unity gain, A-wtd): 94 dB
• Maximum Input Level: +18 dBu

Tape Inputs:
• Type: RCA Female, unbalanced (stereo pair)
• Maximum Input Level: +12 dBu, ±0.5 dBu

XLR Outputs:
• Type: XLR Male, balanced
• Maximum Output Level: +24 dBu, ±0.5 dBu
• Output Impedance: 100O

Line Outputs:
• Type: ¼” TRS Female, balanced
• Maximum Output Level: +18 dBu, ±0.5 dBu
• Output Impedance: 100O

Tape Outputs:
• Type: RCA Female, unbalanced (stereo pair)
• Maximum Output Level: +18 dBu, ±0.5 dBu
• Output Impedance: 100O

Headphone Output:
• Type: ¼” TRS Female, active stereo
• Maximum Output: 100 mW/ch. @ 60O load
• Frequency Response: 20 Hz – 20 kHz (± 0.5 dB)
• THD+N: 0.01%, 1 kHz, max gain, 20 Hz BW, unwtd
• S/N Ratio: 96 dB, 1 kHz, max gain, 20 Hz BW, unwtd

System Crosstalk:
• Input to Output: -90 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)
• Adjacent Channels: -87 dB (Ref = +4 dBu, 20 Hz-20 kHz, unwtd)

Digital Audio and Control:
• ADC Dynamic Range: 115 dB (A-wtd, 48 kHz)
• DAC Dynamic Range: 115 dB (A-wtd, 48 kHz)
• USB Recording Port: USB 2.0, Type-B
• Bluetooth™ Input: 4.1, stereo
• AES/EBU Output: XLR Male
• Network Control Port: RJ-45
• AVB Audio Network Port: Locking XLR Ethernet
• Internal Processing: 32-bit, Floating point
• Sampling Rate: 48 kHz, 44.1 kHz
• A/D/A Bit Depth: 24
• Reference Level for 0 dBFS: +18 dBu
• Total System Latency: 1.9 ms (local routing, analogue in-analogue out, all processing active)

Clock:
• Jitter: <20 ps RMS (20 Hz - 20 kHz)
• Jitter Attenuation: >60 dB (1 ns in, 1 ps out)

Power / Environmental:
• Connector: IEC
• Input-Voltage Range: 90 to 230 VAC (±10%)
• Power Requirements (continuous): 85W
• Recommended Ambient Operating Temperature: 0° to 40° Celsius / 32° to 104° Fahrenheit

Physical:
• Height: 6.51” (165.36 mm)
• Width: 32.37” (822.21 mm)
• Depth: 22.97” (583.48 mm)
• Weight: 37.2 lbs. (16.9 kg)
Specifications
Total Channels
Max Mic Inputs
Computer Interface
Mixer Type
Computer Interface Channels
Total Aux Channels
Subgroups
Max Line Inputs
Insert Points No
Direct Channel Outputs
Internal FX No
Flying Faders No
