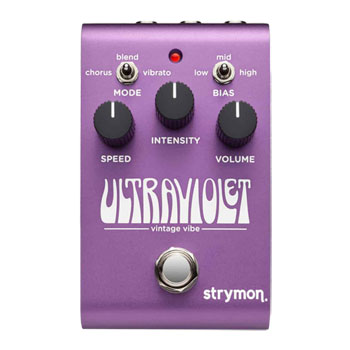

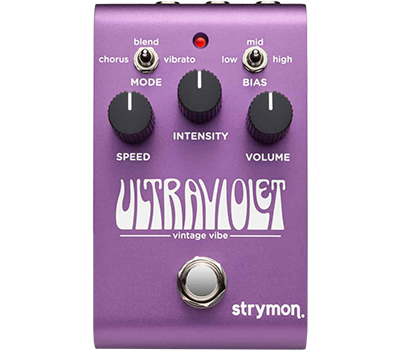

Strymon Ultraviolet Vintage Vibe Pedal
Strymon - Ultraviolet Vintage Vibe Pedal, Chorus, Vibrato, Blend, Stereo In/Out
- SCANPROTECT Protect against installation damage for 28 days. More info
Vintage Vibe Pedal
Strymon - UltraViolet
Quintessential VibeThe Strymon UltraViolet provides warm grittiness to the warble, a rippling, wooshing, bubbling irregularity to the modulation and a dynamic response to your picking. Thicker and chewier than any chorus, earthier than any phaser and uniquely magical in front of a driven amp, the perfect vibe pedal moves you to dig in and play without hesitation. This feeling has been difficult to find outside of large and expensive fully-analogue boutique pedals, but the search for that elusive experience is now over. Delivering vintage vibe tone that’s second to none with simple and powerful controls for instantly obtaining a rich variety of captivating sounds, UltraViolet is the vibe pedal you’ve been searching for.
At A Glance
• Stereo vibe pedal with full stereo in/out capabilities
• Choose between electromechanical relay-switched true bypass or premium buffered bypass
• ARM Processor for every sonic nuance, and less power consumption on your pedal board
• High-impedance, ultra-low noise and discrete Class A JFET preamp input
• Full MIDI implementation and 300 presets
Vintage Plus
Classic Vibe Tones and More!UltraViolet’s simple and responsive controls offer a wider range of sounds than traditional vibe pedals. Together with the familiar Chorus (50% wet) and Vibrato (100% wet) settings, there is a new Blend setting (30% wet) for an inspiring variety of more subtle effects.
A Bias switch gives you three distinct flavors of sweep shape and tone emphasis, allowing for tons of sonic variation. At slow speeds, the intensity range has been expanded beyond that of traditional vibe circuits to push even further into warmly undulating sonic territory.
All New Algorithm
More DynamicsFor UltraViolet’s new vibe algorithm, all the elements of the classic optical vibe circuit (and their interdependencies) have been meticulously recreated for a dynamic playing response.
From the effects of bias, speed and LFO waveshape on the pulsing of the lamp, to the response of the light-dependent resistors that set the center frequencies of the staggered phasing filters, the entire system has been duplicated and carefully tuned to produce the very best sounds a vibe pedal can offer.
Stereo MIDI Rig Ready

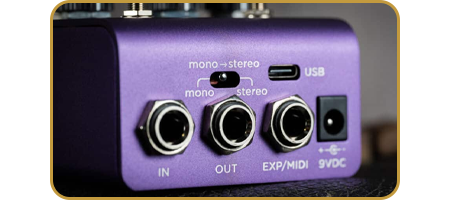

More DynamicsTRS stereo inputs and outputs in a dual mono configuration mean that you can place UltraViolet in any position in your pedal chain with no impact on your stereo image. Full MIDI implementation with 300 available preset locations ensures that UltraViolet is ready for your MIDI rig.
Alongside TRS MIDI, there is a USB-C jack for controlling the pedal via MIDI from a computer or for performing firmware updates. For hands-free operation without MIDI, you can connect an expression pedal to control any combination of knobs in any direction (the expression pedal controls Speed by default), or attach an optional external switch for tap tempo or favorite recall.
Finally, a high-impedance, ultra-low noise discrete Class A JFET stereo input preamp provides exceptional touch sensitivity, dynamics and feel—all in a rugged and elegantly compact form factor..

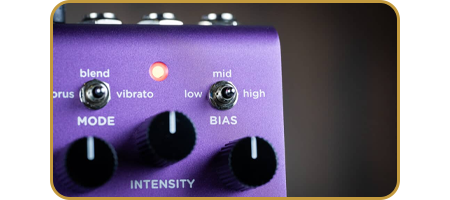

Selectable Bias
Vibration VariationOne element of vintage vibe pedals is variation in the way each unit sounds. Even two identical pedals manufactured the same year are likely to sound different from one another, and a single pedal may not sound quite the same year after year.
Some of this variation in vintage circuits can be traced to drift in the setting of an internal bias trimpot, which has a marked impact on the sonic character of the pedal, affecting the shape and timing of the warble as well as frequency emphasis. The thing is, some of these variations can sound pretty great!
So with UltraViolet, Strymon included a Bias switch in order to reliably cover the full range of the best vibe tones. Under the hood, the switch not only changes the bias level, but also optimizes the LFO waveshape for the selected bias to create the most inspiring vibe experiences possible.
The Low setting produces a pulsing character well-suited for tremolo effects (especially in Blend Mode). The Mid setting has a balanced character capable of producing many of the most sought-after classic vibe effects, while the High setting has a smoother shape with a wider frequency sweep, able to create sounds evocative of Pink Floyd’s “Breathe.”

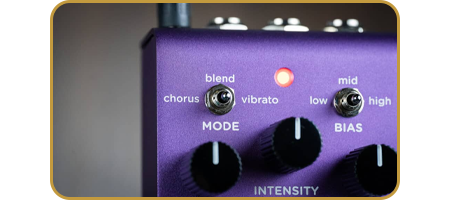

Blend Mode
Mixed SignalsUltraViolet’s Mode switch sets the blend between wet and dry signals. Chorus Mode gives you a 50/50 mix for the deepest, whooshy, gooey vibe tones. Many classic vibe tones can be achieved at moderate Speed settings, with Intensity between midpoint and maximum in Chorus Mode.
Vibrato Mode is 100% wet for responsive, frequency-dependent phase vibrato tones with a wide range of uses. Add subtle motion to a lead, or head for the extremes of far-out bubbly madness. In Vibrato Mode, use Low Bias for steady pitch with a dramatic lump, Mid Bias for a more sing-songy warble, and High Bias for a more softly-shaped pitch vibrato.
Blend is a dry-dominant mode (70% dry, 30% wet) for more subtle but still highly engaging and inspiring effects. Try Blend Mode with Low Bias and moderate speeds for squarish phase tremolo effects, or with High Bias at fast speeds and low Intensity for rotary speaker style effects.
LFO Waveforms
The Shape of WavesIn a traditional vibe circuit an LFO sends a regularly-varying voltage to an internal lamp, where the brightness changes the resistance of the light-dependent resistors that set the center frequencies of the phasing filters (say that ten times fast!). The bias setting determines the brightness of the lamp when the LFO’s amplitude/intensity is set to zero. In other words, the bias sets the center point around which the LFO wiggles!
There are a ton of variables in the system: for example, even if the LFO generates a perfectly symmetrical waveform, the lamp may still have different rise and fall times. Also, a lightbulb does not turn on or off instantly—there is a lag that becomes more noticeable at higher speed settings, and speed affects intensity in the circuit. All these interdependencies and more have been accounted for in UltraViolet and exploited for your benefit!
At the Mid bias setting the LFO waveshape is sinewave-like, but the different rise and fall times of the lamp result in the lurching, lopsided and wooshy warble at the heart of the beloved vibe sound. At the High bias setting, the LFO shape is optimized for a smoother and more symmetrical result that gets you further into phaser territory in Chorus and Blend Modes, with higher frequencies being swept through.
At the Low bias setting, the LFO waveform is more squarish (but still smoothed by lamp lag), sweeping lower frequencies and lending itself to phase tremolo effects in Chorus or Blend Modes, or yielding somewhat more steady pitch (with a dramatic lump) in Vibrato Mode.

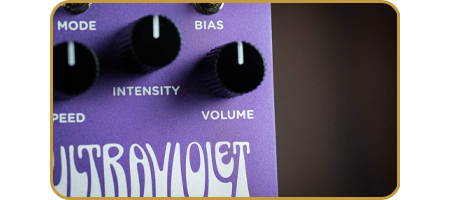

Colour Boost
Kick It Up a NotchUltraViolet’s Volume knob provides up to 4dB of boost to give your signal a bit of a kick when the pedal is engaged. In Chorus Mode or Blend Mode, turning the Intensity knob to zero effectively transforms UltraViolet into a phase EQ, with a brighter output at Low Bias and a darker output at High Bias.
At higher Intensity settings with the filter notches in motion, bias-related darkening or brightening of the tone ceases to be noticeable, but the volume boost is still effective at any Intensity level. In Vibrato mode, an uncolored boost can also be achieved with the Intensity at zero.

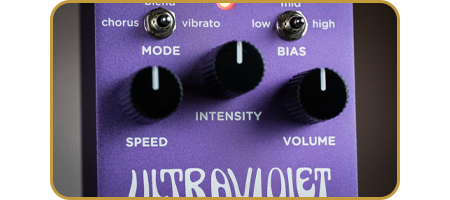

Intensity
Custom VibeA cool part of the classic vibe circuit is that higher speed settings would increase LFO amplitude. Strymon wanted to make some of that extra depth available at slow speeds, so they expanded the range of the Intensity control when UltraViolet is set to lower speeds, providing a more expansive palette of sonic textures.
Strymon UltraViolet Vintage Vibe
The Tech Spec
Features | Specification | Pedal Type | Digital Vibe |
---|---|
Effects | Chorus, Vibrato, Blend |
Inputs | 1 x 1/4" TRS |
Outputs | 1 x 1/4" TRS |
MIDI I/O | In |
USB | 1 x USB-C (Updates, Midi) |
Other I/O | 1 x 1/4" TRS (Midi/expression) |
True Bypass | Yes |
Bypass Switching | Relay-based True Bypass, Buffered bypass |
Features | Mono/Stereo input and output |
Power Source | 9V DC (250mA) power supply (sold separately) |
Dimensions | Width: 2.7"/6.9cm Height: 2.5"/6.4cm Depth: 4.6"/11.7cm |
