Strymon Starlab Eurorack Time-Warped Reverb
Strymon - Starlab Modular Rack Experimental Reverb, 3 Reverb Types, 4 Octave, Filter Section, LFO Section, Karplus
Email me when the availability or price changes
Finance this product
- From £17.83 / month (APR 16.9%) for 36 months or 0% for 4 months
- With a 10% deposit from just £12.71 / month (APR 15.9%)
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Strymon - Magneto Tape Delay & Looper Eurorack ModuleStrymon Magneto Eurorack Tape Delay
LN151964
No customer review

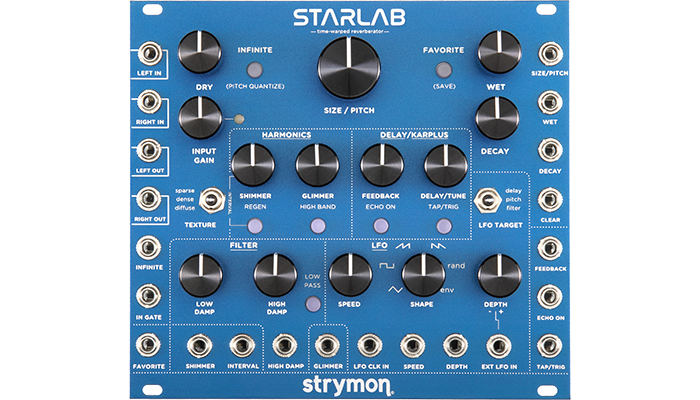

Modular Rack Experimental Reverb
Strymon - Starlab
Modular Transformation MachineThe Strymon Starlab enables you to expand the sound of your modular rack with incredibly stunning, ethereal reverbs, enhance your signals with beautiful chorus, flanging, and modulated delays, create uniquely expressive synth voices with Karplus-Strong string synthesis, and turn simple mono audio signals into complex stereo soundscapes. StarLab is a single module that will completely transform your modular rack.
From perfectly voiced room ambience to vast, immersive, nearly infinite decays, StarLab provides the pinnacle of premium reverb sounds with unparalleled depth and spaciousness. Add musical intervals to the reverb signal with Shimmer, and enhance the harmonic spectrum with Glimmer, while enjoying real-time control over the size/pitch of the reverb process.
StarLab has vastly expanded what reverb pre-delay can do by allowing you to bus the pre-delay signal to the output while making the pre-delay time a modulation target. This results in the ability to create rich choruses, sweeping flanger effects, and beautiful modulated delays, while also processing signal through the reverb.
Along with input signal processing, StarLab is a powerful Karplus-Strong string synthesis voice module that allows freely alternating bowing and plucking as well as dynamic string damping. This results in an astoundingly expressive and lifelike instrument with a unique voice all its own, which can be enhanced and expanded by the full range of StarLab’s reverb capabilities.
From patch creation to live performance, StarLab’s powerful features are easily accessible at the turn of a knob or the touch of a button. With no menus to fight through, StarLab’s interface is designed for intuitive hands-on sonic exploration, while every function and control works together to respond musically and smoothly.
Amazing Features
• Three selectable reverb types for a wide variety of ambient textures
• Four-octave Karplus-Strong string synthesis mode with damping control for string/verb full voice capability
• FILTER section to sculpt the high and low EQ of the reverb and DELAY/KARPLUS section
• LFO section with various waveforms to modulate delay time, reverb size, or tone filters
• Delay assignable to output for mod/verb and delay/verb effects
• DELAY/KARPLUS section with feedback
What is StarLab?
InspirationDevelopment for StarLab began with the goal of providing the highest quality reverb possible for modular systems, perfectly tuned for immersive electronic soundscapes with a high degree of flexibility and creative control. The seemingly simple idea of allowing the pre-delay signal to be fed directly to the module’s output led to the development of rich sounding delay, chorus, and flanger effects, all of which can be used together with or independent of the reverb.
While experimenting with short delay times using feedback and filtering, Strymon began finding very musical and expressive Karplus-Strong string synthesis sounds, and realized that StarLab could move past signal processing and become a truly unique voice module as well. All this ultimately resulted in the creation of a module that is equal parts reverb, delay/modulation, and playable instrument.
Choose Your Character

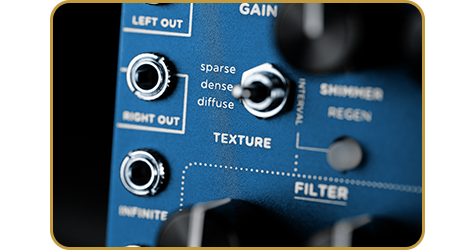

TextureStarLab gives you three distinct Reverb textures to choose from: Sparse, Dense, and Diffuse. The Sparse reverb creates reflections that are far enough apart from each other to be audibly distinct. Legato notes create a lush but pleasingly clean sound field, while staccato notes reveal individual echoes in a way that is well suited for sound design and special effects.
The Dense reverb texture is an immediate-response reverb with a smooth sound field, featuring sonic characteristics similar to a plate. This texture is well-suited for applications ranging from small space ambience all the way to large cavernous reverbs. The Diffuse reverb creates a slow-building, atmospheric wash that excels at ambient, swell, and even reverse-like textures. The Diffuse reverb deconstructs and spreads transients over time to achieve its bloom-like effect.
Over and Over Again

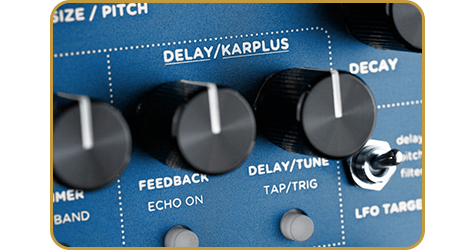

DelayStarLab’s Delay section is actually a vastly expanded reverb pre-delay. When used as a reverb pre-delay, delay FEEDBACK is still available, allowing for the creation of even longer reverb decays, while the ability to modulate the pre-delay time allows even further creative possibilities.
Press the ECHO ON button, and now you can create a wide variety of classic delay and delay-reverb effects. Echoes can be synced to an external clock with the DELAY/TUNE knob acting as a clock multiplier/divider for the echo repeats. Delay time can also be set by tapping a tempo using the TAP/TRIG button.
Moving Targets

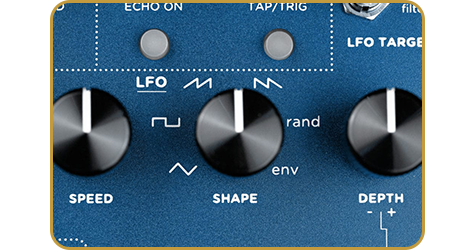

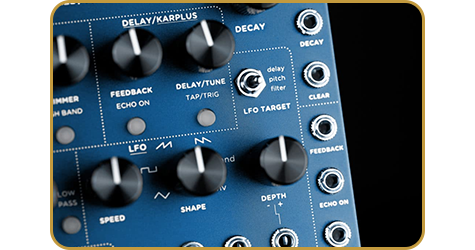

LFOStarLab’s LFO includes triangle, square, ramp, saw, random, and envelope waveforms that can be used to modulate your choice of three targets: Send the LFO signal to the delay section for modulated echo effects or for modulated pre-delay signal within the reverb. You can also create classic modulation effects such as flanger, chorus, and vibrato. In Karplus-Strong mode, the string tuning is modulated.
Send the LFO signal to modulate the SIZE / PITCH (process rate) of the reverb core for effects ranging from mild to wild and even on to music-generating: In Quantize mode, signal from the LFO will be quantized to any of 15 different scales as it modulates the SIZE / PITCH parameter. You can also send the LFO to the filter for a variety of effects. Activate the 24dB/oct low pass filter for classic filter mod effects, or achieve more subtle filter modulation of the reverb’s HIGH DAMP. In Karplus-Strong mode, modulating the HIGH DAMP parameter creates lifelike dynamic string damping.
When clocked externally via CV, the LFO SPEED knob becomes a clock multiplier/divider. You can also connect an external LFO or function generator to StarLab’s EXT LFO IN and direct that signal with StarLab’s Target switch, controlling amplitude with the DEPTH knob.
Modular Modulation
Modulation EffectsStarLab provides a wide range of modulation effects to add fatness and movement to your sound, all available on their own or in addition to StarLab’s reverb.
The short-delay portion of the DELAY/TUNE knob is tapered to make it easy to dial in a range of rich chorus and swirling flanger effects when modulated by StarLab’s internal LFO. Use the dedicated FEEDBACK knob to add resonance and musical harmonic sweeps to flanger effects. Make your oscillators sound huge with lush, shimmering organic chorus. Set the DRY level to minimum for classic vibrato effects.
Dynamic String Synthesis

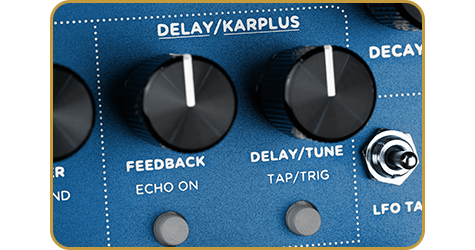

Karplus-strongIn Karplus-Strong mode, StarLab becomes a delay-based CV-tunable monophonic string synthesis voice module with a uniquely musical character. Press the TAP/TRIG button to pluck the string, or hold the TAP/TRIG button to bow the string.
Using StarLabs CV inputs, it is possible to alternate plucking and bowing, while CV control of the HIGH DAMP parameter creates lifelike dynamic string damping. This string voice can be processed through StarLab’s reverb to create a mesmerizing variety of sounds. You can also feed an input into the Karplus-Strong circuit and vibrate the string with an external drum sound or other audio signal to create tuned resonances and interesting evolving harmonics.
Expanding Universe Reverb

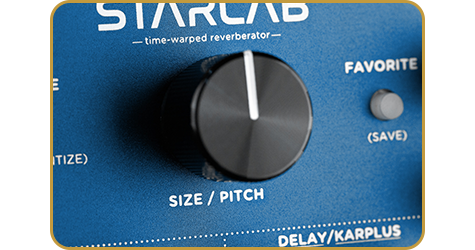

Size/PitchStarLab opens up an entire world of possibilities by using a variable rate process to expand and contract the reverb core size. This changes the reflection density and response of the reverb while retaining the integrity of the audio within the reverb.
The result is a reverberated signal that can be transposed, pitch modulated, and creatively tweaked for an endless variety of sonic characters and hypnotic soundscapes.
Sonically Beautiful Reverb Repitching

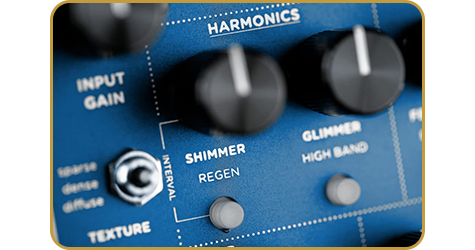

ShimmerInspired by the classic shimmer effects pioneered in the ’80s using digital reverbs and pitch shifters, StarLab’s Shimmer voice is carefully created from the reverberated signal itself to generate maximum radiance and beauty. Create deep, low ambient string sections with the octave down setting, or spacey ethereal textures with octave up.
In between the octaves are several musically interesting intervals available for shifting the harmonic structure of the reverb. Or use the INTERVAL CV input for semitone adjustment of the interval from an octave down to an octave up. The Shimmer processing can be applied at the reverb input only, or can regenerate within the reverb core for ever-ascending or descending pitches as the reverb decays.
Harmonics In Motion

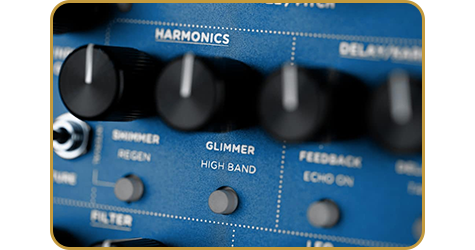

GlimmerGlimmer creates an enhanced harmonic spectrum using an optimally tuned dynamic resonant network, resulting in mysterious shifting harmonic textures.
Press the HIGH BAND button to accentuate higher frequency harmonics, creating a washy, dreamy, ambient top end.
All Gain, No Loss.

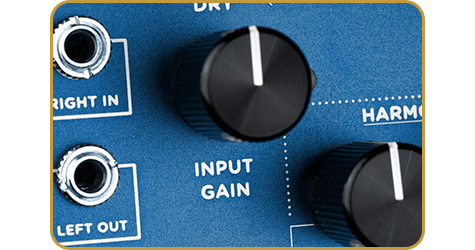

Input GainInput Gain controls the gain of the input signal fed to the reverb structure using a soft clipping input stage. This allows you to add pleasing musical harmonic distortion to the signal being processed by the reverb. A post gain signal level LED continuously indicates strength from clean (green) to heavy soft clipping (red).
Suspend Animation

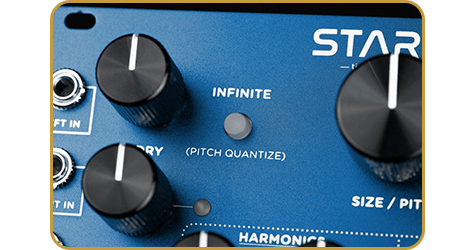

InfiniteStarLab’s INFINITE button freezes the audio at the input to the reverb core, while any new audio can still be processed by the reverb on top of the frozen audio. Not only does this allow you to create a lush ambient bed for your other sounds to play over, it can be repitched to transform StarLab into a CV tunable synth voice, quantizable to 15 built-in scales.
In Quantize mode, the scale selection quantizes the SIZE / PITCH knob as well as the LFO (with Pitch as target), while the CV input is quantized to half-steps.
Harmonic Sculpting Machine

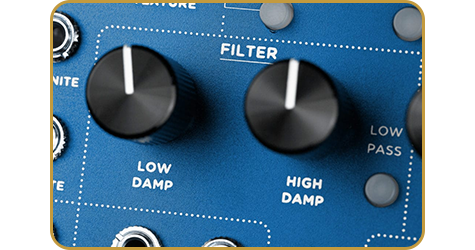

FilterStarLab’s filter section is designed for intuitive, musical sound-sculpting of both the reverb signal and the Karplus-Strong string synthesis voice. LOW DAMP is a powerful sound shaper for the reverberated signal. At minimum it allows extended lows to reverberate for cavernous possibilities. If the reverb tail gets muddy, a quick turn of the LOW DAMP knob can clean it up effectively. In Karplus-Strong mode, this control reduces the low frequency content of the string.
HIGH DAMP removes high frequency content from the regenerating reverb structure. In Karplus-Strong mode, this control functions as a string damper, dampening the high end harmonics as the string decays. Press the LOW PASS button, and the HIGH DAMP function changes to a classic 24dB/octave low pass filter applied at the output of the reverb. The low pass filter has adjustable resonance for dramatic filter sweeps. In Karplus-Strong mode, this control functions as a string damper, dampening the high end harmonics as the string decays and conveying a variety of “right-hand” plucking techniques.

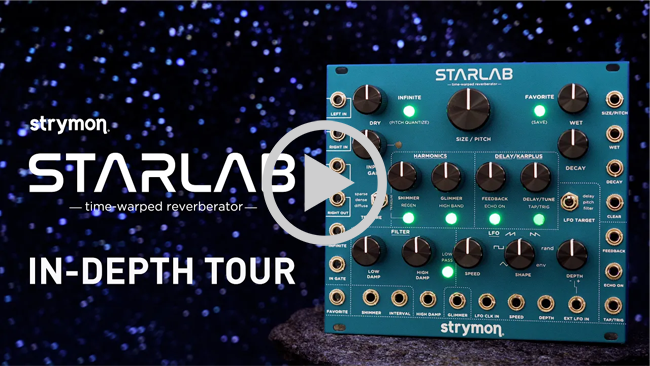

Strymon StarLab – In-Depth Tour with Sound Designer Pete Celi
The Tech Spec
| Features | Specification | Type | Reverb Module with String Generator |
|---|---|
| Effects Types | Reverb, Chorus, Delay, Flanger, Filter |
| Number of Presets | 4 x User |
| Polyphony | Monophonic |
| Analogue Inputs | 2 x 1/8" (L/mono, R) |
| Analogue Outputs | 2 x 1/8" (L, R) |
| Other I/O | 18 x CV in |
| Depth | 1.61" (41mm) |
| HP Size | 28HP |
| Power Usage | +12V 210mA, -12V 210mA |
| Power Supply | Requires Eurorack case and power supply |
