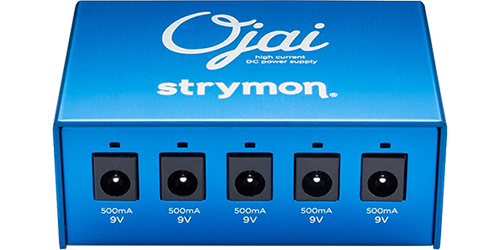

Strymon Ojai Compact Pedal Power Supply
Strymon - Ojai Compact Pedal Power Supply, 5 High-Current, Fully Isolated 500mA 9V Outputs with Center-Negative Polarity
Email me when the availability or price changes
Compact Pedal Power Supply
Strymon - Ojai
Big power, small sizeThe Strymon Ojai gives your pedals full power as the most technologically advanced effects pedal power supply of its size. Clean, rock-steady power straight to your effects pedals in a lightweight and expandable package, giving you flexibility and room to grow. Five high-current, individually isolated, ultra-low-noise outputs—each are included with its own dedicated regulator and custom transformer. Each output provides a massive 500mA of current. Ojai’s dual-stage topology, pre-regulated outputs, optically isolated feedback, and advanced multistage filtering result in a power supply that allows your pedals to achieve their highest possible dynamic range.
Ojai’s fully analogue circuitry offers two stages of isolation, completely eliminating ground loop and AC line noise issues, allowing your pedals to sound like they were designed to sound. With automatic international power compatibility built-in, Ojai delivers clean, reliable power to all your pedals, on any stage anywhere you play in the world. If your rig is growing - Ojai is part of an expandable system. Gain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai to add five more outputs to a Zuma power supply (sold separately).
At A Glance
• 5 high-current, fully isolated 9V outputs with center-negative polarity
• 5 pedal cables included (5.5mm x 2.1mm barrel connectors, right angle to straight)
• 24V power adapter (PS-124), EIAJ-05 power adapter cable, and IEC cable included
• 24V Thru jack allows connection to additional Strymon Ojai (sold separately)
• 500mA per output powers nearly any pedal

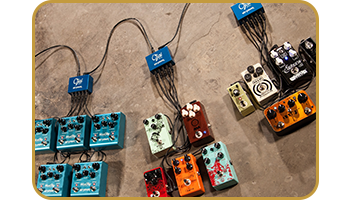

Expandable System
Never run out of outputsGain more outputs by connecting additional Ojai units to the 24V Thru jack. Or use Ojai to add five more outputs to our Zuma power supply (sold separately).
Ojai is part of a truly expandable, modular power distribution system that can grow with your pedalboard.
Ultra Low Noise
Hear your pedals, not your powerMany popular guitar pedals were originally designed to work with batteries, as they're inherently very low noise and not susceptible to ground loops, these pedals often were not designed to be resistant to noise from power supplies.
The ultra-low-noise design prevents power noise from bleeding into the audio signal, allowing your pedals to deliver the highest possible dynamic range.
World Tour Ready
international powerIf you're playing gigs all around the world, you wont need to purchase separate power supplies for your international tour. Ojai has automatic worldwide power compatibility built-in (when connected with the appropriate IEC cable).
If you’re on 120V, 240V, 100V, or any variation in between, Ojai will deliver clean, reliable power to your pedals, even if the venue has dirty power.
Dual Isolation
all analogue circuitryEach of the five output channels is individually isolated from the 24V DC, and the 24V DC is isolated from the AC input power, eliminating ground loop and AC line noise issues.
Ojai also provides dual power regulation: Wide-bandwidth optically isolated feedback loops on each channel, as well as on the input, allow both the input and outputs to adjust for changes, ensuring solid output under changing load conditions.
Energy Efficient
green at heartSignificantly more efficient than linear power supplies, Ojai is capable of delivering substantially more current while handling a much wider range of input voltages.
Ojai’s high efficiency design delivers high-current power distribution in a compact unit, for a small carbon footprint and a small pedalboard footprint.
The Tech Spec
| Features | Specification | Type | Pedalboard Power Supply |
|---|---|
| Inputs | 100V-240V AC (IEC power cable included) |
| Outputs | 5 x 9V DC outlets, 1 x 24V thru jack (for additional Ojai) |
| Maximum Output Current | 500mA per outlet |
| Isolated Output | Yes |
| Ojai Dimensions | 3.2″ x 2.3″ x 1.3” 81mm x 58mm x 33mm |
| Power Adapter Dimensions | 4.2″ x 2.15″ x 1.25” 107mm x 55mm x 32mm |
| Weight | Ojai: 4.7 oz. (133g) Power Adapter: 4.7 oz. (133g) |
