Strymon AA.1 Amplifier Attenuator Eurorack Module
Strymon - AA.1 Amplifier & Attenuator Eurorack Module, 18dB Attenuation for Use with Pedals
Email me when the availability or price changes
Finance this product
- From £10.79 / month (APR 16.9%) for 12 months or 0% for 4 months
- Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
- SCANPROTECT Protect against installation damage for 28 days.
Suggested Alternatives
Amplifier Attenuator Eurorack Module
Strymon - AA.1

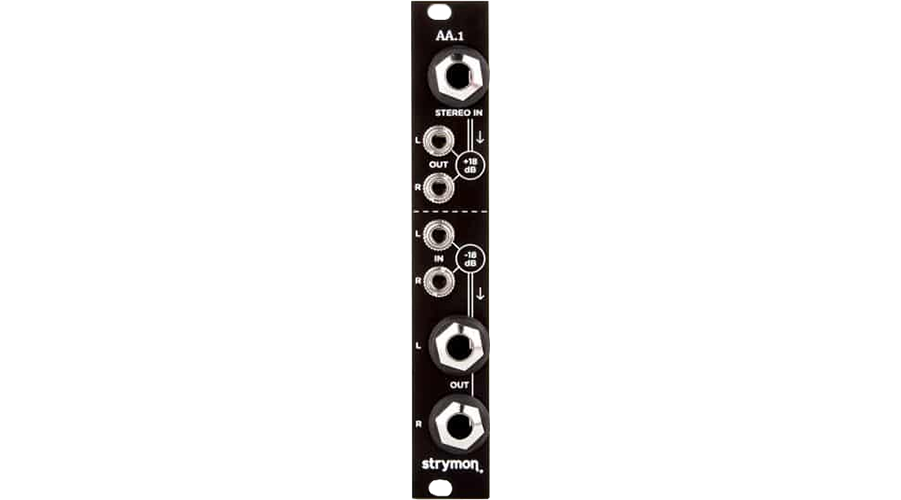

A Bridge Between WorldsAA.1 is designed to be your bridge between the world of guitar pedals and the world of Eurorack modular. This compact 4HP amplifier attenuator module features all you need to interface your modular with your guitar effects pedals as well as with your guitar or bass. AA.1 is purpose built to combine your guitar gear and Eurorack modules in just about any way you can imagine. Connect a pedal to the effects send and return of Magneto. Use your guitar or bass as a signal source for mangling and warping with your modular gear. Send an instrument level stereo master output from your modular rack to your computer audio interface.
AA.1 is designed to solve all the issues that arise when introducing guitar gear to the world of Eurorack. Most Eurorack modules output very hot audio signal levels that can easily overload the inputs of effects pedals or computer audio interfaces. And it’s not just the output of the modules: Audio inputs in a Eurorack system also need to receive hot signals. AA.1 amplifies the input and attenuates the output signals to the appropriate levels. AA.1 is easy to use. The 1/4″ stereo input amplifies guitar level signals by +18dB, outputting the amplified signal through left and right 1/8″ outputs (use the left output for mono). Left and right 1/8″ inputs attenuate Eurorack level signals by -18dB, sending the attenuated signal through left and right 1/4″ outputs suitable for outputting to guitar level products.
At A Glance
• Allows you to use guitar effects pedals with Eurorack modular synthesizers
• Eurorack signal level is attenuated by 18dB for use with pedals
• Boosts the return of your pedal chain back up by 18dB for reintegration with your Eurorack
• Designed and built in the USA
The Tech Spec
| Features | Specification | Amplifier | Gain: +18dB Max Input Level (before soft clipping): 2.25Vpp Max Output: 18Vpp Input Impedance: 1 MΩ Output Impedance: 1 kΩ 20Hz – 20kHz, +/- 1dB |
|---|---|
| Attenuator | Gain: -18dB Max Input Level (Nominal): 20Vpp Max Output Level (Nominal): 2.5Vpp Input Impedance: 8 kΩ Output Impedance: 880 Ω 20Hz – 20kHz, +/- 1dB |
| Power | +12V rail: 10mA max -12V rail: 10mA max +5V rail: 0mA |
Dimensions | 4 HP Eurorack format module Rack Depth: 1.5″ (38mm) |
