Scan code: LN86860 Manufacturer code: DKT30CHPDW

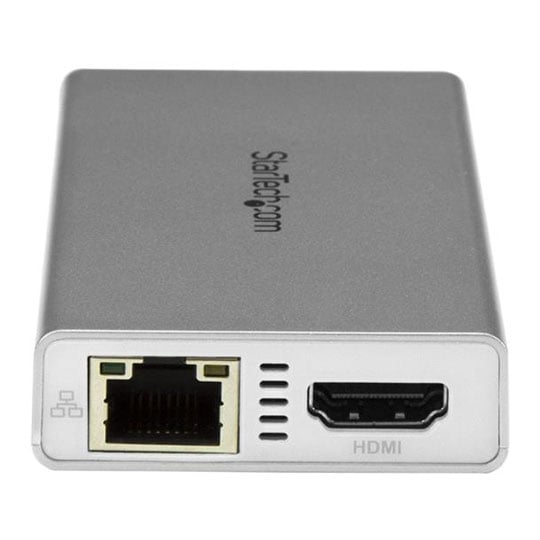

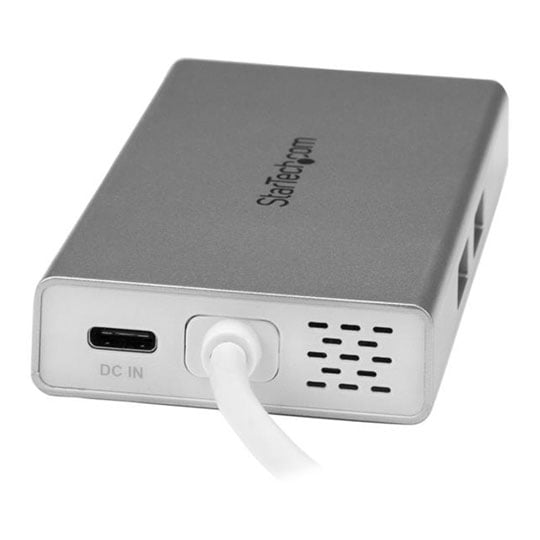

USB-C Multiport Adapter for Laptops Power Delivery 4K HDMI - GbE - USB 3.0 - Silver & White

StarTech.com USB-C Multiport Adapter for Laptops - Power Delivery - 4K HDMI - GbE - USB 3.0 - Silver & White

Thumbnail 1 : USB-C Multiport Adapter for Laptops  Power Delivery 4K HDMI - GbE - USB 3.0 - Silver & White Thumbnail 2 : USB-C Multiport Adapter for Laptops  Power Delivery 4K HDMI - GbE - USB 3.0 - Silver & White Thumbnail 3 : USB-C Multiport Adapter for Laptops  Power Delivery 4K HDMI - GbE - USB 3.0 - Silver & White Thumbnail 4 : USB-C Multiport Adapter for Laptops  Power Delivery 4K HDMI - GbE - USB 3.0 - Silver & White
Scan code: LN86860 Manufacturer code: DKT30CHPDW
£67.49
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 19th Nov 2018 to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview Power and charge your laptop through USB Type-C (5Gbps), and create a workstation virtually anywhere you go, adding 4K video, GbE, and two USB 3.0 ports
Expand the connectivity of your USB-C™ enabled laptop. This sleek and compact USB-C multiport adapter, in attractive silver and white, is the perfect accessory for your MacBook Pro, MacBook, Chromebook™ or other USB Type C™ equipped laptop. The adapter is also Thunderbolt™ 3 port compatible, so you can connect it to your Thunderbolt 3 equipped laptop.

The USB-C adapter lets you create a powerful workstation virtually anywhere, providing 4K Ultra HD (3840 x 2160p) HDMI video output, two USB 3.0 ports, and a Gigabit Ethernet port. You can also power both the multiport adapter and your laptop simultaneously, with support for USB Power Delivery 2.0.

Create a powerful workstation
When coupled with your laptop display, this versatile USB-C multiport adapter makes it easy to create a dual-monitor workstation when you need it. It offers a 4K HDMI® port (with audio), so you can easily connect a high-resolution monitor and gain access to more screen space. With higher resolutions, you can view more windows at once and increase your productivity.

The Gigabit Ethernet port ensures reliable wired network access, which is ideal for areas with limited Wi-Fi access. Plus, with two additional USB 3.0 ports (USB Type-A) you can connect your existing peripheral devices, like your mouse or flash drive.

Designed for easy portability
This multiport adapter means you don’t have to carry multiple power adapters with you. Ideal for mobile use, it features a USB-C port that supports USB Power Delivery 2.0 (USB PD 2.0), so you can use your laptop’s USB-C power adapter to power both your laptop and the multiport adapter.

The versatile multiport adapter is compact and lightweight, so it's easy to tuck into your laptop bag. It consolidates multiple ports into a single adapter, which means you don’t need to bring along multiple single-function adapters.

The adapter also features an integrated USB-C cable, which means one less cable to carry with you. The cable’s extended length at 25 cm (9.84"), provides you with more placement options, so you can position the adapter exactly where you need it, to work in comfort.

Note: To ensure full adapter functionality, your laptop’s USB-C port must support USB Power Delivery and DP alt mode. Features • Expand the connectivity of your MacBook Pro, MacBook, Chromebook or other USB-C enabled laptop.
• Power both the multiport adapter and your laptop simultaneously, using your laptop’s USB-C based power adapter (supports USB Power Delivery 2.0).
• Provides 4K Ultra HD (3840 x 2160p) HDMI video output with 30Hz refresh rate, two USB 3.0 ports, and a Gigabit Ethernet port.
• Compact, rugged housing for portability and reliability, with attractive white and silver finish.
• Two additional USB Type-A ports let you connect your existing USB devices (backward compatible with USB 2.0 and 1.x devices).
• Extra length 25 cm (9.84") attached USB-C cable provides greater flexibility.
• Thunderbolt 3 port compatible.
• Supports DP Alt Mode.
• Gigabit Ethernet RJ45 port supports Wake-on-LAN (WOL), jumbo frames, VLAN tagging, and Energy-Efficient Ethernet.
• Easy setup with native support in most Windows® and Mac operating systems (also works with Google Chrome OS™).

Applications
• The portable adapter, in silver and white, is the perfect accessory for your MacBook Pro, MacBook, Chromebook or other USB-C laptop, adding 4K video, GbE and two USB 3.0 ports.
• Power the adapter and your laptop through USB-C, using your laptop’s power adapter.
• Integrate the compact adapter into small workspaces in offices and home offices.
• Connect your laptop to a projector and enjoy multimedia content at home, or display engaging presentations in boardrooms and classrooms.
• Use an HDMI port-equipped television in a hotel room as an external display when traveling.

Specification
Hardware
4K Support: Yes
Bus Type: USB-C
Chipset ID: VIA/VLI - VL813, VIA/VLI - VL100, Chrontel - CH7525A, ASIX - AX88179
Displays Supported: 1
Fast-Charge Port(s): No
Industry Standards:
- IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- USB 3.0 - Backward compatible with USB 2.0 and 1.1
Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate: 5 Gbps (USB 3.0), 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector(s)
Connector Type(s):
- 1 - USB Type-C (24 pin) USB 3.0 Male
- 1 - HDMI (19 pin) Female
- 1 - RJ-45 Female
- 2 - USB Type-A (9 pin) USB 3.0 Female
- 1 - USB Type-C (24 pin) USB 3.0 Female
Software
OS Compatibility:
- Windows® 7, 8, 8.1, 10
- Mac OS® 10.9 to 10.13
- Chrome OS™
Special Notes / Requirements
Note: Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your host USB-C port supports USB Power Delivery 2.0 and DP alt mode.

The adapter can connect to a host laptop’s USB-C port that doesn’t support USB Power Delivery 2.0. However, in this configuration if a power adapter is connected to the multifunction adapter, it will not pass power through to your host laptop.

A 4K-capable display is required to achieve 3840 x 2160p resolution (4K is also known as 4K x 2K)

USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.

Your laptop might have specific charging requirements. For example, if your laptop requires exactly 60W of power and an adapter consumes some of the 60W, your laptop might not recognize that it is getting enough power. For more information about Power Delivery, refer to the manufacturer of your hardware.

System and Cable Requirements: A host laptop with an available USB-C port (to ensure full adapter functionality, the host USB-C port must support USB Power Delivery 2.0 and DP alt mode)

Optional: USB-C power adapter (for example, your laptop’s USB-C based power adapter)

Power
Power Delivery: 60W
Power Source: USB-Powered
Environmental
Humidity: 0~85% RH (Non-condensing)
Operating Temperature : 0°C to 50°C (32°F to 122°F)
Storage Temperature: -10°C to 65°C (14°F to 149°F)
Physical Characteristics
Cable Length: 250 mm [9.8 in]
Colour: Silver & White
Enclosure Type: Plastic
Product Height: 16 mm [0.6 in]
Product Length: 96 mm [3.8 in]
Product Weight: 64 g [2.3 oz]
Product Width: 51 mm [2 in]
