Scan code: LN86865 Manufacturer code: DKT30CHD

USB-C Multiport Adapter for Laptops - 4K HDMI - GbE - USB-C - USB-A

StarTech.com USB-C Multiport Adapter for Laptops - 4K HDMI - GbE - USB-C - USB-A

Thumbnail 1 : USB-C Multiport Adapter for Laptops - 4K HDMI - GbE - USB-C - USB-A Thumbnail 2 : USB-C Multiport Adapter for Laptops - 4K HDMI - GbE - USB-C - USB-A Thumbnail 3 : USB-C Multiport Adapter for Laptops - 4K HDMI - GbE - USB-C - USB-A Thumbnail 4 : USB-C Multiport Adapter for Laptops - 4K HDMI - GbE - USB-C - USB-A
Scan code: LN86865 Manufacturer code: DKT30CHD
£59.48
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD On 22nd Nov 2018 to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Product Overview Add HDMI, Gigabit Ethernet, USB-A, and USB-C ports (5Gbps) to your laptop through a single USB Type-C™ cable
Expand the connectivity of your USB-C™ equipped laptop, wherever you go. With this USB-C™ adapter, you can create a powerful workstation, providing support for an Ultra HD 4K monitor, a wired network connection, USB-A device and a USB-C device.

Ideal for mobile use, the USB-C multiport adapter is the perfect accessory for your Dell™ Precision, Dell XPS, MacBook or other USB Type-C™ laptop. Since it uses USB-C, the adapter is Thunderbolt™ 3 port compatible, to connect to your Thunderbolt 3 equipped laptop.

Create a powerful workstation
When coupled with your laptop, this USB-C adapter makes it easy to set up a dual-monitor workstation. It offers an HDMI® port that supports 4K Ultra HD 4096 x 2160p with audio to connect a high-resolution monitor, plus it supports 3840 x 2160p resolution. When traveling, you can use an HDMI port-equipped television in a hotel room as a second display. The travel adapter is also ideal for quick setups in conference rooms or boardrooms, to deliver engaging presentations.

Gain reliable network access
The USB-C multiport adapter ensures reliable wired network access with a Gigabit Ethernet port, which is ideal for areas with limited Wi-Fi® access such as in classrooms, office buildings and hotels.

Connect your USB devices with ease
The multiport adapter provides a versatile way to connect USB devices to your port-limited laptop. Connect an existing device, like your mouse or a flash drive, to the USB Type-A port. With the USB-C port, you are future-ready to add a USB-C device.

Designed for easy portability

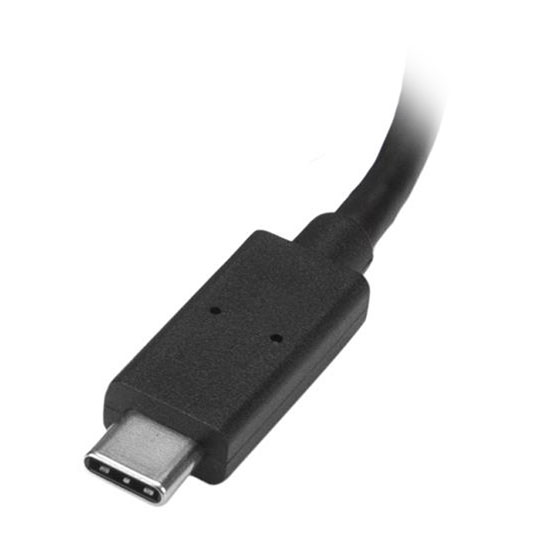

The bus-powered multiport adapter is portable and compact, tucking easily your laptop bag. Since it consolidates multiple ports into a single adapter, you don’t need to bring along multiple single-function adapters. The adapter also features a built-in USB-C cable, which means one less cable to carry. Installation is fast and simple, with native support in most operating systems.

Note: Your USB-C equipped host laptop must support video (DP Alt Mode) to work with this adapter. The adapter does not support USB Power Delivery. Features • Add more connectivity to your USB-C laptop with a 4-in-1 multiport adapter, supporting 4K HDMI, USB-A, USB-C and Gigabit Ethernet.
• Easily connect an external display with HDMI support: 4K Ultra HD 4096 x 2160p @ 24Hz, or 3860 x 2160p @ 30Hz.
• Gigabit Ethernet port (RJ45) with Wake-on-LAN (WOL) support, ideal for areas with limited Wi-Fi.
• Connect peripheral USB devices to the USB-A port (backward compatible with USB 2.0 and 1.x) and USB-C port.
• Compact portable design, ideal for mobile use.
• Bus-powered, supporting USB 3.0 (up to 5Gbps).
• Thunderbolt 3 port compatible.
• TAA compliant.
• Supports DP Alt Mode.
• Supports IEEE 802.3 (10BASE-T), 802.3u (100BASE-TX), and 802.3ab (1000BASE-T) protocols.

Specification
Hardware
4K Support: Yes
Bus Type: USB-C
Chipset ID:
- Genesys Logic - GL3523
- Realtek - RTL8153
- Parade - PS176
Displays Supported: 1
Fast-Charge Port(s): No
Performance
Auto MDIX: Yes
Compatible Networks: 10/100/1000 Mbps
Full Duplex Support: Yes
Maximum Data Transfer Rate:
- 5 Gbps (USB 3.0)
- 2 Gbps (Ethernet; Full-Duplex)
Maximum Digital Resolutions: 4096 x 2160p @ 24Hz or 3840 x 2160p (HDMI) @ 30Hz
Type and Rate: USB 3.0 - 5 Gbit/s
UASP Support: Yes
Connector(s)
Connector Type(s):
- 1 - USB Type-C (24 pin) USB 3.0 Female
- 1 - USB Type-C (24 pin) USB 3.0 Male
- 1 - HDMI (19 pin) Female
- 1 - RJ-45 Female
- 1 - USB Type-A (9 pin) USB 3.0 Female
Software
OS Compatibility:
- Windows® 7, 8, 8.1, 10
- Mac OS 10.10 to 10.13
- Chrome OS™
Special Notes / Requirements
Note: Not all USB-C ports support the full functionality of the USB Type-C standard. Ensure that your laptop USB-C port supports DP alt mode.

A 4K-capable display is required to achieve 4K x 2K resolution (4K is also known as 4K x 2K).

USB 3.0 is also known as USB 3.1 Gen 1; this connectivity standard offers speeds up to 5Gbps.

The USB Type-C connector (female) is data only.
System and Cable Requirements: Host laptop with an available USB-C port (to ensure full functionality, the laptop's USB-C port must support DP alt mode).
Power
Power Source: USB-Powered
Environmental
Humidity: 5~90% RH (Non-condensing)
Operating Temperature: 0°C to 60°C (32°F to 140°F)
Storage Temperature: -20°C to 60°C (-4°F to 140°F)
Physical Characteristics
Cable Length: 340 mm [13.4 in]
Colour: Black
Enclosure Type: Plastic
Product Height: 15 mm [0.6 in]
Product Length: 65 mm [2.6 in]
Product Weight: 52 g [1.8 oz]
Product Width: 62 mm [2.4 in]
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
36 months
Type:
Return to base
DOA Period:
14 days
RTB Period:
36 months
