Scan code: LN96780 Manufacturer code: PEX2S1P553B

Startech.com 2S1P PCI Express Combo Card

Startech.com 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable

Thumbnail 1 : Startech.com 2S1P PCI Express  Combo Card Thumbnail 2 : Startech.com 2S1P PCI Express  Combo Card Thumbnail 3 : Startech.com 2S1P PCI Express  Combo Card Thumbnail 4 : Startech.com 2S1P PCI Express  Combo Card
Scan code: LN96780 Manufacturer code: PEX2S1P553B
£29.99Item currently awaiting an ETA
Pre order
spend over £225 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
Delivery Options
  • By DPD to your specified address. | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview The PEX2S1P553B 2S1P PCI Express Serial Parallel Combo Card with Breakout Cable combines the functionality of Parallel and Serial cards, adding 2 RS232 serial ports and 1 parallel port through a single PCI Express (PCIe) slot.

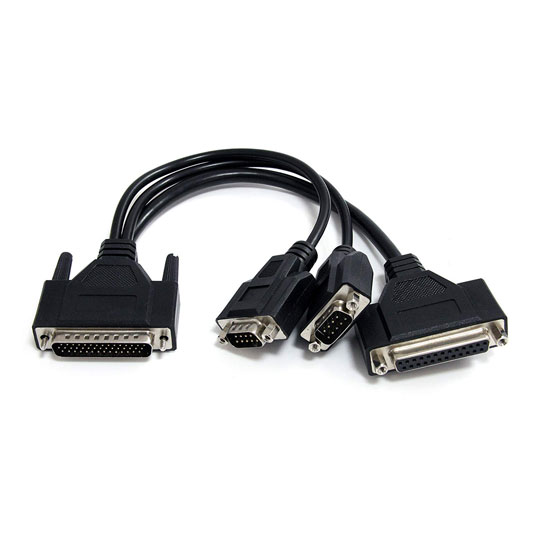

Suitable for almost any computer, the card offers a low profile/half-height design and includes an optional full-height bracket. The included break-out cable uses a single connector on the card to deliver 3 ports, avoiding crowded connections that can occur with fixed/static ports. Compatible with a broad range of operating systems including DOS, Windows® 7/Server 2008 R2/Vista/XP/Server 2003/2000/98SE (32/64 bit), Linux and Mac OS X.

The card also features a native single-chip design that provides improved speed and reliability while reducing the CPU load by as much as 48% over conventional (bridge chip) cards.

This product is a replacement for our PEX2S1P552B card.

Backed by a StarTech.com Lifetime warranty and free lifetime technical support. Features • Low profile/half-height design with optional full profile bracket
• Single-chip architecture, no bridge chip
• Supports parallel data transfer rates up to 1.5 Mbps
• Supports serial data transfer rate up to 250 Kbps (per port)
• Compatible with industrial standard 16C450/16C550 UART
• Supports (SPP), Enhanced Parallel Port (EPP), Enhanced Capability Port (ECP)
• PCI Express Base Specification 1.0a compliant
• On=chip 256-byte depth FIFO in transmit/recieve path of each port
• Single-Lane (X1) PCI-Express host connection
Specifications
Interface PCIe 1.0 (x1)
Connectivity 3 x RS232
Additional Information
Scan Code LN96780
Model Number PEX2S1P553B
GTIN 5054484419457
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
7 days
RTB Period:
12 months
