Sony C-80 Condenser Microphone
Sony - C-80 Condenser Microphone, Dual-diaphragm Uni-directional Condenser Microphone
Email me when the availability or price changes
Uni-Directional Condenser Microphone
Sony - C-80
perfect for Vocals with a soaring MidrangeSony’s C-80 is a versatile uni-directional condenser microphone suitable for vocal/voice recording. Inheriting the microphone capsule used in Sony’s C-100 and using the same material as the C-800G for the diaphragm, this microphone inherits the essence of the predecessors.
The dual diaphragm configuration suppresses sound characteristics changes with distance (proximity effect), enabling stable recording/distribution. "Noise Elimination Construction" succeeded from C-800G/C-100 prevents acoustic vibration resulting in low noise and clear sound.
138 dBMax SPL
20Hz～20kHzFrequency Response
XLR 3-Pin MaleConnector
at a glance
• Dual-Diaphragm Capsule
• Unidirectional Polar Pattern
• XLR Output, Requires 48V Phantom Power

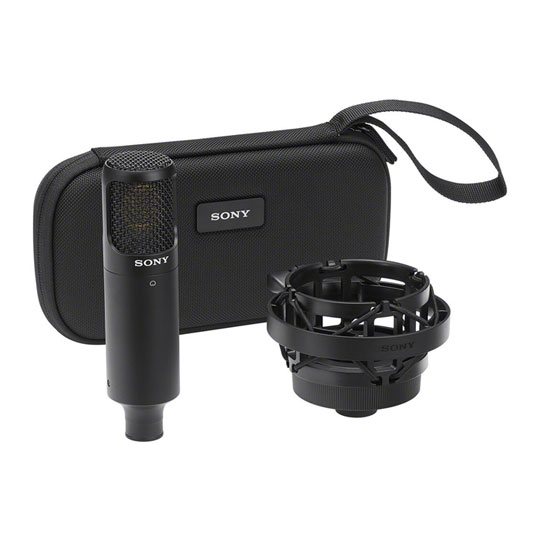

• Includes Shockmount
Dual-Diaphragm Design
cardioid polar patternAt the core of the C-80's excellent sonic character is the dual-diaphragm microphone element, which helps to minimize proximity effects for sonically consistent recordings. In addition, the cardioid polar pattern focuses audio capture at the area around the mic, reducing unwanted sound from the rear and sides.

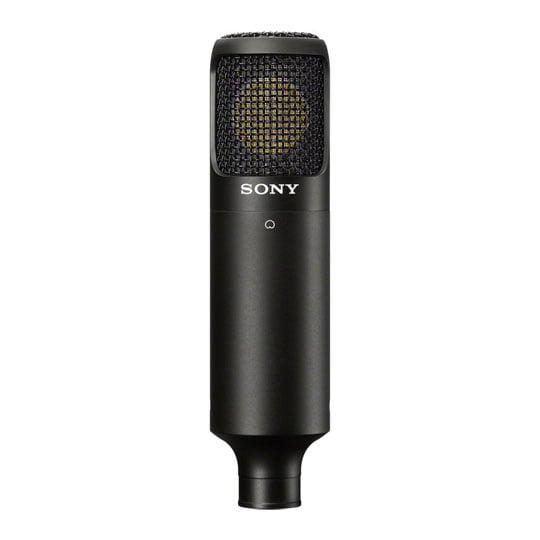

Aluminum BodyThe C-80 microphone incorporates a two-part aluminum body that helps to prevent acoustic vibration from reaching the microphone capsule, resulting in clarity of sonic reproduction.
Introducing the C-80 Microphone
The Tech Spec
| Features | Specification | Capsule Type | Condenser Microphone |
|---|---|
| Frequency Response | 20Hz～20kHz |
| Directivity | Uni directional |
| Sensitivity | -30 dB (deviation ±3 dB) (0 dB=1 V/Pa, 1 kHz) |
| Output Impedance | 90Ω±15%, Balanced |
| Dynamic Range | More than 125.5 dB |
| Signal-to-Noise Ratio | 81.5dB |
| Inherent Noise | Less than 12.5 dB SPL (0 dB=2 × 10-5 Pa) (IEC* 61672-1 A-Weighted, 1 kHz, 1 Pa) |
| Maximum Input Sound Pressure Level | More than 138 dB SPL (output level for 1% waveform distortion at 1 kHz, converted into equivalent input sound pressure level: 0 dB=2 × 10-5 Pa) |
| Connector | XLR-3-12C (male) |
| Power Requirements | DC 44 to 52 V |
| Dimensions | Approx. 40 mm (1.57 in.) dia. × 158 mm (6.22 in.) |
| Weight | Approx. 215 g |

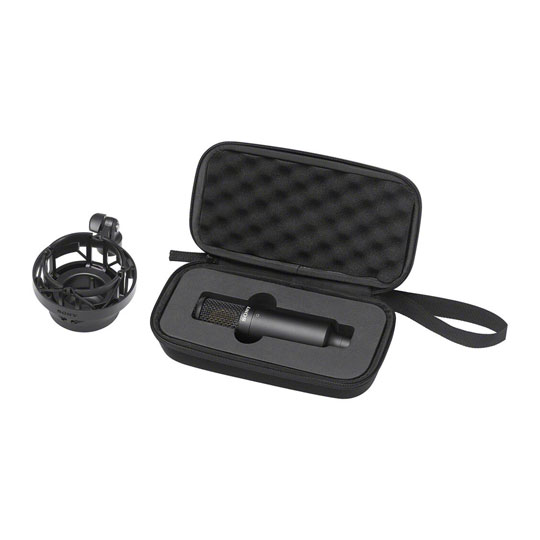

| Supplied Accessories | Cradle suspention (1) Operating instructions (1) Carrying case (1) |
