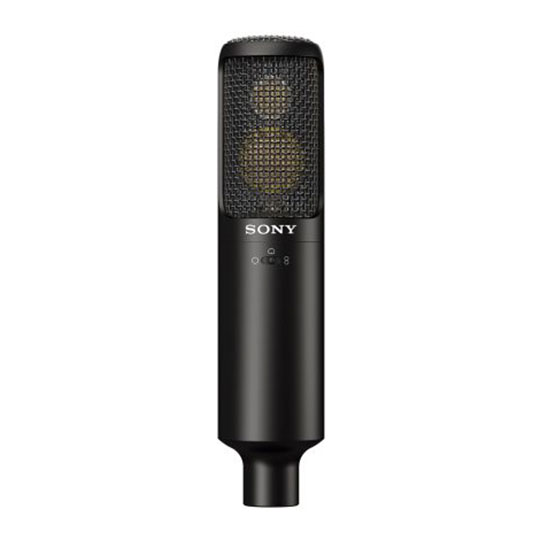

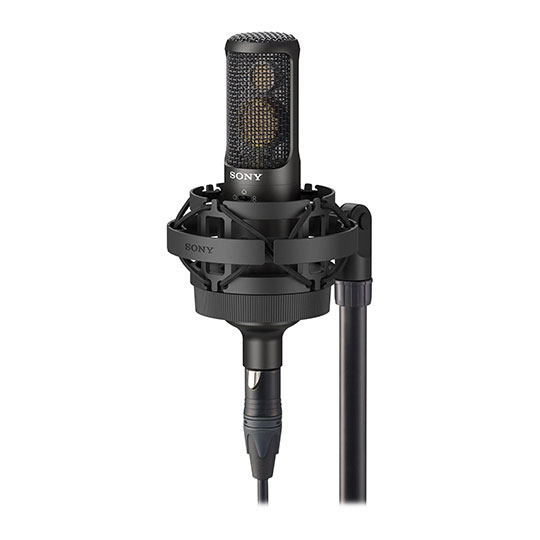

Sony C-100 Microphone

Product Overview The Sony C-100 Microphone is a new side-address studio condenser microphone incorporating advanced microphone technology making it compatible with Hi-Resolution Audio. The C-100 has three selectable polar patterns: Omni, Uni (cardioid) and Bi (figure-of-8).

The C-100's newly-developed double microphone capsule uses technology first used on the world famous C-800G studio mic to incorporate advanced noise elimination and amazing reproduction of vocals and musical instruments alike.

With excellent sound quality, a wide frequency response, noise elimination construction, a low cut filter and switchable polar patterns, the Sony C-100 Hi-Res Studio Mic is a powerful recording tool, essential for every studio.

The Sony C-100 Microphone is a two-way condenser microphone, compatible with Sony High-Resolution Audio featuring an extended frequency response from 20Hz up to 50 kHz. This is a formidable studio vocal mic. Sony has designed the C-100 with Hi-Resolution Audio in mind, using advanced technology and housing developed from the C-800G vocal mic to allow for incredibly wide frequency range and low self noise. The C-100 is suitable for critical vocal and instrument recording in recording studios, as well as live and broadcast situations.

Incorporating newly developed double microphone capsules and noise elimination structure, originally employed in the C-800G microphone, the C-100 delivers a broad frequency range of 20 to 50,000 Hz and excellent reproduction of vocal and musical qualities. The condenser element of the C-100 microphone provides a selectable pick-up pattern (Omni/Uni/Bi) for various recording applications. Features Excellent Sound Quality
Two-way diaphragm structure realizes both broad high range and resonant mid-low range and gives great vocal presence.

Wide Frequency Response
The C-100 microphone has a broad frequency response (20 Hz to 50kHz) and provides superb sound reproduction quality for High-Resolution Audio.

Noise Elimination Construction
Two-part metallic body structure succeeded from C-800G microphone prevents acoustic vibration resulting in low noise and clear sound.

Switchable Polar Patterns
The C-100 microphone features switchable uni-directional, omni-directional and Figure-8 ploar patterns for various recording applications.

Low-Cut Filter
Low-Cut filter switch helps eliminate low-frequency noise and proximity effect.

Pad Switch
An -10dB pad switch on C-100 microphone provides added headroom and minimizes distortion caused by transient peaks.

• Capsule Type: 2 Way Microphone (Condenser + Back electret condenser)
• Frequency Response: 20 Hz to 50 kHz
• Directivity: Uni-directional/Omni-directional/Bi-directional
• Sensitivity *[1]:
- (Uni-directional) -31 dB
- (Omni-directional) -37 dB
- (Bi-directional) -35 dB
• Output Impedance: *[2]90O±15%, Balanced
• Dynamic Range:
- (Uni-directional) 113 dB or more
- (Omni-directional) 114 dB or more
- (Bi-directional) 114 dB or more
• Signal-to-Noise Ratio *[3]
- (Uni-directional) 75 dB or more
- (Omni-directional) 70 dB or more
- (Bi-directional) 72 dB or more
• Inherent Noise *[4]:
- (Uni-directional) 19 dB SPL or less
- (Omni-directional) 24 dB SPL or less
- (Bi-directional) 22 dB SPL or less
• Maximum Input Sound Pressure Level *[5]:
- (Uni-directional) 132 dB SPL
- (Omni-directional) 138 dB SPL
- (Bi-directional) 136 dB or SPL
