Sonnet XMac Studio Enclosure With No Module
Sonnet Xmac Studio, No Module, One Adhesive-Backed Magnet For SSD
Email me when the availability or price changes
Sonnet - 'XMac Studio'

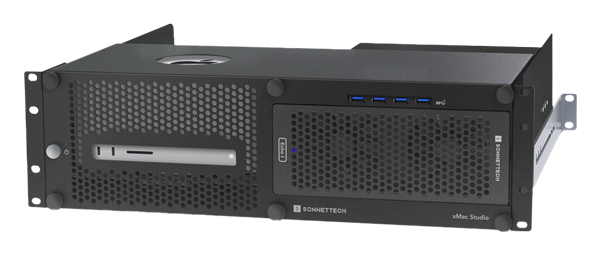

Designed For Professional Workflow ExpansionSonnet xMac Studio integrates a Mac Studio into a compact rackmount enclosure with an optional PCIe card expansion module to support your diverse audio and video application needs. with firm rubber cushions the Sonnet xMac Studio securely holds your Mac Studio and Thunderbolt expansion module in place, adding mobility to your workflow so your ready for anything. Standard mounting holes and adjustable rack rails allows for easily installation into any standard server rack mount up to 24” deep. Front to back Airflow management allows your enclosure to keep running as cool as it would on your desk. Behind a covered opening beneath the computer is a space to place up to three USB or Thunderbolt SSDs (sold separately), held in place with the include adhesive-backed magnet.
Designed for Expansion

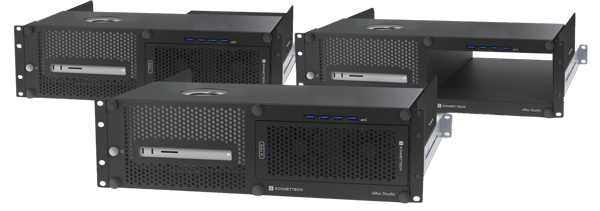

Three Systems To Choose FromFor many creative professionals, PCIe card expansion for connecting specialty cards to handle audio and video post-production projects is not an option — it’s a necessity! Sonnet designed the xMac Studio for pro workflow flexibility; choose a system configured with a Thunderbolt to PCIe card expansion module that best suits your needs. xMac Studio is also available without a module so you can add one at a later date, or use one of your existing compatible Sonnet expansion modules.

Three Card ExpansionxMac Studio/Echo III
Enclosure with Echo III Module
Buy now

One Card ExpansionxMac Studio/Echo I
Enclosure with Echo I Module
Buy now

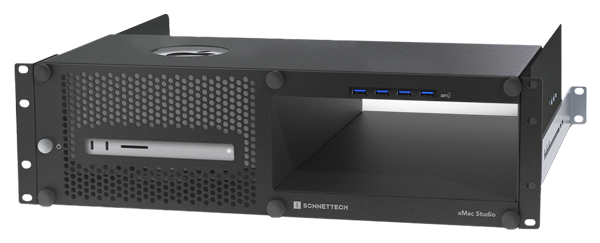

Optional Card ExpansionxMac Studio/No Module
Enclosure with no module
Buy now
Control And Connect

Easy Access to Mac Studio and PCIe Card Expansion ModulexMac Studio is a rugged steel 3U rackmount enclosure for securing a Mac Studio with optional PCIe card expansion module in a rack, placing the Mac Studio behind a quick and easy to remove front panel. Convenient front panel operation allows you turn Mac Studio on with its own dedicated front power button, connect USB devices through a 4-port USB-A hub, and access the computer’s front ports and SD card slots. When equipped with an Echo III or Echo I PCIe Card Expansion Module, three rear panel locking thumbscrews allow you to easily pull out and access the module and PCIe cards through the front without removing the front panel. The xMac Studio design enables you to connect and disconnect cables without needing to remove the Mac Studio from the enclosure.
An opening on top of xMac Studio ensures hindrance-free wireless signal access. The xMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS® device control apps.

Front USB-A PortsNo production downtime – swap ubiquitous USB-A flash drives with on set colleagues.
Key Features

Connects PCIe Card Slots To Mac StudioUse high-performance PCIe cards with the Mac Studio.

Makes Your Mac Studio Road-ready3U rackmount enclosure with firm rubber cushions securely holds the Mac Studio and Thunderbolt expansion module in place, adding mobility to your workflow.

Ideal for Use in Server RoomsStandard mounting holes and included adjustable rack rails enable easy installation into any standard server rack up to 24” deep.

Front To Back Airflow ManagementSupports direct airflow through the enclosure, Mac Studio, and Thunderbolt expansion module to keep them operating as cool in a rack as on a desk, even when the xMac Studio is mounted between two other rack-mounted components.

Front Panel Power Switch and Integrated USB-A PortsFront panel button enables operation of the computer’s rear-mounted power switch; integrated USB-A hub enables connection of four USB peripherals to the Mac Studio.

Easy AccessNo tools required – removable front panel secured with thumbscrews allows easy installation of and access to the Mac Studio. Secured with three thumbscrews on the back, the Thunderbolt expansion module can be removed and reinstalled through the front of the enclosure without removing the front plate.

Space for StorageBehind a covered opening beneath the computer is a space to place two Thunderbolt or USB SSDs (sold separately); two included adhesive-backed magnets secure them in place.

Open Slot and Port AccessProvides access to the computer’s SD card slot and front and back panel ports, enabling you to connect and disconnect cables easily.
Cool Design

Go with the Airflow – Supports the Mac Studio Thermal DesignxMac Studio secures your Mac Studio without trapping in recirculating hot rack air, supporting its thermal design to keep it as cool in a rack as out on a desk. Ventilation holes on the enclosure’s front panel plus an enclosed chamber beneath the Mac Studio ensures the computer’s ability to draw in cool air through its base, while a completely open back enables it to expel warm air out the back unimpeded.
Road Trip Ready

Workflows On The GoDo you need to take your workflow on the road? The xMac Studio is a perfect travel solution. Its 16.5-inch mounting depth – plus firm rubber cushions that securely hold your Mac Studio in place during transport – make xMac Studio ideal for use in molded rack cases from Gator Cases, fly racks from SKB Cases, or most any travel rack.
