Sonnet - 'RackMac Studio'
Power ContainedSonnet RackMac Studio integrates Mac Studio computers into a compact rackmount enclosure for diverse audio and video application needs.
Control and Connect
Easy Access to Mac Studio ComputersRackMac Studio is a rugged steel 3U rackmount enclosure for securing one or two Mac Studio computers in a rack, placing them behind a quick and easy to remove front panel. Convenient front panel operation allows you turn Mac Studio computers on with their own dedicated front power buttons, connect USB devices through passthrough USB-A ports, and access the computers’ front ports and SD card slots. The RackMac Studio design enables you to connect and disconnect cables easily without needing to remove the computers from the enclosure.
Openings on top of RackMac Studio ensure hindrance-free wireless signal access. The RackMac Studio is designed to allow normal WiFi and Bluetooth wireless operation in most configurations (depending on rack type and position in rack), so you can use wireless devices and iOS® device control apps.
Key Features
Rackmount solution for Mac StudioSecures one or two Mac Studio computers inside a compact and rugged steel enclosure.
Ideal for Use in Server Rooms3U height and standard mounting holes enable easy installation into any standard server rack.
Easy Computer AccessRemovable front panel secured with thumbscrews allows easy installation of and access to the Mac Studios with no tools required.
Front Panel Power Switches and USB PortsFront panel buttons enable easy operation of the Mac Studios rear-mounted power switches; USB-A ports enable connection of a USB peripheral to each computer.
Space for StorageBehind a covered opening beneath each Mac Studio is a space to place Thunderbolt or USB SSDs (sold separately); two included adhesive-backed magnets secures them in place.
Open Slot and Port AccessProvides access to computers’ SD card slots and front and back panel ports, enabling you to connect and disconnect cables easily.
Road Trip Ready9.5-inch mounting depth plus firm rubber cushions that hold the Mac Studios securely in place during transport make RackMac Studio perfect for use in portable racks and shallow molded rack cases.
Front to Back Airflow ManagementSupports direct airflow through each Mac Studio to keep it operating as cool in rack as on the desk, even when the enclosure is mounted between two other rackmounted components.
Cooling Design
Go with the AirflowRackMac Studio secures your Mac Studios without trapping them in recirculating hot rack air, supporting their thermal design to keep them as cool in a rack as out on a desk. Ventilation holes on the enclosure’s front panel plus an enclosed chamber beneath each computer ensure the computers’ ability to draw in cool air through their bases, while a completely open back enables them to expel warm air out the back unimpeded.
Space for SSDs
Secure Thunderbolt or USB SSDs Under Each Mac StudioRackMac Studio provides space beneath each Mac Studio computer to house Thunderbolt or USB SSDs (sold separately) up to 3.2 inches wide by 0.75 inch tall. Simply remove the rear access panel, apply the supplied adhesive-backed magnet to the bottom of an SSD, insert the SSD and connect it to the computer, and then reinstall the panel. The space is also suitable for other thin, bus-powered devices.

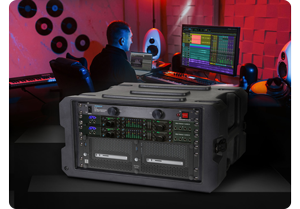

Road Trip Ready
Workflows on the GoDo you need to take your workflow on the road? The RackMac Studio is a perfect travel solution. Its 9.5-inch mounting depth – plus firm rubber cushions that securely hold your Mac Studios in place during transport – make RackMac Studio ideal for use in shallow molded rack cases from Gator Cases, fly racks from SKB Cases, or most any travel rack.
Thunderbolt Expansion Options
add an Echo III Rackmount Expansion SystemIf you need to add PCIe card expansion to two Mac Studio computers, use the RackMac Studio and add an Echo III Rackmount system configured with an additional Echo I or Echo III Module to connect up to three professional PCIe cards to each computer, all in just 5U of rack space.
xMac StudioIf you need to mount only one Mac Studio but also need the capabilities of a Thunderbolt™ to PCIe card system to connect one or three PCIe cards to your computer, Sonnet xMac Studio is ideal for many users. Expanding on the RackMac Studio design, xMac Studio includes an Echo I or Echo III Module instead support for a second computer.
