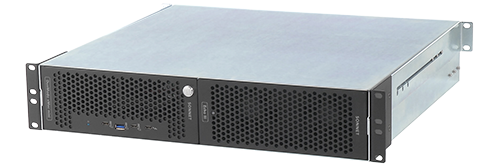

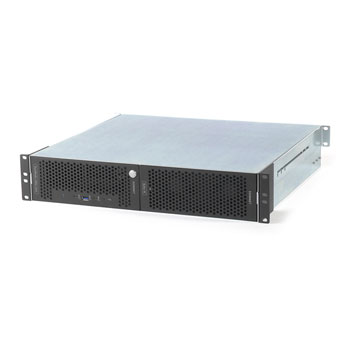

Sonnet DuoModo xMac mini/Echo III Rackmount System
Sonnet DuoModo xMac mini/Echo III Rackmount System, Mac Mini + PCIe Card Expansion System, 2U, Thunderbolt 3
Email me when the availability or price changes
Sonnet - 'DuoModo xMac mini/Echo III Rackmount Enclosure'
Creative Modular Expansion
Mac mini Integration + THREE PCIE SLOTSThe pre-configured DuoModo™ xMac™ mini/Echo™ III Rackmount System integrates a Dual-Module Rackmount Enclosure with one xMac mini module and one Echo III module. Allowing you to install an Intel or M1 Mac Mini with up to three PCIe Expansion cards in a single Thunderbolt 3 2U rackmount enclosure with a 400W power supply.
xMac Mini Features
Add a Mac mini• Securely holds an Intel or M1 Mac mini in horizontal or vertical orientation
• Open access to the computer’s ports in back
• Rugged steel frame protects installed Mac mini
• Thunderbolt 3 (40Gbps) cable included
Built-in Thunderbolt 3 Dock with SSD Sockets and Front Panel PortsAdd up to 16TB of M.2 NVMe SSD Storage!
Four Front Panel Ports
• One Thunderbolt 3 (40Gbps) port
• Two USB 3.2 (10Gbps) Type-C ports
• One USB 3.2 (10Gbps) Type A port
Internal Connections
• Two M.2 NVMe SSD sockets – add up to 16TB (SSDs sold separately)
• One internal USB 3.2 (10Gbps) Type A port
• Internal Thunderbolt 3 (40Gbps) port connects dock to the Mac mini
Internal USB Type A Port• Internal USB Type A port included for securely connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive
Quiet Fan•Temperature-controlled, variable-speed fan offers quiet operation
Echo III Features
Adds Connectivity & CapabilitiesConnects up to three high-performance non-GPU PCIe cards to your computer lacking expansion slots via a Thunderbolt 3 cable.
Broad PCIe Card CompatibilityEvery Thunderbolt 3 compatible, non-GPU card supported regardless of length or height.
Pro Tools | HDX CompatibleHDX compatibility mode enables use of up to three Pro Tools | HDX PCIe cards with no additional parts needed.
Three PCIe 3.0 SlotsOne x16 plus two x8 slots support three full-height, single-width cards, or one double-width card plus one single-width card.
Pro PowerIntegrated 400W power supply with 75W auxiliary power. Saves energy by powering on/off automatically with the computer.
Remarkably QuietDual temperature-controlled, variable-speed Noctua fans rated at 17dBA automatically and quietly cool the cards.
40Gbps Thunderbolt 3 InterfaceOffers 2750 MB/s of PCIe bandwidth for the installed cards.
Two Thunderbolt 3 PortsOne port connects to computer; second port supports daisy-chaining of up to five additional Thunderbolt peripheral devices.
