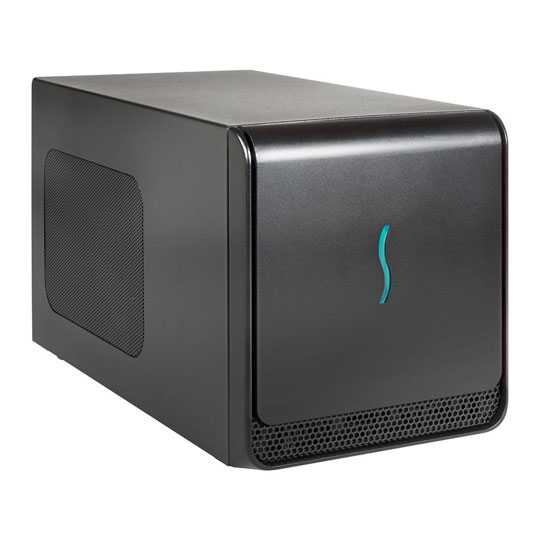

eGFX Breakaway Box - 350W by Sonnet

Sonnet eGFX Breakaway Box - 350W Thunderbolt 3 Expansion System for Desktop GPU or Other PCIe Cards

Sonnet
Scan code: LN81340 Manufacturer code: SON-GPU350W-TB3Z Request call
£318.00
In stock
Pay on Scan Finance with a 10% deposit from just £7.94 / month (APR 15.9%)
Mid Range
Free Delivery Delivery options Free By DPD On 26th Sep 2017 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More
Product Overview Connect a High-Performance Graphics Card or Other Bandwidth-Hungry PCIe Card to a Thunderbolt 3-Equipped Computer
At the 2017 NAB Show, Sonnet unveiled its new eGFX Breakaway™ Box, a Thunderbolt 3-to- PCI Express® (PCIe®) expansion solution designed specifically for bandwidth-intensive graphics applications. The Breakaway Box enables all the popular GPU cards that support connecting to a computer over Thunderbolt such as AMD Radeon® R9 and RX and RX and NVIDIA® GeForce® GTX, providing GPU support for computationally-intensive applications.

Graphic Intensive Gaming
There’s no need to carry a heavy and expensive gaming laptop to have a great gaming experience—just plug in a Breakaway Box and add the GPU power you want when you need it! By delivering much higher frame rates for smooth game play, the Breakaway Box is ideal for enabling graphic-intensive gaming on computers (such as thin/light notebooks) that otherwise would not be able to produce an acceptable gaming experience. When used with computers that properly support eGPUs, accelerated graphics can either be displayed on your notebook’s own display panel or on external monitors. And, unlike with gaming laptops, when the next generation of GPUs rolls around and you are ready for another performance boost, simply upgrade the GPU card—nobody should have to replace their computer just to keep up with the latest in GPU technology.

Ready for Work, Coolest & Quietest eGFX Graphics Card Box on the Market
In addition to eGPU cards, the Breakaway Box supports every other Thunderbolt-compatible PCIe card, regardless of the card's length or width—its single x16 PCIe 3.0 slot easily accommodates full-length cards such as the RED Rocket-X or AVID Pro Tools|HDX. The Breakaway Box’s single-port 40Gbps Thunderbolt 3 interface ensures the full 2750 MB/s of PCIe bandwidth(1) is dedicated to the installed card.
The Sonnet eGFX Breakaway Box is the coolest and quietest eGFX box on the market—with its large variable-speed, temperature-controlled fan that quietly and effectively cools the installed card, the Breakaway Box can be comfortably used in noise-sensitive working environments.

For Media Professionals
In today’s 4K workflows, harnessing the computational engine in today’s GPU cards is essential to keeping up with on-set and post production timelines. The eGFX Breakaway Box is ideal for supporting the acceleration of special effects, animation, colour grading, rendering, and editing.

40Gbps Thunderbolt 3 Performance
Thunderbolt 3 is a leap forward in every way. Whether you’re editing 4K video at high frame rates or blasting aliens out of the sky, you can now transform your notebook into a true desktop experience. With up to 2750 MB/s available bandwidth(1), the Breakaway Box exploits its 40Gbps Thunderbolt 3 interface to offer the best-possible eGPU experience, or handle the most demanding, highest performance PCIe cards.

Available with 350W or  550W  Power Supply
Sonnet offers two eGFX Breakaway Box models to choose from—the eGFX Breakaway Box 350 and eGFX Breakaway Box 550—enabling you to select one best suited to your needs. The eGFX Breakaway Box 350 includes 8-pin plus one 6-pin auxiliary power connectors, supports cards requiring 300W or less power, and provides 15W of upstream power. The eGFX Breakaway Box 550 includes dual 8-pin auxiliary power connectors, supports cards requiring 375W+ of power, and provides 87W of upstream power, useful for charging your notebook computer. Both models include a 0.5-meter Thunderbolt 3 (40Gbps) cable to connect the box to your computer. Whichever model you choose, the Breakaway Box is Thunderbolt Certified for Mac and Windows.

Ideal for Accelerating
• Special effects
• Animation
• Colour grading
• Rendering
• Editing

Also Ideal for Enabling Graphic Intensive Gaming on Non-Gaming Computers:
• Enables high frame rate gaming with thin/light notebooks
• Accelerated graphics on notebook display or external display

No need to carry around a heavy/expensive gaming laptop—plugin GPU power when you need it Features • Connects High Performance GPU Cards to Computers with Thunderbolt 3 Ports
Connects a supported GPU card to your eGFX-compatible computer with Thunderbolt 3 ports

• Supports Cards With Popular GPU Chipsets
Includes AMD Radeon R9 and RX and NVIDIA GeForce GTX 7, 9 and 10 series

• x16 PCI Express 3.0 slot
Supports up to full-length, full-height, single- or double-width card

• Supports Other Thunderbolt 3-Compatible PCIe Cards
Perfect for full-length cards such as the RED ROCKET-X or AVID Pro Tools|HDX

• 40Gbps Thunderbolt 3 Interface with One Thunderbolt 3 (USB-C) Port
Ensures full 2750 MB/s of PCIe bandwidth(1) is dedicated to the installed card

• Available with 350W or  550W  Power Supply
Model with 350W power supply has one 8-pin & one 6-pin auxiliary power connector and delivers 15W of upstream power; model with 550W power supply has dual 8-pin connectors and can also deliver 87W upstream power to charge your computer

• Quietest eGFX System Available
Large built-in, variable-speed, temperature-controlled fan quietly and effectively cools the installed card

• Thunderbolt Certified for Mac & Windows (macOS does not support connection of GPU cards over Thunderbolt and GPU card drivers are not officially Thunderbolt compatible on macOS.)

Mac Compatibility
• Mac with Thunderbolt 3 ports
• Mac with a Thunderbolt 2 or Thunderbolt port with an Apple Thunderbolt 3 (USB C) to Thunderbolt 2 Adapter
• macOS 10.12.6+
• GPU card use see Tech Note 2

Windows Compatibility
• PC with a Thunderbolt 3 port (GPU card requires an eGFX-enabled Windows PC)
• Windows 10 (64-bit Edition Version 1703 or greater)

Technical Notes
1. While the eGFX Breakaway box features a 40Gbps Thunderbolt 3 interface, some computers equipped with Thunderbolt 3 use an x2 PCIe lane implementation of Thunderbolt 3 technology that limits PCIe performance to 20Gbps. Find more computer information here. Full performance also requires the use of the included Thunderbolt 3 (40Gbps) cable, or other Thunderbolt 3 (40Gbps) cables; look for the Thunderbolt icon AND the number 3 on the connector housings to identify these cables. Other than macOS High Sierra Developer Beta, macOS does not yet support connection of GPU cards over Thunderbolt and GPU card drivers are not yet officially Thunderbolt compatible for macOS. For more information, see Sonnet Support Library.
2. Choose eGFX Breakaway Box model that supports the power requirement of the chosen card.
3. Power adapter cable for Avid Pro Tools|HDX card sold separately.

One x16 PCI Express 3.0 slot and 350W / 550W Power Supply
· 40Gbps Thunderbolt 3 interface with one Thunderbolt 3 (USB-C) port
· Supports cards with popular GPU chipsets such as AMD Radeon R9 and RX and NVIDIA GeForce GTX 7xx, 9xx, and 10xx series
· Supports full-height, full-length and double-width cards
· Quietest eGFX box available

eGFX Breakaway Box 350
Slots - 1
PCIe Connector - x16
Cards Supported - Full Length
Thunderbolt Type - Thunderbolt 3
Thunderbolt Ports - 1
Universal Power Supply - 350W Internal
PCIe Auxiliary Power - 8-Pin + 6-Pin
Form Factor - Desktop
