ASUS AMD Radeon RX VEGA 64 ROG Strix OC Gaming 8GB HBM2 Graphics Card
8GB ASUS Radeon RX Vega64 ROG Strix OC Gaming, 14nm, 4096 Streams, 1298MHz, 1590MHz Boost, 945MHz HBM2, DP/HDMI/DVI-D
ROG Strix RX VEGA64 gaming graphics cards are packed with exclusive ASUS technologies, including all-new MaxContact Technology that is 2X more contact with GPU for improved thermal transfer, and Patented Wing-Blade IP5X-Certified Fans for maximum airflow and longer fan lifespan. While ASUS FanConnect II features 4-pin, hybrid-controlled headers connected to system fans for optimal system cooling. ASUS Aura Sync RGB LED synchronization enables a gaming system personalization and VR-friendly HDMI ports let gamers easily enjoy immersive virtual reality experiences. ROG Strix RX VEGA64 also has GPU Tweak II with XSplit Gamecaster that provides intuitive performance tweaking and instant gameplay streaming.
ASUS Aura Sync – Outshine the Competition
Featuring Aura RGB Lighting on both the shroud and backplate, ROG Strix graphics cards are capable of displaying millions of colours and six different effects for a personalized gaming system. ROG Strix graphics cards also feature ASUS Aura Sync, RGB LED synchronization technology that enables complete gaming system personalization when the graphics card is paired with an Aura-enabled gaming motherboard.

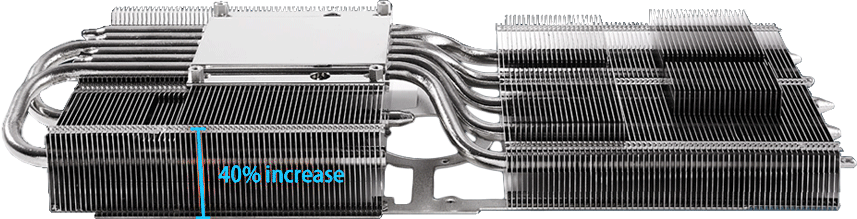

40% More Heat Dissipation Area - 20% Cooler and 3X Quieter Gaming Performance
New ROG Strix graphics are constructed with a 2.5-slot width, providing 40% more heat sink surface area for heat dissipation compared to previous 2-slot designs for dramatically cooler and quieter performance.
MaxContact Technology - 2X More Contact with GPU for Improved Thermal Transfer
MaxContact is an industry-first GPU cooling technology, featuring an enhanced copper heat spreader that directly contacts the GPU. MaxContact utilizes precision machining to provide a surface that makes up to 2X more contact with the GPU than traditional heat spreaders, resulting in improved thermal transfer.

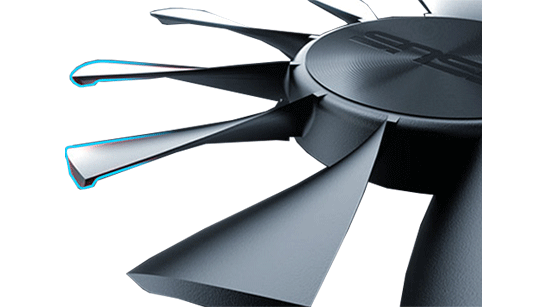

Patented Wing-Blade Design - Max Air Flow with 105% More Air Pressure
Patented wing-blade fans delivers maximum air flow and 105% greater static pressure over the heat sink, while operating at an up to 3X quieter volume than reference cards.

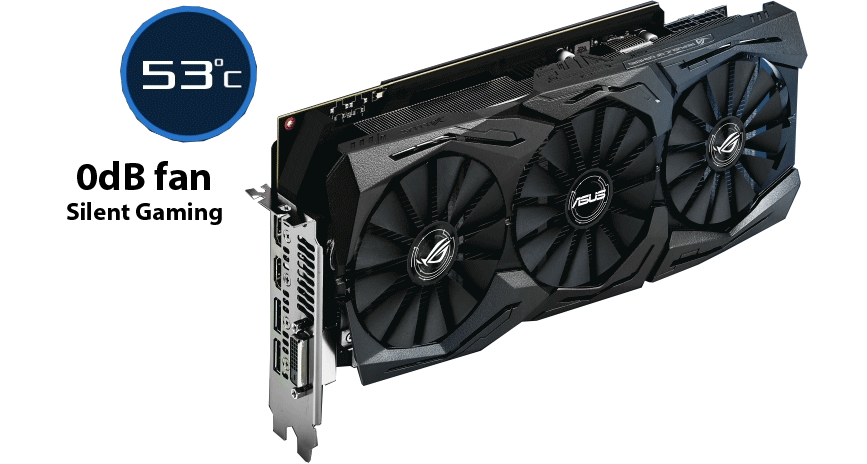

0dB Technology - Game in Complete Silence
Innovative 0dB technology stops the fan completely when the GPU temperature remains below a set level*, letting you enjoy light gaming in complete silence.
IP5X-Certified Dust Resistance - Longer Fan Lifespan
The fans in ROG Strix graphics cards are certified under the International Protection Marking (IP code) as IP5X dust resistant for improved reliability and a longer lifespan. This stringent certification process ensures ROG Strix graphics cards provide optimal fan performance, even under severe conditions.

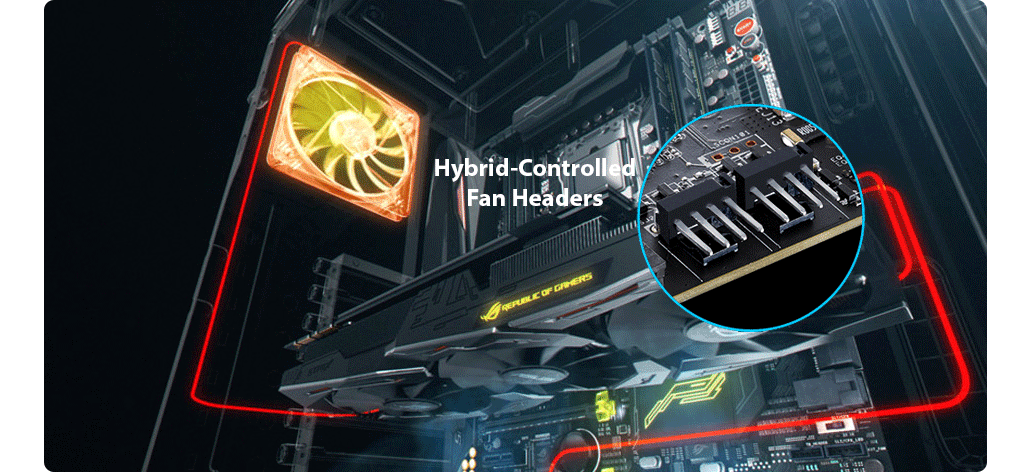

ASUS FanConnect II - Optimal System Cooling
ASUS FanConnect II features two 4-pin, hybrid-controlled headers that can be connected to both PWM and DC system fans for optimal system cooling. The connected fans reference both the GPU and CPU, operating automatically based on the one with the higher temperature. A comprehensive set of tuning options allow you to tune fan speeds for efficient cooling.
Auto-Extreme Technology - Industry-Only 100% Automated Production Process
All ASUS graphics cards are now produced using Auto-Extreme Technology, an industry-exclusive, 100% automated production process that incorporates premium materials to set a new standard of quality. Auto-Extreme Technology ensures consistent graphics card quality as well as improved performance and longevity. Since the introduction of Auto-Extreme technology, reliability has improved by 30%. This new manufacturing process is also environmentally friendly, eliminating harsh chemicals and reducing power consumption by 50%.
12+1 Phase Super Alloy Power II - Enhanced Durability and Efficiency
ASUS engineers have integrated premium alloy components into their graphics card designs to reinforce overall reliability. Super Alloy Power II components greatly enhance efficiency, reduce power loss and achieve thermal levels that are approximately 50% cooler than previous designs.
VR-friendly HDMI Ports - Easily Enjoy Immersive Virtual Reality Experience
ROG Strix graphics cards have two HDMI ports for connecting a VR device and display at the same time, so you can enjoy immersive virtual reality experiences anytime without having to swap cables. Features MaxContact Technology: That is 2X more contact with GPU for improved thermal transfer.
Patented Wing-Blade IP5X-Certified Fans: For maximum airflow and longer fan lifespan.
ASUS FanConnect II: Equips with hybrid controlled fan headers for optimal system cooling.
Industry Only Auto-Extreme Technology with Super Alloy Power II: Delivers premium quality and best reliability.
ASUS Aura Sync: RGB LED synchronization enables a gaming system personalization.
VR-friendly HDMI Ports: Lets you enjoy VR experiences anytime without having to swap cables.
GPU Tweak II with XSplit Gamecaster: Provides intuitive performance tweaking and real-time streaming.
|Chipset||Radeon RX Vega64|
|Edition||ROG Strix OC Gaming|
|Manufacturing Process||14 nm|
|Core Clock||1298 MHz|
|Boost Clock||1590 MHz|
|Memory Clock||945 MHz|
|Memory Speed (Effective with DDR)|
|Memory Data Rate||1.9 Gb/s|
|Memory Bus||2048 Bit|
|Peak Half Precision Compute Performance|
|Peak Single Precision Compute Performance|
|Cooling Solution||Tri Fan (3)|
|Cooler Design||DirectCU III with RGB LED|
|Interface||PCIe 3.0 (x16)|
|Maximum Digital Resolution||7680x4320 @ 60Hz|
|Maximum Analog (VGA) Resolution||N/A|
|Max. Concurrent Displays||5 Displays|
|AMD CrossFire Support||4-Way CrossFire|
|AMD Freesync Support||Yes|
|AMD FreeSync Version||FreeSync™ 2|
|Microsoft DirectX Support||12 API|
|Low Profile Support||N/A|
|Graphics Card TDP/Power|
|Graphics Card Power Connectors||2 x 8-pin PCIe|
|Minimum Recommended PSU|
|Maximum GPU Temperature|
|Dimensions||139 x 52.5 x 298 mm|
