Sonnet DuoModo xMac Mini Module
Sonnet DuoModo xMac Mini Module, Mac Mini + Thunderbolt SSD Storage Dock, 1x Thunderbolt 3, 2x USB 3.2 Type-C
- By DPD On 28th Oct to your specified address. | £11.50 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- SCANPROTECT Protect against installation damage for 28 days. More info
Sonnet - 'DuoModo xMac Mini Module'
Creative Modular Expansion

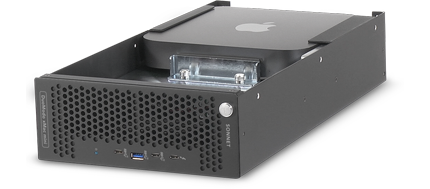

Mac mini Mounting Module + Thunderbolt SSD Storage DockThe DuoModo™ xMac™ mini Module is the ultimate Mac mini® upgrade. The module provides secure computer mounting in a DuoModo desktop or rackmount enclosure. It includes a built-in 40Gbps Thunderbolt™ 3 storage dock that adds NVMe storage expansion capability and additional ports for connecting peripherals.
Amazing Features
Add a Mac mini• Securely holds an Intel or M1 Mac mini in horizontal or vertical orientation
• Open access to the computer’s ports in back
• Rugged steel frame protects installed Mac mini
• Thunderbolt 3 (40Gbps) cable included
Built-in Thunderbolt 3 Dock with SSD Sockets and Front Panel PortsAdd up to 16TB of M.2 NVMe SSD Storage!
Four Front Panel Ports
• One Thunderbolt 3 (40Gbps) port
• Two USB 3.2 (10Gbps) Type-C ports
• One USB 3.2 (10Gbps) Type A port
Internal Connections
• Two M.2 NVMe SSD sockets – add up to 16TB (SSDs sold separately)
• One internal USB 3.2 (10Gbps) Type A port
• Internal Thunderbolt 3 (40Gbps) port connects dock to the Mac mini
Internal USB Type A Port• Internal USB Type A port included for securely connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive
Quiet Fan•Temperature-controlled, variable-speed fan offers quiet operation
Add up to 16TB of M.2 SSD Storage
The Ultimate Mac mini UpgradeAdd up to 16TB of M.2 SSD Storage. External Thunderbolt and USB Ports. One Internal USB Port. Secure Steel Enclosure.
The DuoModo xMac mini Module provides secure computer mounting in a DuoModo desktop or rackmount enclosure. It includes a built-in 40Gbps Thunderbolt 3 storage dock that adds NVMe storage expansion and additional ports for connecting peripherals.
40Gbps Thunderbolt and 10Gbps USB Ports

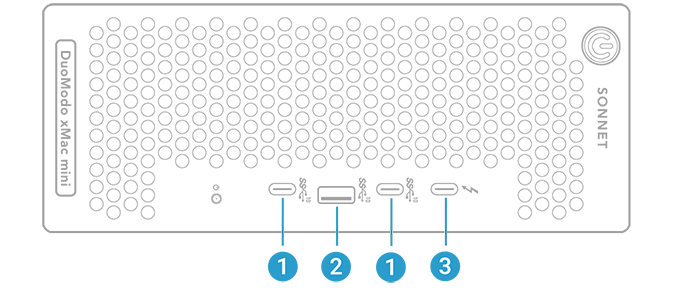

Front Panel ConnectivityThe front panel features one passthrough 40Gbps Thunderbolt 3 port and three 10Gbps USB ports (two Type-C, one Type A) for connecting peripherals.
1. USB-C PortConnect a USB-C peripheral device
2. USB-A PortConnect a USB-A peripheral device
3. Passthrough Thunderbolt 3 PortConnect a Thunderbolt peripheral device, display(s), or USB device (when connected with the proper cable or adapter)
Versatile Internal Expansion
M.2 SSD Storage + Internal USB Type A PortOn top of the dock are two M.2 NVMe SSD sockets for one or two M.2 2280 NVMe PCIe SSDs (sold separately). The dock also features an internal USB Type A port that's perfect for connecting an iLok USB-A, thumb drive, or bus-powered USB storage drive.
1. M.2 SSD SocketsSupports one or two M.2 2280 NVMe PCIe SSDs (with or without heat sink) with "M" key connectors
2. Internal USB-A ConnectorConnect an iLok USB-A, thumb drive, or bus-powered USB storage drive
3. Thunderbolt 3 Dock Interface ConnectorConnect the included Thunderbolt 3 (40Gbps) cable between this connector and the Thunderbolt connector on the installed Mac mini
4. Temperature-controlled FanProvides cooling for the Thunderbolt 3 dock, installed SSDs (sold separately), and the module's supporting Thunderbolt and power circuitry
5. Computer Housing and Bracket Location Padded bracket secures Mac mini in place
Quiet OperatorThe DuoModo xMac mini Module includes a temperature controlled, variable-speed fan that automatically and quietly provides cooling for the Thunderbolt 3 dock, any installed SSDs, and the module’s power adapter.
Combine with Other DuoModo ModulesBy connecting a DuoModo Echo III Module, you can connect PCIe cards required to provide additional connectivity and functionality, while plugging in a DuoModo eGPU Module* enables users to install in a GPU card capable of supporting many pro applications’ needs.
*Intel Mac mini required for eGPU support.
DuoModo Modular Thunderbolt Expansion Systems
