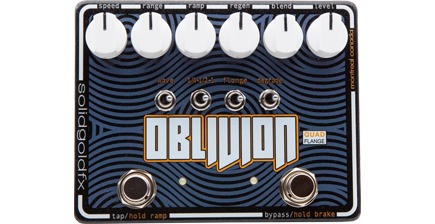

SolidGoldFX - 'Oblivion' Quad Flanger Pedal
SolidGoldFX - 'Oblivion' Quad Flanger Pedal, True Bypass, Diverse Modulation
- SCANPROTECT Protect against installation damage for 28 days. More info
SolidGoldFX - 'Oblivion'
Quad Flanger Pedal
Unique TexturesThe SolidGoldFX Oblivion Quad Flanger is a unique Flanger pedal different from any other. Experience a new world of dynamic tones and experiment to your hearts content. With multiple controls and switches taking you down a different path the Oblivion Quad Flanger delivers a wide range of tones.
From huge modulated movements to intense and rapid regenerating waves, lo-fi bit-crushed textural landscapes and much more, the Oblivion is here to offer more possibilities to a popular effect.
Imagine a classic Flanger with Thru-Zero capabilities to pull you in and out of the atmosphere. To take things even further, SolidGoldFX then designed the Bi-Flange mode, which offsets a pair of modulating delay lines for extra sweeping movement.
Amazing Features
• Unique quad flanger effects different from any other Flanger on the market
• Fine tune using Speed, Range, Ramp, Regen, Blend, Level controls
• Multiple switches built-in to select different flange modes
• True Bypass Footswitching
Unique Design
Eye Opening TexturesThe Oblivion features the unique quad-flange mode which adds four independent delay lines for massive epic tsunami-like textures.
To make things even more interesting, each of these Flangers have their own Degrade mode, bringing in a lo-fi element, unique to this pedal that guarantees new eye opening textures, mindful of ring mods or robotic overtones.
Fine Tune To Perfection
Extra FlexibilityAfter mastering the sounds and textures, SolidGoldFX added tons of flexibility for even more fine tuning. A Blend control allows you to adjust your wet and dry mix for smaller, more gentle Chorus sounds to a full-on swirling Flange effect.
Expression and CV capabilities, with internal Dip Switches, offer even more dynamic and control. The multi-function foot switch also gives you further capabilities for Tap Tempo, Speed Ramping and LFO Braking.
True Bypass Switching
A New World Of TonesThe Oblivion comes with two top-mounted footswitches and soft touch, relay True Bypass switching. When it comes to Flanger this pedal has it all... and then some. Use the Quad Flanger to dive into a new world of unique tones and textures like no other.

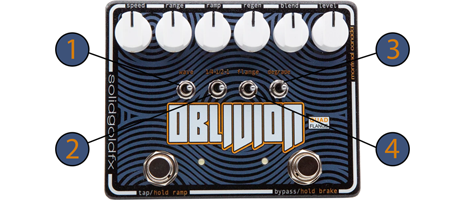

Using The Oblivion
WaveThis three-position switch changes the LFO waveform. When switched to the left, the waveform is bell curve, center selects a sine wave, and the right kicks in a downward sawtooth.
1/4-1/2-1This toggle switch provides three tap tempo multipliers. The left position selects whole notes (1/4x), the center position selects half notes (0.5x) and the right position selects quarter notes (1X).
FlangeThis toggle selects between three flange modes. The left position provides a classic through-zero flanger. The center position selects a bi-flange modulating 2 independent delay lines. The right position selects the quad-flange swirling 4 delay lines.
DegradeThis toggle switches on the lo-fi mode when set to the right. Each flanger setting has its own lo-fi mode changing the level of signal degradation.
The Tech Spec
| Features | Specification | Controls | Speed, Range, Ramp, Regen, Blend, Level |
|---|---|
| Switches | Wave, 1/4-1/2-1, Flange, Degrade |
| LED | Bypass, Filter |
| Footswitches | Tap, Bypass |
| Connections | Input (1/4" Jack), Output (1/4" Jack), Expression In (1/4" TRS-Jack) |
| Power Supply Connector | Barrel Connector 5.5 x 2.1 mm, center negative |
| Current Draw | 60 mA; powered by a 9 V DC Power Supply (not included) |
| True Bypass | Yes |
| Dimensions | 120 (W) x 95 (D) x 55 mm (H) |
| Weight | 370 g |
