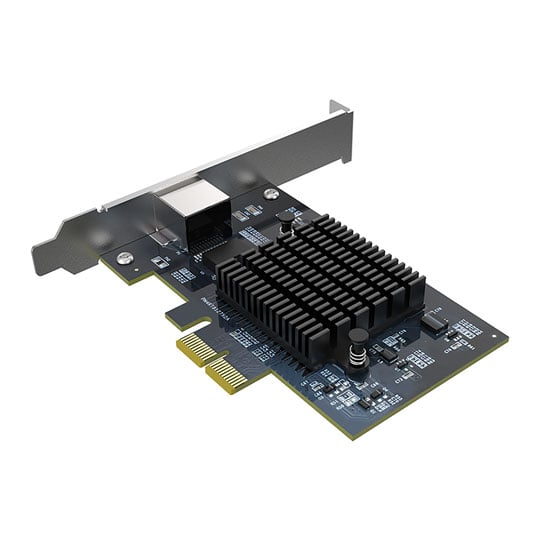

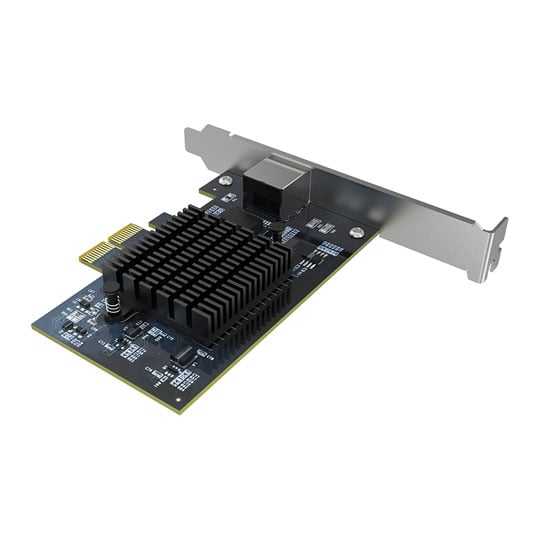

Akasa AK-PCCE10-01 10GbE PCIe 3.0 x2 Ethernet Network Adapter

Single Port Akasa AK-PCCE10-01 Network Card, PCIe 3.0 x2, Wake-on-LAN, IEEE 802.3bz, IEEE 802.3an, 10G / 5G / 2.5G / 1G
MORE INFO

MORE INFO

Scan code: LN171206 Manufacturer code: AK-PCCE10-01

£89.99

£5.48 Next day delivery

Order now and get it tomorrow, Tue 25th Aug

Add To Basket

Get it Tomorrow, 25 AugIn stock

Pay in 3 interest-free payments of £30.00

Email me when the availability or price changes

By DPD On 25th Aug Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores

Finance this product

Spend over £390.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

Product Overview

Multi-Gigabit Ethernet Connectivity

Upgrade your desktop, workstation or server to 10GbE networking with a single card installation. The Realtek RTL8127AT chipset delivers six auto-negotiating speeds: 10Gbps, 5Gbps, 2.5Gbps, 1Gbps, 100Mbps and 10Mbps, maintaining compatibility with existing network infrastructure at any speed tier.

Cat6a or Cat7 cabling recommended for 10Gbps.

PCIe 3.0 x2 Interface

Uses two PCIe 3.0 lanes to provide sufficient bus bandwidth for 10 Gbps operation. Ideal for upgrading existing workstations, servers and NAS enclosures.

Fits PCIe x4, x8 and x16 slots; also compatible with x2 slots where present on server and workstation boards.

Connectivity and Form Factor

Single RJ45 port with green activity LED and dual-colour green/amber link speed LED for at-a-glance status monitoring.

Fitted with an aluminium heatsink for effective heat dissipation. Includes full-height and low-profile brackets, supporting installation in standard ATX, small form-factor and rack-mounted enclosures.

Energy Efficient Ethernet

Compliant with IEEE 802.3bz (2.5G/5GBASE-T) and 802.3an (10GBASE-T), with built-in IEEE 802.3az (Energy Efficient Ethernet) support to minimise power consumption during low-traffic periods. Supports Wake-on-LAN (WoL) and jumbo frames up to 16K for reduced CPU overhead on large data transfers.

OS Compatibility

Compatible with Windows 10, Windows 11 and Windows Server 2003/2008/2022, as well as Linux Kernel 3.10 and later.

Wide Application Capabilities

A practical network interface card (NIC) ideal for desktops, workstations, servers, embedded systems and communications platforms requiring always-on connectivity with efficient power consumption.

Features

• Single RJ45 port with six-speed auto-negotiation: 10Gb/5Gb/2.5Gb/1Gb /100Mb/10Mb Ethernet
• PCIe 3.0 x2 interface fits PCIe x4, x8 and x16 slots
• Compliant with IEEE 802.3bz and IEEE 802.3an standards, with Energy Efficient Ethernet (IEEE 802.3az) support
• Full-height and low-profile brackets included
• Wake-on-LAN (WoL) support for remote power management
• Compatible with Windows 10/11, Windows Server 2003/2008/2022 and Linux kernel 3.10 or later
