SilverStone 4U Server/Workstation CPU Cooler for Intel / AMD

SilverStone XED120 WS 4U Server CPU Cooler, for Intel / AMD Server Sockets, 120mm Fan, 8 Copper Heatpipes, 4-Pin PWM
MORE INFO
MORE INFO

Scan code: LN156404 Manufacturer code: SST-XED120S-WS
£149.99
£5.48 NEXT DAY DELIVERY
Item due on 04 April 2025
Pre Order
Due 4th Apr

Email me when the availability or price changes

  • By DPD Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window | £5.48 Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
  • Collect instore Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE) | Free
  • UPS and DPD Pickup Pickup from local convenience store | £4.99 Collect your parcel from your newsagents, petrol stations and convenience stores
  • From £12.50 / month (APR 0%) or 0% for 4 months
    Monthly Payment: £12.50
    Instalment Rate: 0% p.a. (fixed)
    Cost of purchase: £149.99
    Total inc. interest: £149.99
    Example
    Minimum Spend: £99
    Instalment Rate: N/A
    Cost of purchase: £99
    Total inc. interest: £99
    If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 23.9% and may be even lower.

    Representative Example:

    Purchase Rate: 23.9% p.a. (variable)

    Representative: 23.9% APR (variable)

    Assumed Credit Limit: £1,200

    Subject to status. Terms and Conditions apply.
  • Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.
  • paypal short logo blue 0% UP TO   MONTHS Spend £99 or more and choose PayPal at checkout. More info
  • SCANPROTECT Protect against installation damage for 28 days. More info
  • 48HR REPLACEMENT If you need to return this item, your replacement will be dispatched within 2 working days of your product arriving back at Scan. More info

Suggested Alternatives

Product Overview

Workstation Socket-Orientated Design

The XED120-WS is compatible with a wide range of workstation sockets, including Intel’s LGA4677 and LGA4710, as well as AMD’s SP5, SP6, sTR5, SP3, TR4, sWRX8, and sWRX9.


Exceptional Heat Transfer Performance

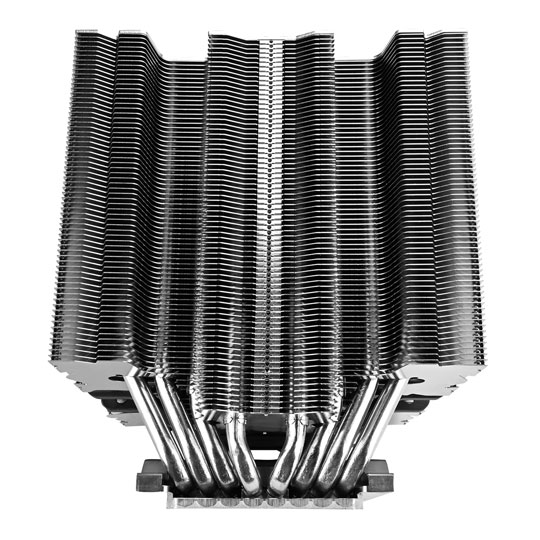

The XED120-WS features 8 6mm copper heat pipes in a dual-heatsink design, optimizing heat transfer efficiency. Engineered to manage the relentless operational demands and constant heat output of high-performance server CPUs, it ensures superior thermal management for sustained performance.


Compact, Interference-Free Design

The heatsinks are engineered in a 120mm form factor with a 145mm height, making the XED120-WS ideal for 4U rackmount cases. This design ensures a universal, interference-free installation, even with two units on dual-socket motherboards.


Ultimate Cooling Efficiency

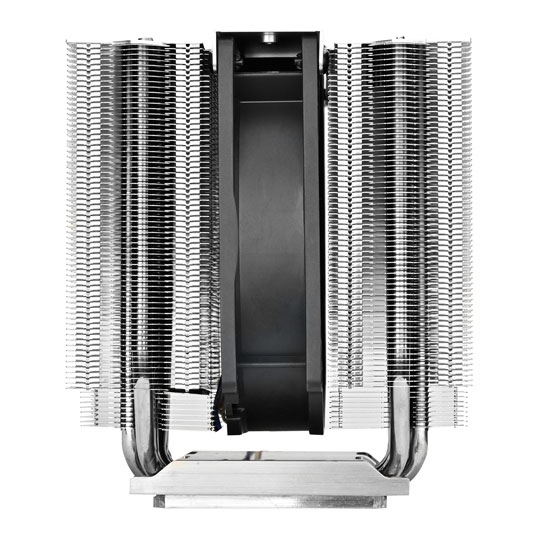

The heatsink is paired with a 30mm thick, 120mm PWM fan featuring high airflow and static pressure; entrusted with a dual ball bearing to deliver ultimate cooling efficiency and exceptional durability, heat-intensive environments. The fan's airflow path is perfectly aligned with the chassis airflow, aiding in the dissipation of heat from high-temperature VRMs.


Features

• Designed for optimal cooling in server-grade motherboards with dual CPU sockets
• Enhanced heat dissipation with front-to-back-directional airflow air duct for effective CPU and VRM cooling.
• Complies with 4U rackmount chassis standards, with a height of 145mm
• Features 8 6mm heat pipes and aluminium fins for superior cooling
• Includes a 120mm x 30mm PWM dual ball bearing fan
• Metal fan mounting bracket ensures stability and quiet operation
• Compatible with Intel LGA4677/4710 and AMD Socket SP5/SP6/sTR5/SP3/TR4/sWRX8/sWRX9

Specifications
Cooler Specifications
Edition XED120 WS
Cooler Form Factor Server
Heatpipes 8
Cooler Features
  • Aluminium Fins
  • Copper Heatpipes
Socket Compatibility
  • 4677
  • 4710
  • SP3
  • SP5
  • SP6
  • TR4
  • TR5
  • WRX8
Max. TDP
Fan Specifications
Included Fan Configuration 1 x 120mm
Fan Edition
PWM Fan Yes
Fan Bearing Type Dual Ball Bearing
Fan Colour Black
LED Lighting
Fan/Pump Connectors 1 x 4-pin PWM
Max. Fan Speed 3000 rpm
Max. Fan Airflow 102 CFM
Max. Air Pressure 8.24 mm H²O
Max. Sound Level 44.9 dBA
Materials
Cooler Materials Aluminium / Copper
Included TIM (Thermal Interface Material) Included
Dimensions & Weight
Heatsink/Radiator Dimensions
Total Dimensions 120 x 145 x 120 mm (WxHxD)
Weight 1150 g
