Shure - GLXD6+UK-Z4 - Digital Wireless Dual Band Guitar Pedal Receiver
Shure - GLXD6+UK-Z4 - Digital Wireless Dual Band Guitar Pedal Receiver
Email me when the availability or price changes
Finance this product
- Spend over £280.00 and Buy Now, Pay Later or spread the cost of your finance over 24-48 months with a 10% deposit.

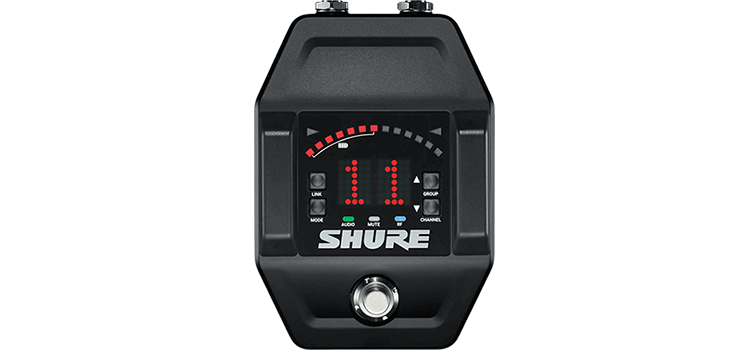

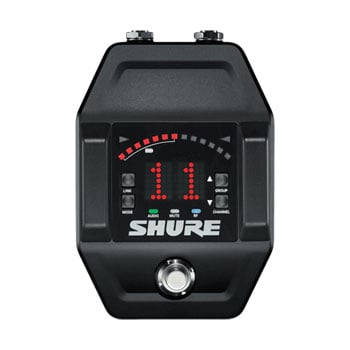

Digital Wireless Dual Band Guitar Pedal Receiver
Shure - GLXD6+
(Frequency Band: Z4 - 2.4 / 5.8GHz)
READY-TO-GO. EVERY TIME. AUTOMATICALLY.The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power). The included tuner with a new ¼” guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easily switch between two or more transmitters linked to a single receiver. Go wireless without compromising your tone or complicating your rig.
at a glance
• New Dual Band technology provides reliable and consistent performance in 2.4 and 5.8GHz
• Rugged metal chassis design that can be completely integrated into your pedalboard
• Compatible with 9V power supply in Pedalboards (minimum current: 400mA)
• Transmitter battery life monitoring via highly visible LED segment display
• Included Tuner with adjustable reference pitch (432 – 447 Hz)
• Easy powering from pedal boards
• New ¼" input makes it easy to go from practice to live performance

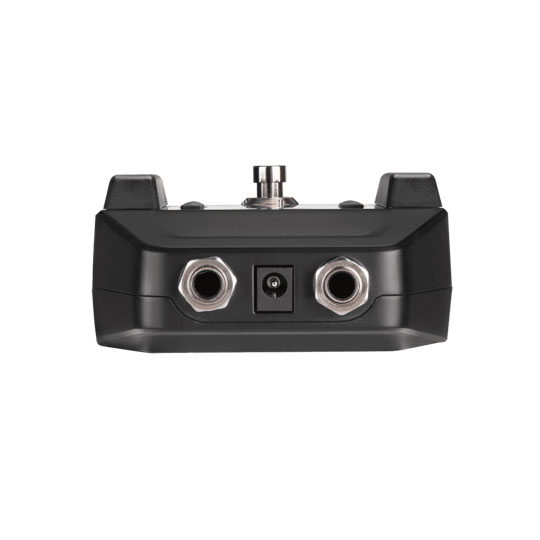

• Output ¼" connector for easy daisy-chain connection with other pedals
also included
• 1 PS24 Power Supply
GLX-D+ Dual Band Digital Wireless Featuring Nita Strauss | Shure
The Tech Spec
| Features | Specification | GLXD6+ | Dimensions (H x W x D): 5.4 x 3.7 x 1.89 in. (138 x 95 x 48 mm) Weight: 19.75 oz. (560 g) Housing: Aluminum alloy Power Requirements: 9 V - 15 V, 400mA (efficiency level VI power supply) Spurious Rejection: >35 dB, typical Gain Adjustment Range: -20 to 40 dB in 1 dB steps Configuration: 6.35 mm (1/4“) output Impedance balanced Impedance: 6.35 mm (1/4“) output 100Ω (50Ω, Unbalanced) Maximum Audio Output Level: 6.35 mm (1/4“) connector (into 3 kΩ load) +8.5 dBV Pin Assignments: 6.35 mm (1/4“) connector Tip=audio, Ring/Sleeve=ground Audio Input Modes: Tuner or True Bypass Impedance: 50Ω Antenna Type: Dual Band Internal Monopole Maximum Input Level: −20 dBm |
|---|
