Digital Wireless Guitar Pedal System
Shure - GLXD16+
(Frequency Band: Z4 - 2.4 / 5.8GHz)

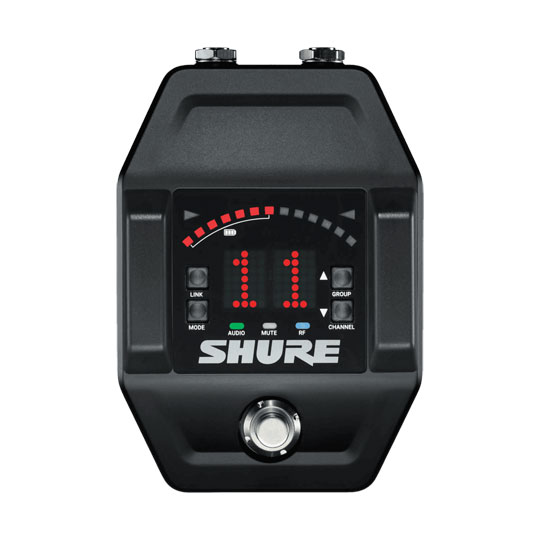

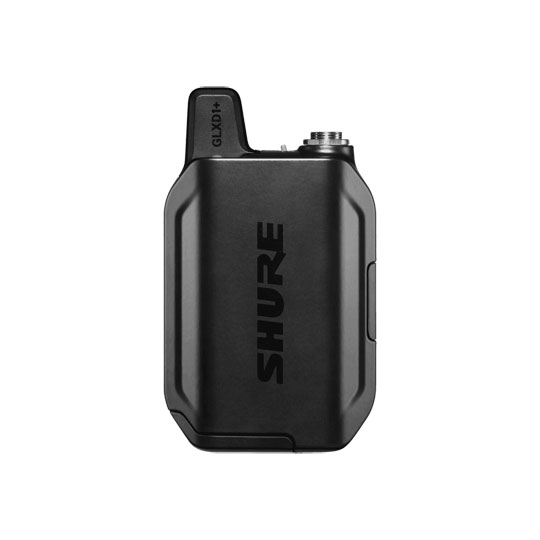

Ready-To-Go. Every time. Automatically. The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Wireless Bodypack transmitter, and the GLXD6+ Guitar Pedal receiver. Go wireless without compromising your tone or complicating your rig. The new GLXD6+ Dual Band Guitar Pedal receiver is engineered in a rugged metal design that can be completely integrated into your pedalboard (9V DC power).
The included tuner with a new ¼” guitar input makes it easy to go from practice to live performance, whether you choose to plug directly into the pedal or go wireless. Easilyswitch between two or more transmitters linked to a single receiver.
The new GLX-D+ Wireless Guitar Pedal System features the WA305 Premium Guitar Cable, the GLXD1+ Digital Bodypack, and the GLXD6+ Guitar Pedal. Go wireless without compromising your tone or complicating your rig.
also included
• 1 PS24 Power Supply
• 1 SB904 Lithium-Ion Rechargeable Battery
• 1 WA305 Premium Instrument Cable
• 1 SBC10-USBC wall charger
GLX-D+ Dual Band Digital Wireless Featuring Nita Strauss | Shure
The Tech Spec
| Features | Specification | Compatibility | With Frequency Manager: Up to 11 compatible systems in typical setting, and up to 16 under ideal conditions Without Frequency Manager: Up to 4 compatible systems in typical setting, and up to 8 under ideal conditions |
|---|---|
| System Operating Range | Indoors: Up to 30 m (100 ft.) typical, with a maximum of 60 m (200 ft.) under ideal conditions Outdoors: Up to 20 m (65 ft.) typical, with a maximum of 50 m (165 ft.) under ideal conditions |
| Transmit Mode | Shure Proprietary Digital - Dual Band (2.4 GHz and 5.8 GHz) |
| Audio Frequency Response | 20 Hz – 20 kHz Note: Dependent on microphone type |
| Dynamic Range | 120 dB, A-weighted |
| RF Sensitivity | -88 dBm, typical |
| Total Harmonic Distortion | 0.07%, typical |
| RF Output Power | 10 mW E.I.R.P. max |
| Operating Temperature Range | -18°C (0°F) to 57°C (135°F) Note: Battery characteristics may limit this range |
| Storage Temperature Range | -29°C (-20°F) to 74°C (165°F) |
| Battery Life | Up to 12 hours |
