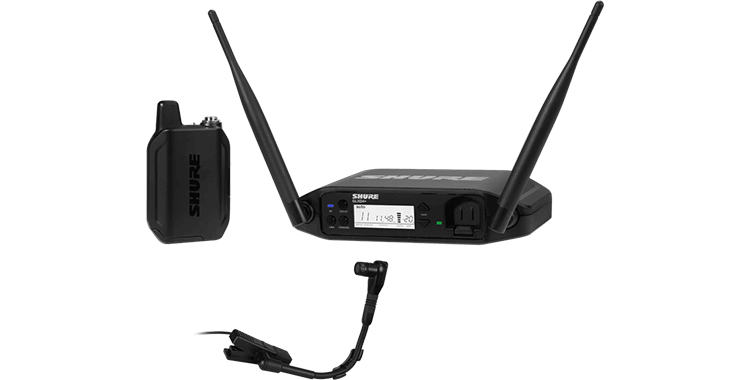

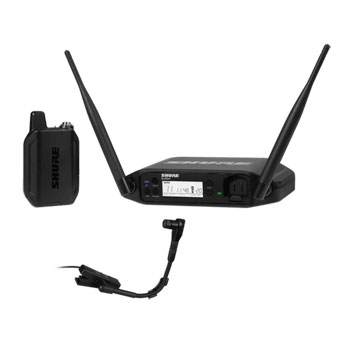

Shure - GLXD14+UK/B98-Z4 Wireless Microphone System (Instrument Microphone)
Shure - GLXD14+/B98, Digital Wireless Instrument System with BETA®98H Flexible Gooseneck Microphone
Digital Wireless Instrument System with BETA 98H Flexible Gooseneck Microphone
Shure - GLXD14+/B98
(Frequency Band: Z4 - 2.4 / 5.8GHz)
READY-TO-GO. EVERY TIME. AUTOMATICALLY.The new GLX-D+ Dual Band Wireless Instrument System features the precision-crafted BETA®98H/C flexible gooseneck microphone for brass, woodwind and percussion applications and the GLXD4+ tabletop receiver. The perfect combination of the automatic frequency management with the new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. Go wireless without complication.
at a glance
• 2.4 GHz and 5.8 GHz wireless operating frequency
• Dual-band technology doubles available bandwidth
• Includes bodypack transmitter and WB98H/C clip-on instrument mic
also included
• 1 PS43 Power Supply
• 1 SB904 Lithium-Ion Rechargeable Battery
• 1 Black Carrying Case
The Tech Spec

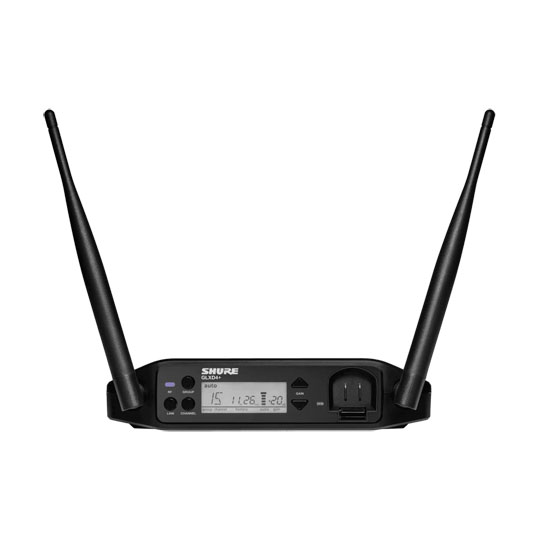

| Features | Specification | Receiver | Dimensions without antennas: 182.8 x 121.97 x 40.3 mm Weight: 0,310 kg Housing material: plastic Power supply: 4.5 V - 17 V, 600mA Noise suppression: >35 dB, typical Gain adjustment range: -20 to 40 dB in 1 dB steps Phantom power protection: yes connector: 6.35mm jack, XLR |
|---|---|

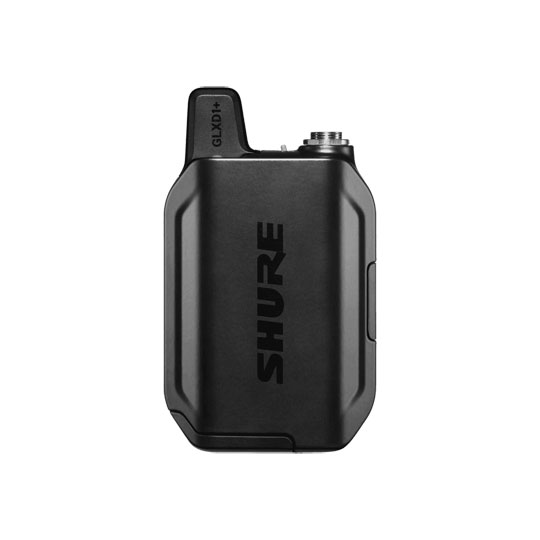

| Pocket transmitter | Dimensions without antenna: 115 x 66.94 x 28.51 mm Housing material: cast metal, black powder coated Weight without battery: 153.1 grams Power supply: 3.7 V rechargeable Li-Ion battery Connector: TA4M |

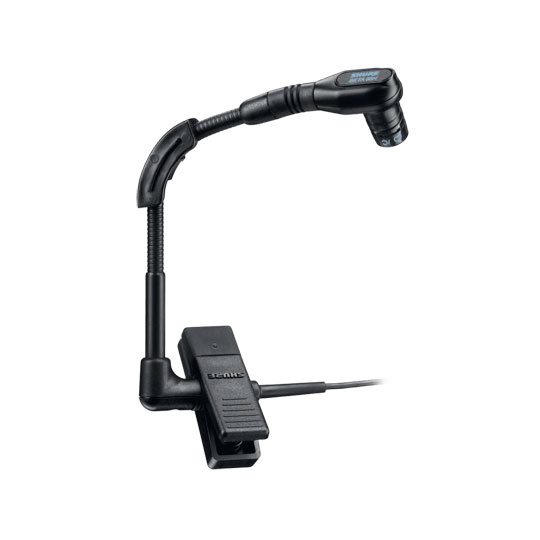

| Instrument microphone | Miniature instrument microphone with a permanently polarized condenser capsule and cardioid characteristic Integrated clip and gooseneck Snap-in foam windscreen Frequency response: 20 Hz - 20 kHz Output impedance: 150 Ohm No-load sensitivity: -56 dBV/Pa (1.6 mV) Maximum sound pressure: (at 20 Hz to 20 kHz, < 1 % harmonic distortion): 2.5 kO load: 163 dB SPL 1 kO load: 155 dB SPL Inherent noise (equivalent sound pressure): 31 dB(A) Power supply: 11 to 52 V Weight Microphone: 65 g / Preamplifier: 96 g/tr> |
