Sennheiser XSW 2-CI1-GB All-in-one Wireless System

Product Overview Amplify your tunes. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Metal receiver housing and rackmount kit included. Features • Robust instrument cable and compact bodypack transmitter
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

What's in the box?

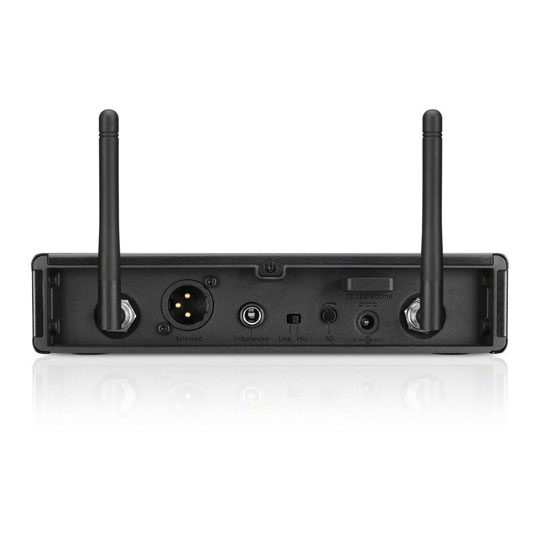

• 1 receiver EM-XSW 2

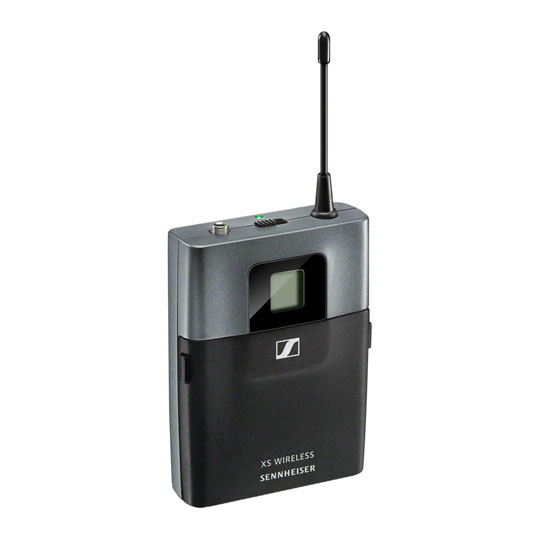

• 1 bodypack transmitter SK-XSW
• 1 instrument cable Cl1
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
• User manual

Specifications

Receiver
Dimensions: approx. 200 x 42 x 127 mm
Weight: approx. 680g
Power supply: 12 V DC nom. / 300 mA
Housing: Metal
AF frequency response: 50 to 16,000 Hz (-3 dB)

Transmitter
Dimensions: approx. 71 x 96 x 28 mm
Weight: approx. 95g
Operating time: approx. 10 hrs
Power supply: 2 AA size batteries, 1.5 V
Housing: robust ABS
AF frequency response: 50 to 16,000 Hz
Frequency response: 50 to 16,000 Hz (-3 dB)
THD, total harmonic distortion: ? 0.9%
Pick-up pattern: cardioid
Signal-to-noise ratio: ? 103 dBA
RF output power: 10 mW
Switching bandwidth up to: 24 MHz
Modulation wideband: FM
Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Diversity reception: True Diversity
Frequency: 8 frequency banks, each with up to 12 factory-preset channels
Frequency range: A: 548-572 MHz, GB: 606-630 MHz, B: 614-638 MHz, C: 766-790 MHz, D: 794-806 MHz, E: 821-832 MHz, 863-865 MHz, K: 925-937.5 MHz
Sensitivity: < 3 ?V at 52 dB(A)rms S/N
Squelch: switchable from 3 dB?V to 28 dB?V (via Pilot Tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 40 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: -20°C to +70°C
Receiver Principle: double superheterodyne
