Sennheiser XSW 2-CI1-E All-in-one Wireless System

Sennheiser XSW 2-CI1-E All-in-one Wireless System for Guitar & Bass, Rackmountable, 12 Channels

Thumbnail 1 : Sennheiser XSW 2-CI1-E All-in-one Wireless System Thumbnail 2 : Sennheiser XSW 2-CI1-E All-in-one Wireless System Thumbnail 3 : Sennheiser XSW 2-CI1-E All-in-one Wireless System Thumbnail 4 : Sennheiser XSW 2-CI1-E All-in-one Wireless System
Scan code: LN97553 Manufacturer code: 507140
£260.00
Free Delivery
From £12.48 / month (APR 14.9%)
Monthly Payment: £45.12
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £260.00
Total inc. interest: £270.70
Monthly Payment: £23.34
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £260.00
Total inc. interest: £280.10
Monthly Payment: £16.10
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £260.00
Total inc. interest: £289.68
Monthly Payment: £12.48
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £260.00
Total inc. interest: £299.51
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 19.9% and may be even lower.

Representative Example:

Purchase Rate: 19.9% p.a. (variable)

Representative: 19.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
With a 10% deposit from just £6.49 / month (APR 15.9%)
Delivery Options
  • By DPD On 20th Aug 2019 to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout

    Have your parcel delivered by DPD to your specified address. Receive SMS with one-hour delivery window

    Weekend, timed and European delivery options are available at checkout
  • Collect instore Collect from our Bolton store, BL6 6PE | Free

    Order online, collect from our Bolton store (25-28 Enterprise Park, Middlebrook, Horwich, Bolton, BL6 6PE)

  • UPS and DPD Pickup Pickup from local convenience store | £4.79

    Collect your parcel from your newsagents, petrol stations and convenience stores

Services
  • SCANPROTECT Protect against installation damage for 28 days. More info

    ScanProtect is an enhanced warranty specifically designed and offered by Scan to reduce the risk of any mishap or damage to components during installation.

    Our aim with ScanProtect is to encourage our customers to upgrade or build their own PC confidently. For a small additional fee our customers are provided with complete peace of mind.

Product Overview Amplify your tunes. High flexibility for those willing to go a step further. XS WIRELESS 2 grows with your demands by offering an intuitive LCD display for more manual options and 12 compatible channels in a stable UHF band, withstanding tougher live stage conditions.

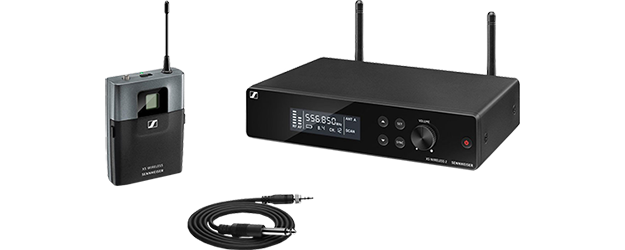

The XS WIRELESS 2 INSTRUMENT SET is an easy to use all-in- one wireless system for guitarists and bassists, excellent for live sound. The set includes a stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Metal receiver housing and rackmount kit included. Features • Robust instrument cable and compact bodypack transmitter
• True diversity receiver with metal housing
• External antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Fully tunable over a wide range of UHF frequencies
• Rackmount kit included
• Up to 12 compatible channels

What's in the box?
• 1 receiver EM-XSW 2
• 1 bodypack transmitter SK-XSW
• 1 instrument cable Cl1
• 1 power supply NT 12-5 CW
• 2 AA batteries
• 1 rackmount kit
• 1 pouch
• User manual

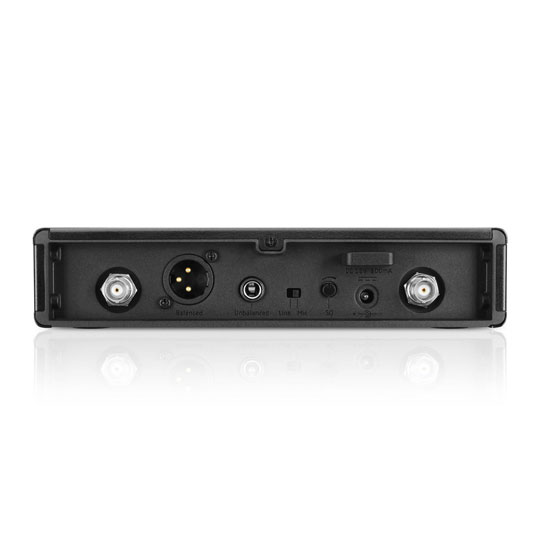

Receiver
• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 680g
• Power supply: 12 V DC nom. / 300 mA
• Housing: Metal
• AF frequency response: 50 to 16,000 Hz (-3 dB)

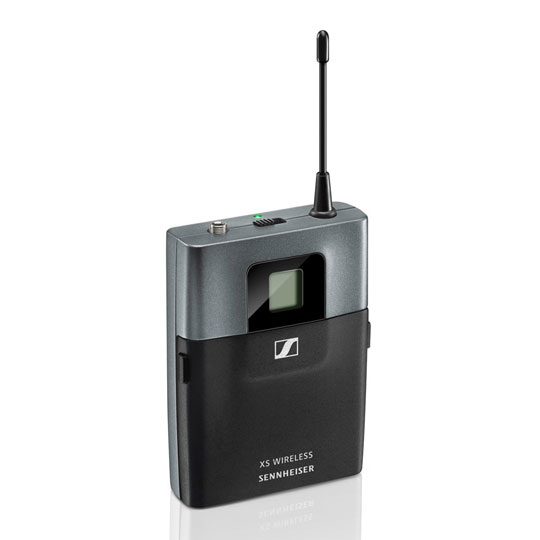

Transmitter
• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• Housing: robust ABS
• AF frequency response: 50 to 16,000 Hz
• Frequency response: 50 to 16,000 Hz (-3 dB)
• THD, total harmonic distortion: ? 0.9%
• Pick-up pattern: cardioid
• Signal-to-noise ratio: ? 103 dBA
• RF output power: 10 mW
• Switching bandwidth up to: 24 MHz
• Modulation wideband: FM
• Output voltage: 1/4" (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Diversity reception: True Diversity
• Frequency: 8 frequency banks, each with up to 12 factory-preset channels
• Frequency range: E: 821-832 MHz, 863-865 MHz
• Sensitivity: < 3 µV at 52 dB(A)rms S/N
• Squelch: switchable from 3 dB?V to 28 dB?V (via Pilot Tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 40 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range operation: 0°C to +40°C, storage: -20°C to +70°C
• Receiver Principle: double superheterodyne
Specifications
Type
Polar Pattern (Direction)
Impedance
Sensitivity
Frequency Response
Wired / Wireless
Connectors
Weight
Including Shock Mount No
Including Pop Shield No
Including Mic Clip No
Powered By
Additional Information
Scan Code LN97553
Model Number 507140
GTIN 4044155214048
