Sennheiser XSW 1-CI1-GB Wireless System for Guitar & Bass
Sennheiser XSW 1-CI1-GB Wireless System for Guitar & Bass, Rackmountable, 10 Channels
Scan code:
LN86584
Manufacturer code:
506999
£229.00Item currently awaiting an ETA
Pre order
From
£11.00
/ month (APR 14.9%)
With a 10% deposit from just
£5.72
/ month (APR 15.9%)
Delivery Options
- By DPD to your specified address. | Free Receive SMS with one-hour delivery window Weekend, timed and European delivery options are available at checkout
- Collect instore Collect from our Bolton store, BL6 6PE | Free
- UPS and DPD Pickup Pickup from local convenience store | £4.79
Product Overview
Amplify your tunes. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 INSTRUMENT SET is an easy to use all-inone wireless system for guitarists and bassists, excellent for live sound. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a robust instrument cable. Features
• Compact bodypack transmitter, rugged instrument cable
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels
What's in the box?
• 1 receiver EM-XSW 1
• 1 bodypack transmitter SK-XSW
• 1 instrument cable Cl1
• 1 power supply NT 12-5 CW
• 2 AA batteries
Specificiations
Dimensions:
- Receiver: approx. 200 x 42 x 127 mm
- Bodypack transmitter: approx. 71 x 96 x 28 mm
THD, total harmonic distortion: ? 0.9%
Weight: approx. 340g (receiver), approx. 95g (transmitter)
Signal-to-noise ratio ? 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation Wideband FM
Power supply:
- Receiver: 12 V DC nom. / 300 mA
- Transmitter: 2 AA size batteries, 1.5 V
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: Rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range:
- A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
Sensitivity: < 3 ?V at 52 dB(A)rms S/N
SPL for peak deviation: 130 dB
Squelch: adjustable from 3 dB?V to 28 dB?V (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle double: superheterodyne
Diversity principle: Antenna switching diversity via internal antennas
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels
What's in the box?
• 1 receiver EM-XSW 1
• 1 bodypack transmitter SK-XSW
• 1 instrument cable Cl1
• 1 power supply NT 12-5 CW
• 2 AA batteries
Specificiations
Dimensions:
- Receiver: approx. 200 x 42 x 127 mm
- Bodypack transmitter: approx. 71 x 96 x 28 mm
THD, total harmonic distortion: ? 0.9%
Weight: approx. 340g (receiver), approx. 95g (transmitter)
Signal-to-noise ratio ? 103 dBA
RF output power 10 mW
Switching bandwidth up to 24 MHz
Operating time approx. 10 hrs
Modulation Wideband FM
Power supply:
- Receiver: 12 V DC nom. / 300 mA
- Transmitter: 2 AA size batteries, 1.5 V
Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: Rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range:
- A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
Sensitivity: < 3 ?V at 52 dB(A)rms S/N
SPL for peak deviation: 130 dB
Squelch: adjustable from 3 dB?V to 28 dB?V (combined with pilot tone)
Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
Input sensitivity: 1.5 mV / Pa
AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
Audio adjustment range: 45 dB, adjustable in 5-dB steps
Line / Mic level: 20 dB, switchable
Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
Receiver Principle double: superheterodyne
Diversity principle: Antenna switching diversity via internal antennas

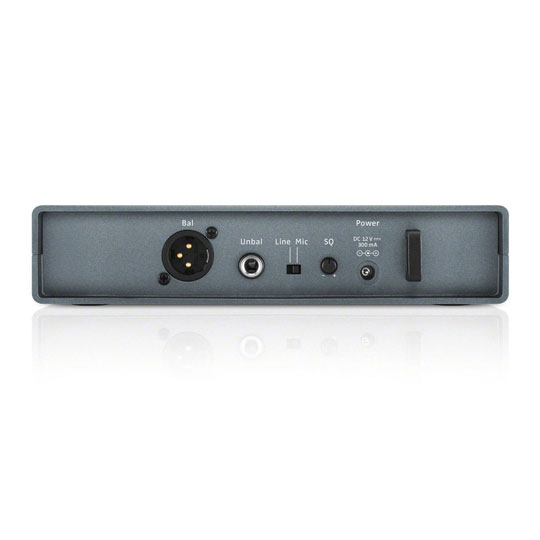

Sennheiser XSW 1-CI1-GB Wireless System for Guitar & Bass
