Sennheiser XSW 1-908-GB Wireless Microphone System

Product Overview A powerful performance. Go for XS WIRLESS 1 and rely on a solid wireless transmission with up to 10 compatible channels in a stable UHF band. The XS WIRELESS 1 BRASS SET is an easy to use all-in-one wireless system, especially designed to provide a powerful live sound for brass instruments. The set includes an intuitive stationary receiver for quick set-up and hassle-free handling, as well as a compact bodypack transmitter and a rugged condenser gooseneck microphone. Features • Versatile gooseneck microphone with outstanding sound reproduction from the renowned evolution microphone series
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

What's In The Box

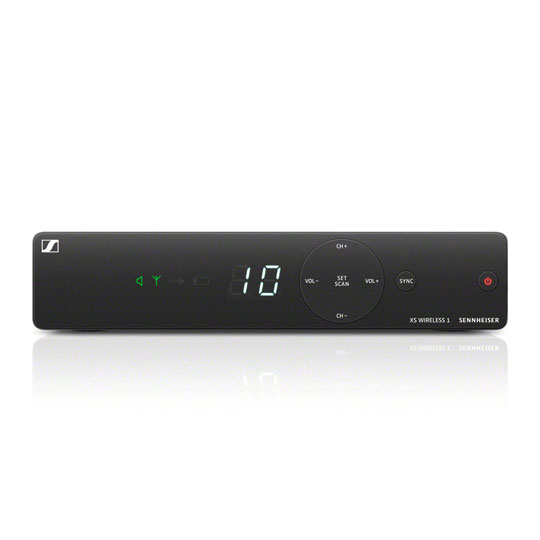

• 1 receiver EM-XSW 1
• 1 gooseneck microphone e908T

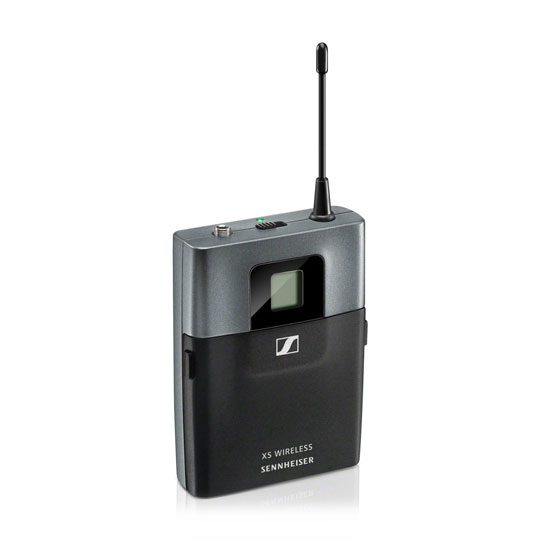

• 1 bodypack transmitter SK-XSW
• 1 power supply NT 12-5 CW
• 2 AA batteries

Technical Specifications

Recievers
• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 340g
• Power supply: Receiver: 12 V DC nom. / 300 mA
• AF frequency response: Receiver: 50 to 16,000 Hz (–3 dB)

Transmitter
• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Power supply: Transmitter: 2 AA size batteries, 1.5 V
• Adjustment Range: Transmitter 0 to -30 dB, adjustable in 10 dB steps

Microphone
• Microphone: condenser
• THD, total harmonic distortion: = 0.9%
• Pick-up pattern: cardioid
• Signal-to-noise ratio: = 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
Operating time: approx. 10 hrs
Modulation: wideband FM
Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
Housing: rugged ABS housing
Frequency: 8 frequency banks, each with up to 10 factory-preset channels
Frequency range:
- A: 548-572 MHz, GB: 606-630 MHz
- B: 614-638 MHz
- C: 766-790 MHz
- D: 794-806 MHz
- E: 821-832 MHz, 863-865 MHz
- K: 925-937.5 MHz
• Sensitivity: < 3 µV at 52 dB(A)rms S/N
• SPL for peak deviation: 147 dB
• Squelch: adjustable from 3 dBµV to 28 dBµV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range: operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: double superheterodyne
• Diversity principle: antenna switching diversity via internal antennas
