Digital Bodypack Transmitter
Sennheiser - EW-D SK
(S1-7)
THE MOST VERSATILE VIDEOMIC yet!Versatile and feature-rich digital wireless system for those who sing, speak or play instruments that allows for seamless product pairing and management via the EW-D Smart Assist App. This bodypack transmitter is compatible with a wide range of Sennheiser headset microphones and clip-on/lavalier microphones.
Raising the barEvolution Wireless Digital breaks the boundaries by providing more dynamic range than any wireless system currently on the market. Automatically securing the most reliable signal in a matter of seconds and scalable up 90 channels thanks to 56 MHz of tuning bandwidth, it’s easy to see why this wireless system is in a class of its own.
< 300 mACurrent Consumption
606.2 - 662 MHzFrequency Range
20 Hz - 20 kHzAudio Frequency Response
what's in the box?
• EW-D SK bodypack transmitter
• Manufacturer declaration sheet
• Safety guide
• Quick guide
• Pouch
Why Choose Sennheiser's EW-D SK?
Equidistant SpacingEvolution Wireless Digital features an equidistant tuning grid previously only found in our flagship Digital 6000 and Digital 9000 wireless systems. Quality components with exceptional linearity eliminate intermodulation between EW-D transmitters, allowing frequencies to be equally spaced every 600 kHz alongside each other.

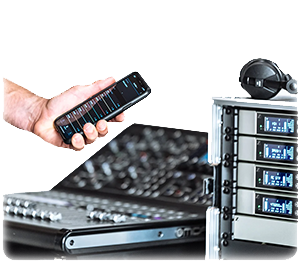

An engineer in your pocketThe power of Bluetooth Low Energy puts full control right in the palm of your hand with the Sennheiser Smart Assist app. Take advantage of a remarkably fast automated setup, mobile access to every system setting and the added benefit of remote monitoring, all from the convenience of your Android or iOS device. Save time, save energy and perform with confidence.
The Tech Spec
| Features | Specification | Frequency range | 606.2 - 662 MHz |
|---|---|
| Dimensions | 63 x 80 x 20 mm (without antenna) |
| THD, total harmonic distortion | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
| Weight | approx. 120 g |
| Operating temperature | -10 °C - +55 °C (14 °F - 131 °F) |
| Operating relative humidity | 5 - 95 % (non-condensing) |
| Audio frequency response | 20 Hz - 20 kHz (-3 dB) @ 3 dBfs |
| Input voltage range | 2.0 - 4.35 V |
| Current consumption | < 300 mA |
| Power supply | 2 AA batteries 1.5 V (alkaline manganese) or BA 70 rechargeable battery pack |
| Transmission power | Audio link: 10 mW, ERP (Range Y1-3): 12 mW ERP, BLE: max. 10 mW EIRP |
