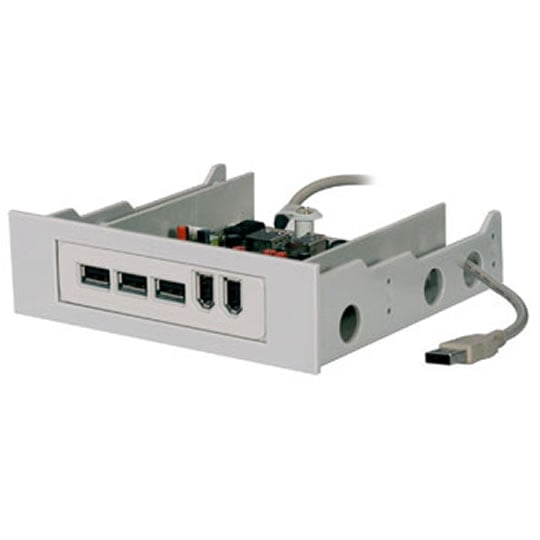

Scan Combo 4xUSB2 & x3 Firewire 1394a Internal HUB 3.5" and 5.25" Slot

Double H
Scan code: LN10239 Manufacturer code: DH-UFH-D45 Request call
£10.99
In stock
Buy Now, Pay Later with a 10% deposit. Or spread the cost of your finance over 24-48 months.
Mid Range
Delivery options £5.48 By DPD On 7th Dec 2016 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. £4.79 Collect from local shops UPS and DPD Pickup Collect your parcel from your newsagents, petrol stations and convenience stores. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout Scansure protection Scansure Protect against installation damage for 28 days.More
Product Overview USB 2.0 / IEEE 1394 Combo Hub

Additional 1* USB port and 1* IEEE1394 port on board for Pc optional.
Additional 3 * USB ports and 2 * IEEE1394 ports in the front bay of your computer by occupying a 3.5" floppy slot or a 5.25" expansion slot .


Specifications
IEEE 1394a

400 Mbps data transfer rate for IEEE 1394 (FireWire)

Compliant with IEEE 1394 OHCI specification with DMA engine support high performance serial bus (Data rate :100/200/400 Mbps).

USB 2.0

480 Mbps data transfer rate for USB 2.0

All downstream facing ports can handle high-speed (480 Mbps), full speed (12 Mbps) and low speed (1.5 Mbps) transactions.

Compliant with Universal Serial Bus specification revision 2.0 (Data rate : 1.5/12/480 Mbps).

Compliant with Open Host Controller Interface Specification USB Rev. 1.0a.

Compliant with Enhanced Host Controller Interface Specification for USB Rev. 0.95

Plug & Play and Hot Swapping functions.

Main Function
IEEE 1394a

Compliant with IEEE 1394 - 1995 and compatible with 1394a.

Capable of connecting up to 63 devices on a computer at the same time.

Supports data transfer rate of 100/200/400Mbps

USB 2.0

3 external and 1 Internal auto speed selectable USB Type A downstream ports.

Connects up to a maximum of 127 USB devices through cascading multiple hubs.

High-speed or Full-speed packet protocol sequencer for Endpoint 0/1One Transaction Translator per Hub and supports 4 concurrent non-periodic transactions.

Support Hot swap as well as Plug & Play functions.

Operation Systems Requirement

Windows 98SE/2000/ME/XP
Mac According to PCI Card support it.
Features IEEE 1394a
• 400 Mbps data transfer rate for IEEE 1394 (FireWire).
• Compliant with IEEE 1394 OHCI specification with DMA engine support high performance serial bus (Data rate:
100/200/400 Mbps).
USB 2.0
• 480 Mbps data transfer rate for USB 2.0
• All downstream facing ports can handle high-speed (480 Mbps), full speed (12 Mbps) and low speed (1.5 Mbps)
transactions.
• Compliant with Universal Serial Bus specification revision 2.0 (Data rate: 1.5/12/480 Mbps).
• Compliant with Open Host Controller Interface Specification USB Rev. 1.0a.
• Compliant with Enhanced Host Controller Interface Specification for USB Rev. 0.95
• Plug & Play and Hot Swapping functions.
Specifications
Specifications
Interface USB 2.0/Firewire
Connectivity
  • 3 x Firewire
  • 4 x USB 2.0
Warranty

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

Details
Duration:
12 months
Type:
Return to base
DOA Period:
28 days
RTB Period:
12 months
Manufacturer Contact Details
Manufacturer:
Scan
Telephone:
0871 472 4747

Additional Notes:
1 year warranty return to Scan Computers;
