Scan 3XS T100 Server, Intel Xeon E3, tower

Scan 3XS T100 Server, Intel Xeon E3 1225 v6, 16GB RAM, 1TB HDD, tower

Scan code: LN76314 Manufacturer code: 3XST100 Request call
Pay on Scan Finance with a 10% deposit from just £28.72 / month (APR 15.9%)
From £55.20 / month (APR 14.9%)
Monthly Payment: £199.55
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,149.98
Total inc. interest: £1,197.30
Monthly Payment: £103.24
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,149.98
Total inc. interest: £1,238.83
Monthly Payment: £71.19
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,149.98
Total inc. interest: £1,281.31
Monthly Payment: £55.20
Instalment Rate: 14.9% p.a. (fixed)
Cost of purchase: £1,149.98
Total inc. interest: £1,324.74
If you are approved for a credit limit with PayPal Credit and use it for future purchases, the APR for those purchases won't be more than 17.9% and may be even lower.

Representative Example:

Purchase Rate: 17.9% p.a. (variable)

Representative: 17.9% APR (variable)

Assumed Credit Limit: £1,200

Subject to status. Terms and Conditions apply.
3xs Approved Entry Level
Delivery options £11.50 By DPD On 21st Feb 2018 DPD Delivered to your specified address. Receive SMS with one-hour delivery window. Free Collect Instore Q-Collect Place your order online and collect from our Bolton store with Q-Collect. Weekend, timed and European delivery options are available at checkout ScanProtect protection ScanProtect Protect against installation damage for 28 days.More

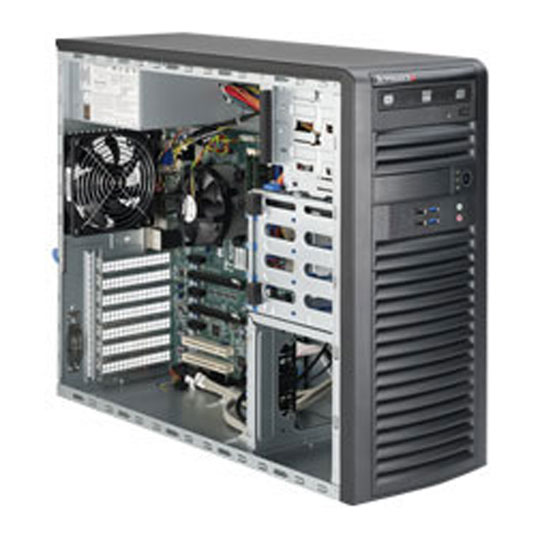

The T100 is an entry-level mid tower server perfect for small businesses to develop their own infrastructure at an affordable price. The default specification includes a powerful quad-core Intel Xeon E3 1225 v6 CPU running at 3.3GHz, and 16GB of 2133MHz ECC DDR4 memory and an enterprise grade Western Digital 1TB Gold hard disk. The T100 supports a further three drives, allowing you to expand the storage as your business grows without replacing the entire server.

The T100 is pre-built and ready to ship for next-day delivery!


Component Description
Chassis Mid Tower (192 x 424 x 525.3mm)

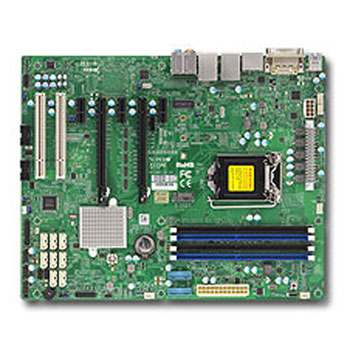

Motherboard Supermicro 5039A-IL
Chipset Intel C236
Processor Intel Xeon E5 1225 v6 ‘Kaby Lake’ 3.3GHz Quad Core
Memory 16GB (2 x 8GB) 2133MHz ECC DDR4
System Drive 1TB Western Digital Gold HDD
Free Drive Bays 3 x 3.5in, 2 x 5.25in
Networking 2 x Intel I210AT
Power Supply 500W – 80PLUS Bronze
Graphics Intel HD Graphics P630
Warranty 3 Year Premium Warranty - 1st Year Onsite, 2nd & 3rd Year Return to Base (inc Parts & Labour)


Professionally Built Server's vs Self-Built

Anyone can build a server, so what really makes the difference between any old server and a 3XS server? For starters, our team has been designing and building servers for more than 20 years, so we have a huge amount of experience in building highly reliable servers that deliver the most performance for your budget. These are the benefits you receive when buying a professionally built 3XS server versus building a server yourself.


Once we have processed your order you can use our web portal to track and trace the status of your 3XS system as it is built and tested by our engineers. You can see check out how fast your system is, as we push it through a rigorous set of performance and stability benchmarks.


Building a server only takes a few hours, but installing all the software and making sure that everything is configured properly and that your software runs stably takes up a huge amount of time. By ordering a 3XS system our engineers take this painful process away, as all our systems undergo a strenuous Quality Control procedure which includes updating Windows, installing the latest drivers and motherboard BIOS. All systems receive an additional 24 hour burn-in test to ensure stability.


Unfortunately server components do occasionally fail. However, with a professionally built Scan 3XS server you’re no longer alone. Our technical support team is available 7 days a week, from 9am to 10pm Mon - Fri, 10am to 6pm on Saturdays and 10am to 4pm on Sundays. Click here for more info on how to get technical support for your 3XS system.

If our support team is unable to fix your system remotely and it’s still under warranty we’ll either send out an engineer to visit your home or office or repair it or have it repaired in our state of the art factory in Lancashire.


Sometimes you just need a system right now. Maybe your existing system has kicked the bucket or you’ve found that your old workhorse can’t hope with the latest game or application you just bought. F-series servers are pre-built and tested in our factory, so can be collected same day or delivered next-day to your home or office.


All Scan 3XS Enterprise Series solutions are covered by our Premium 3 Year Warranty. This means that if your system develops a fault in its first year we can send an engineer to your office to repair it. In the remaining two years of the warranty we'll still repair or replace any faulty parts, but do this from our state of the art factory in Lancashire. Click here for more info on how to get technical support for your 3XS system.

Form Factor Mid Tower
CPU Included Yes
CPU Type Intel Xeon
Core Quad Core
No. of Threads 4
CPU Model E3 1225 v5
Clock Speed 3.3 GHz
Burst Frequency 3.7 GHz
CPU Cooler
CPU Socket 1151
Chipset Intel C236
Motherboard Form Factor
Motherboard Model
Memory Type DDR4 ECC
Memory Included Yes
Memory Capacity Included
Memory Channels
Memory Type (ECC) ECC
Memory Type (R/U) UDIMM (Unbuffered)
Memory Speed (Mhz) DDR4 - 2133
Max. Memory Capacity 64GB (4x16GB)
On-board/Integrated Graphics Yes
Processor/Motherboard Graphics Chip Intel HD Graphics P630
Discrete GPU No
Discrete GPU Chipset
GPU Cores/Streams/Execution Units
GPU Tensor Cores N/A
Base GPU Speed N/A
Max. GPU Speed N/A
GPU Memory Size
GPU Memory Type
GPU Memory Clock
GPU Memory Bus
Discrete GPU Cooler
SLI Multi-GPU Configuration No
Max. GPU Resolution
Graphics Interface On-board
Expansion Slots
  • 2 x M.2 PCIe/SATA
  • 4 x PCI (32 bit)
  • 1 x PCIe 3.0 x16
  • 1 x PCIe 3.0 x16 (x8 Bandwidth)
  • 1 x PCIe 3.0 x8
  • 1 x PCIe 3.0 x8 (x4 Bandwidth)
Storage Drive Included Yes
Storage Drive Type 1x SATA HDD
Storage Drive Capacity 1000
Optical Drive None - Includes Optical Drive Caddy/Bay
Drive Bays
  • 1 x 2.5" Internal
  • 3 x 3.5" Internal
  • 2 x 5.25" External
Internal I/O N/A
Network Interface Type
Network Chip/Modules
Front Panel
  • 2 x USB 2.0
  • 2 x USB 3.0
Back Panel
  • 2 x 10/100/1000 (LAN)
  • 1 x D-Sub (VGA) Out
  • 1 x PS/2 Keyboard/Mouse Combo
  • 1 x Serial (COM)
  • 2 x USB 2.0
  • 2 x USB 3.0
Cooling Fans
Keyboard / Mouse Included No
Remote Control Included No
VESA Mountable No
PSU Wattage 500 W
PSU Efficiency Rating
PSU Redundancy N/A
Operating System Included No
Operating System N/A
Colour Black
Dimensions 193 x 424 x 525.3 (mm WxHxD)

Please note your statutory rights are not affected.

For further information regarding Scan's warranty procedure please see our terms and conditions

36 months
Return to base
DOA Period:
28 days
RTB Period:
36 months
